Installation Tests
Each row in the tabulated list of potentiostat groups contains a potentiostat
and a number of optional modules. The tabulated list will depend on the
groups installed in your system, and all groups that are coloured green will be
suitable for use with the experiment. Any groups in which the
Group Capability
Requirements
which appear in a darker shade of red, the group may not be suitable for use
with the experiment.

4. Connect the potentiostat to the ModuLab Test Cell as shown in the cell
connection diagram, using the appropriate colour coded cables, if you have
not done so already. However, it is not necessary to connect the auxiliary
channels.
5. Click
This defines the general configuration of the experiment, with the
Group to use
users, regardless of the installed hardware.
3-8
ModuLab XM ECS Electrochemical System: Installation Guide
does not match or exceed the
will turn red, and depending on the non-matching components
Details of how to use equipment variants for experiments are described
in the User Guide.

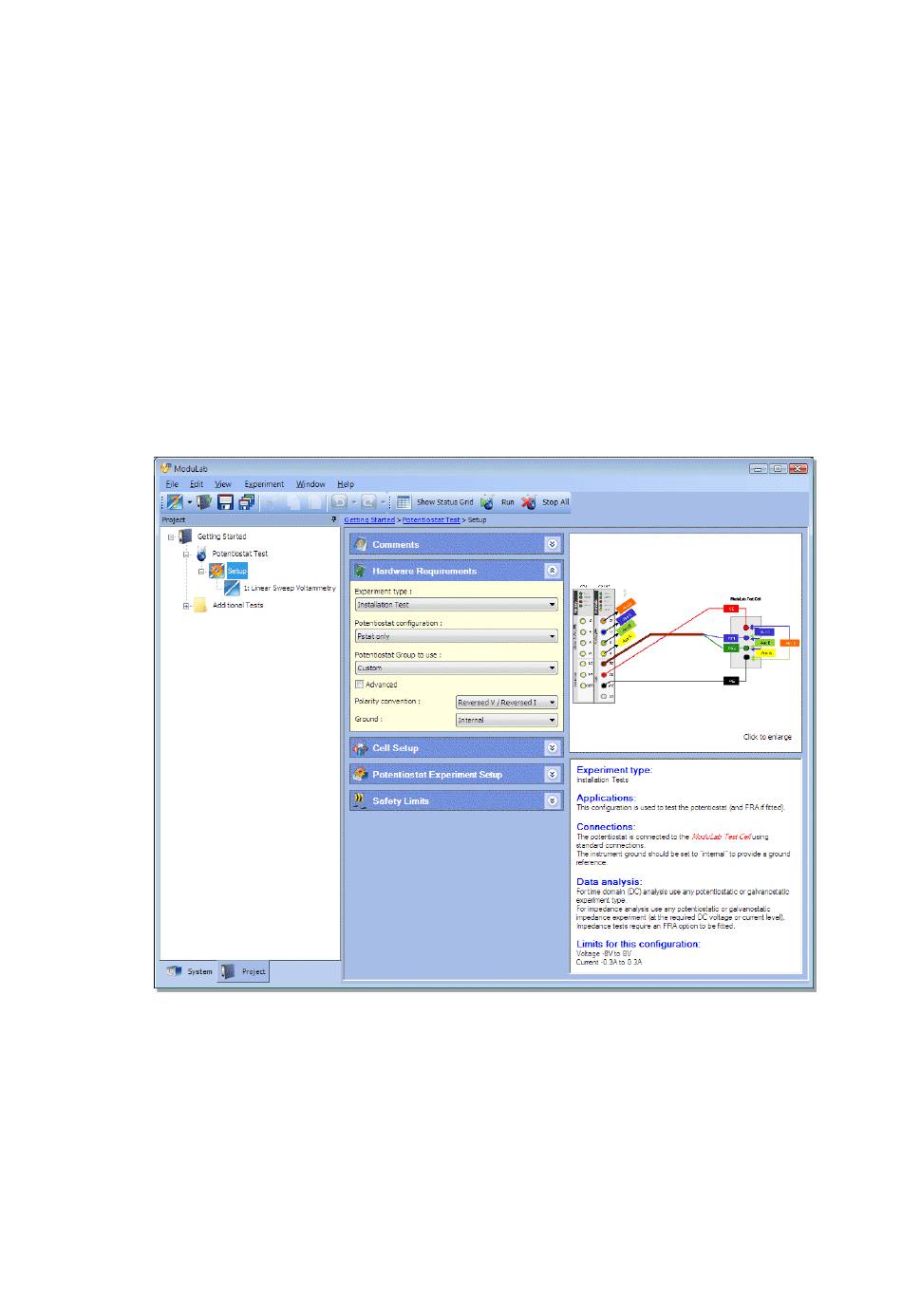

Setup to display the experiment setup as follows:
field set to Custom, making the project transportable between
Potentiostat
Experiment Hardware
Potentiostat
