Assembling the System
2.9.1.3 Multiple Chasses, Multiple PCs, Network Control
If the network has sufficient data capacity, it can be connected to multiple
ModuLab XM chasses and they can be controlled from any PC on the network,
provided that each potentiostat group is under the control of a single PC at any

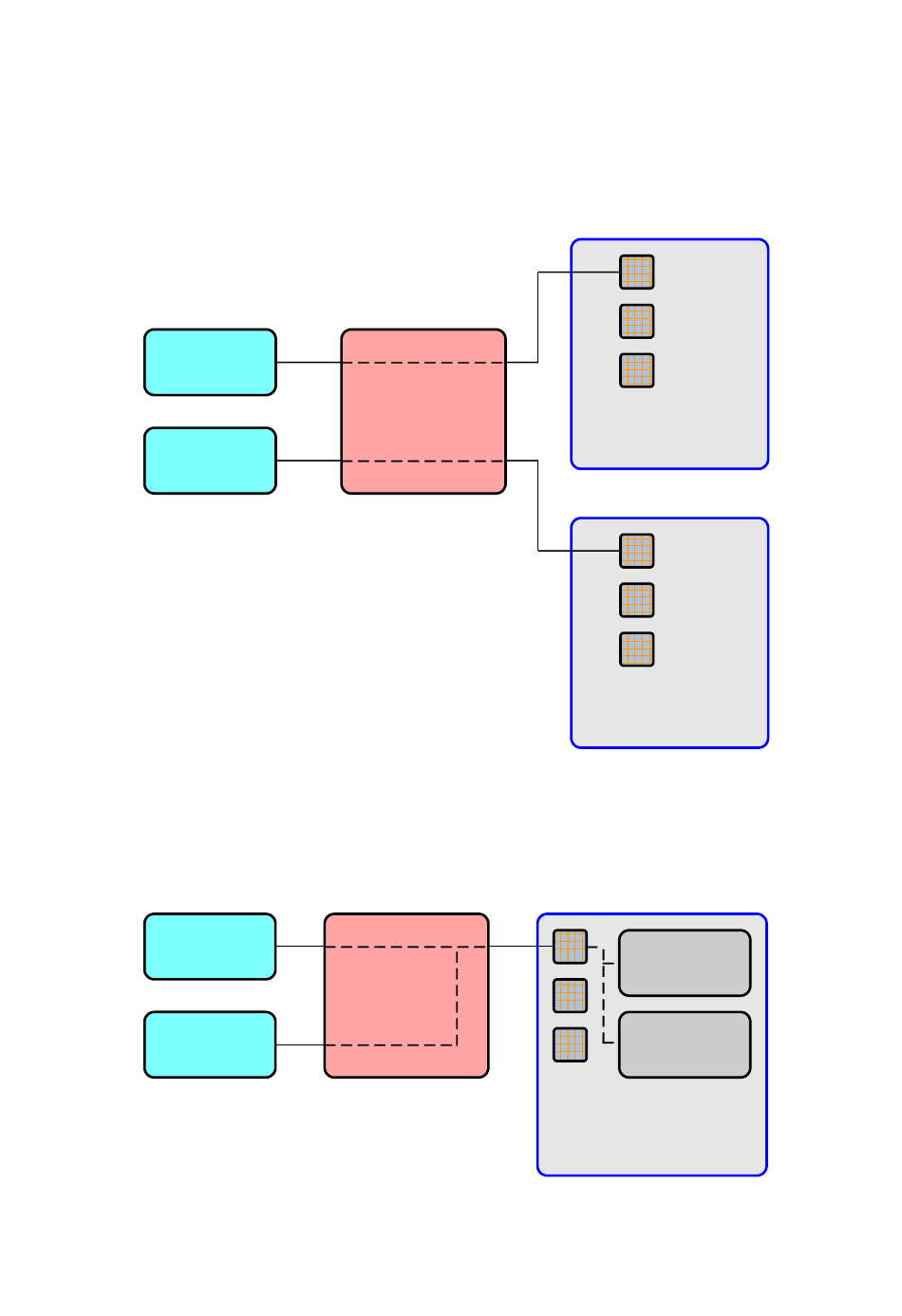

given time. The following is an example of two ModuLab XM chasses, each with a
dedicated PC on the network, so that ModuLab XM 1 is controlled by PC 1, and
ModuLab XM 2 by PC 2.
PC 1
PC 2
Figure 2-9
2.9.1.4 Single Chassis, Multiple PCs, Network Control
It is possible for multiple PCs on a network to control the same ModuLab XM
chassis, provided they are assigned to different potentiostat groups. In the
following example, PC 1 is assigned to Group 1, and PC 2 to Group 2.
PC 1
PC 2
Figure 2-10
2-24
ModuLab XM ECS Electrochemical System: Installation Guide
Network
Multiple PCs connected to ModuLab XM Chasses through network
Network
Multiple PCs assigned to potentiostat groups in a chassis
Network
Uplink
PC
Expansion
ModuLab
Chassis 1
Network
Uplink
PC
Expansion
ModuLab
Chassis 2
Group 1
Group 2
ModuLab
Chassis
