ModuLab XM ECS Electrochemical System: Installation Guide
4.1.2

Chasses connected through a switch

Multiple chasses can be connected together through a switch, using their Network
Uplink ports as shown in Figure 4-2. This has the advantage of obtaining better
data transfer rates, and avoiding the bottleneck that may occur if large volumes of
data are passed between chasses connected in series.
Physical Connections
Equivalent Schematic
PC
21006002_AD 11/06/14
Model No.
Ethernet 10/100 Base -T
Serial No.
Network
Uplink
Product Mod Strike
PC
Expansion
T
R
Network
Uplink port
Hub
T R
Chassis 1
Slot 1

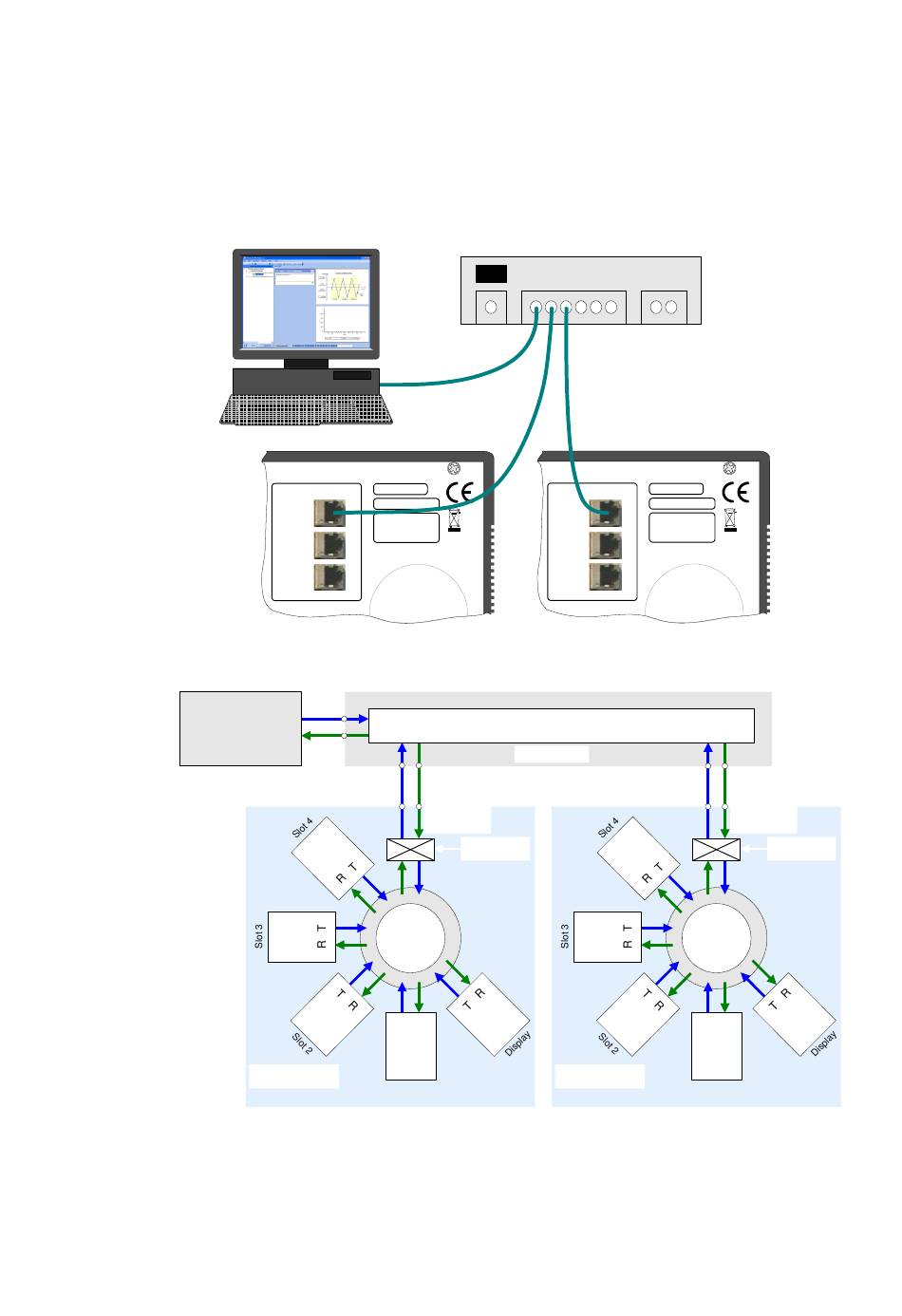

Figure 4-2 Chasses connected through a switch
Expanding the ModuLab XM System
Switch
All Ethernet connections are made with RJ-45
straight-through cables.
Ethernet 10/100 Base -T
Network
Uplink
PC
Expansion
Switch
Built-in
cross-over
Chassis 2
Model No.
Serial No.
Product Mod Strike
Network
Uplink port
Built-in
cross-over
Hub
T R
Slot 1
4-3
