ModuLab XM ECS Electrochemical System: Installation Guide
2.9.1.1 Single Chassis, Single Local PC Control, ModuLab XM Network
Access

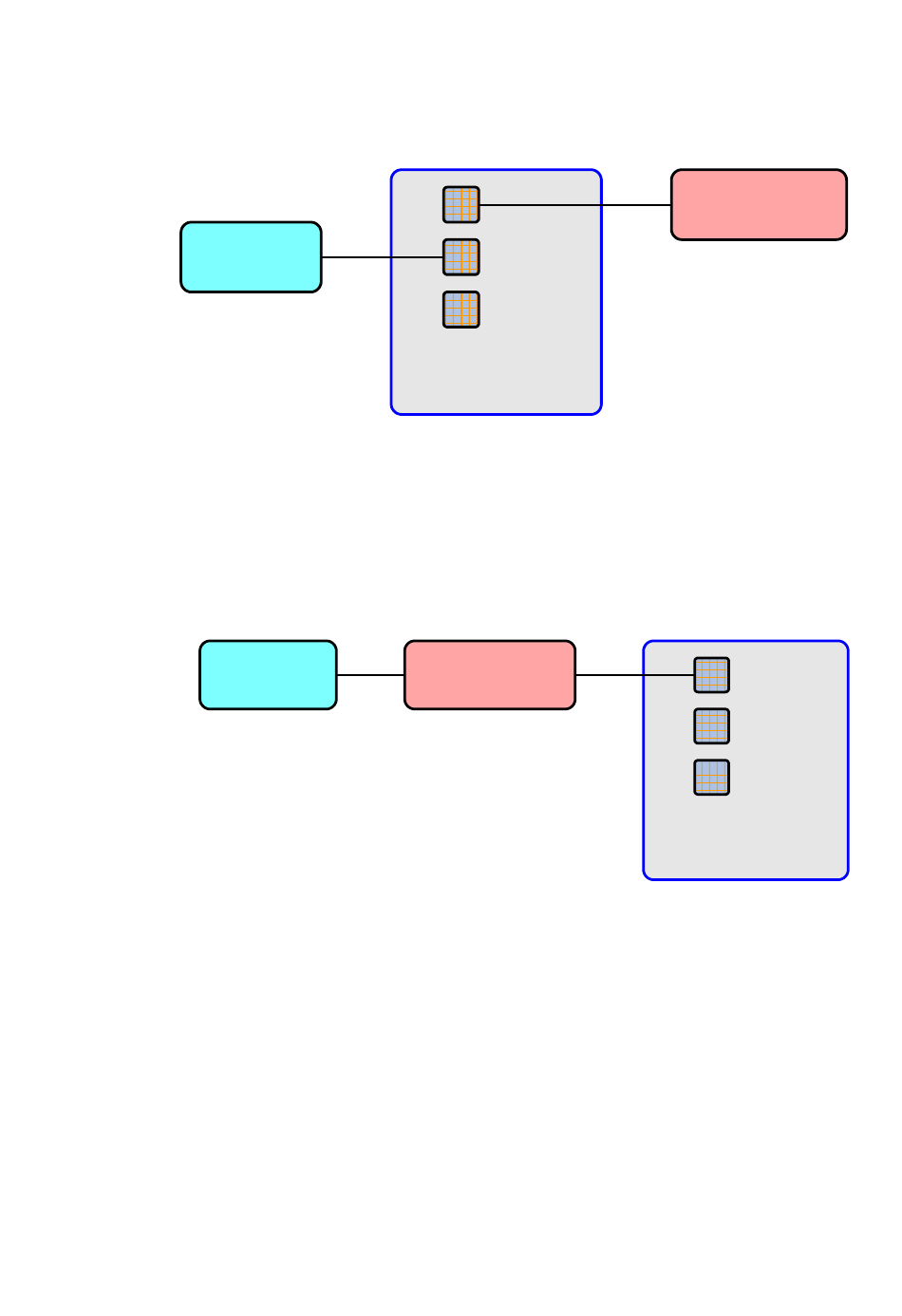

In the following configuration, a ModuLab XM chassis is controlled directly from
the PC, but the upper socket of the chassis is connected to the network.
PC
Figure 2-7
In this case, the ModuLab XM system becomes part of the corporate network,
giving it access to printers and data backup devices.
2.9.1.2 Single Chassis, Single PC, Network Control
In the following configuration, the ModuLab XM chassis is controlled from a PC
connected to the network, allowing the convenience of having the PC and the
chassis in different locations, for example an office and a laboratory.
PC
Figure 2-8
21006002_AD 11/06/14
ModuLab
Chassis
PC connected to ModuLab XM Chassis with access to network
Network
PC connected to ModuLab XM Chassis through network
Assembling the System
Network
Uplink
PC
Expansion
Network
Network
Uplink
PC
Expansion
ModuLab
Chassis
2-23
