the chassis where a module may be fitted. Only the display panel, potentiostats and
FRAs need to be given IP addresses. The other module types do not have Ethernet
interfaces.
The procedures for changing hardware addresses are slightly different for the
chassis display panel and modules.
2.9.2.1 Changing the Chassis Display Panel Address
The chassis display panel IP address can be changed as follows:
1. On the PC, run the ModuLab XM software and make sure a project is open.
2. Click the
3. Expand the
the chassis name, for example
4. Expand the
5. In the
button. This will change the address on the chassis display panel hardware and
perform a communication test, and if communication is successful a test
message will appear on the display panel, and the new address will appear in
the Display IP address
CAUTION:
21006002_AD 11/06/14
Setup tab.
Equipment library

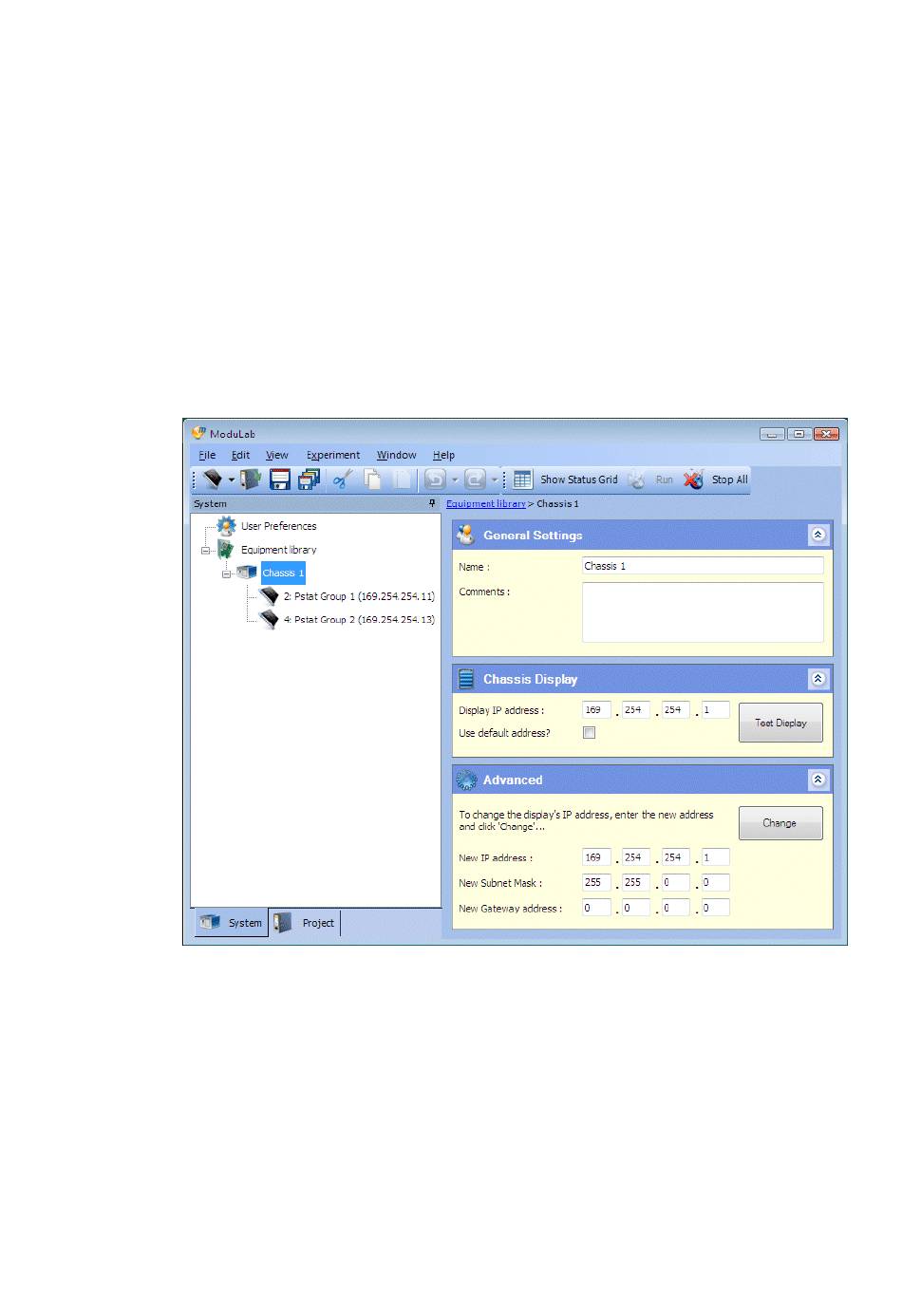

Advanced sub-screen, so that the screen is as follows:
Advanced sub-screen, specify the new IP address, then click the
field in the
Contact your system administrator if you wish to change the
subnet mask or gateway address. The subnet mask must be
the same for the PC and chassis, and the gateway address
should normally be left at the default value of 0.0.0.0.
in the left-hand navigation panel, and click on
Chassis 1.
Chassis Display sub-screen.
Assembling the System
Change
2-27
