Installation Tests
ModuLab XM ECS Electrochemical System: Installation Guide
A structure of data items will appear in the left-hand navigation panel, with
the
Pstat Group 1
item automatically selected, and the results will be
displayed as follows:
2

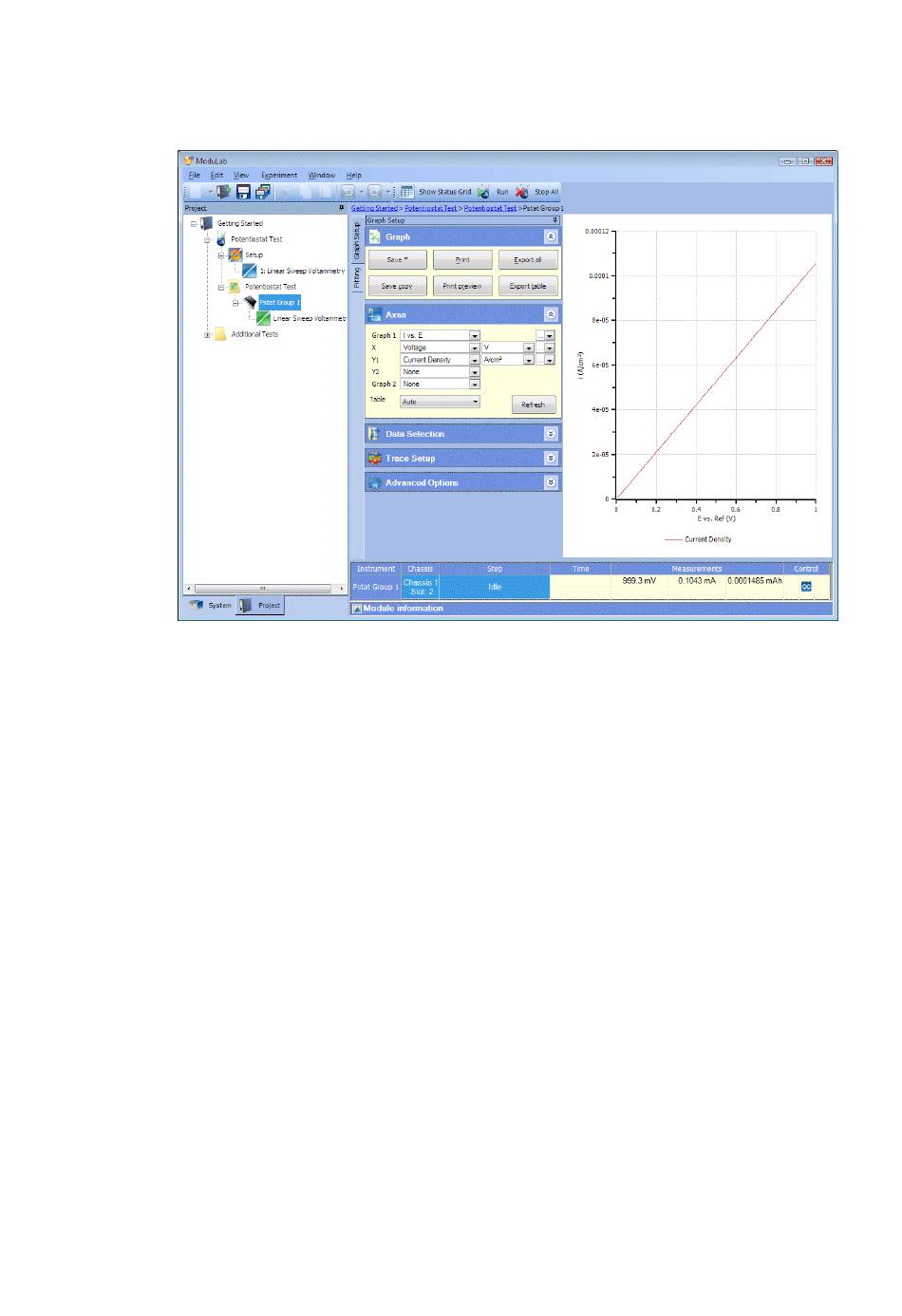

This screen displays a graph of current density (A/cm
) against voltage,
representing the current produced at the working electrode in response to the
applied voltage at the counter electrode. The result is a straight line because
the circuit is effectively a resistance when a DC voltage is applied.
Figure 3-3, Section 3.2.1, Response of ModuLab Test Cell to DC input.
The results can be reviewed while the experiment is running and after it has
finished. When reviewed while running, the graphs will update as new data
points are collected.
3-11
21006002_AD 11/06/14
