• Transition level : is the separation between the upper and lower regions of
the transfer function. This separation is used to apply the attack and release
times.
• Attack time and Release Time on the upper and lower regions : This four
parameters show the attack and release time of the DLP on two separated
regions of the transfer function : upper (above the transition level) and lower
(below the transition level).
If the selected DLP configuration is the required one, the OK or Apply buttons
must be selected. If you need to change the configuration of the pre-
programmed DLP or create a new one, then the Edit button must be pressed.
When the Edit button is pressed, the current window change its appearance to
the Digital Level Processor Editor (fig. 4.4.6.2.3.B). Within this window, the pre-
programmed DLPs database is managed.

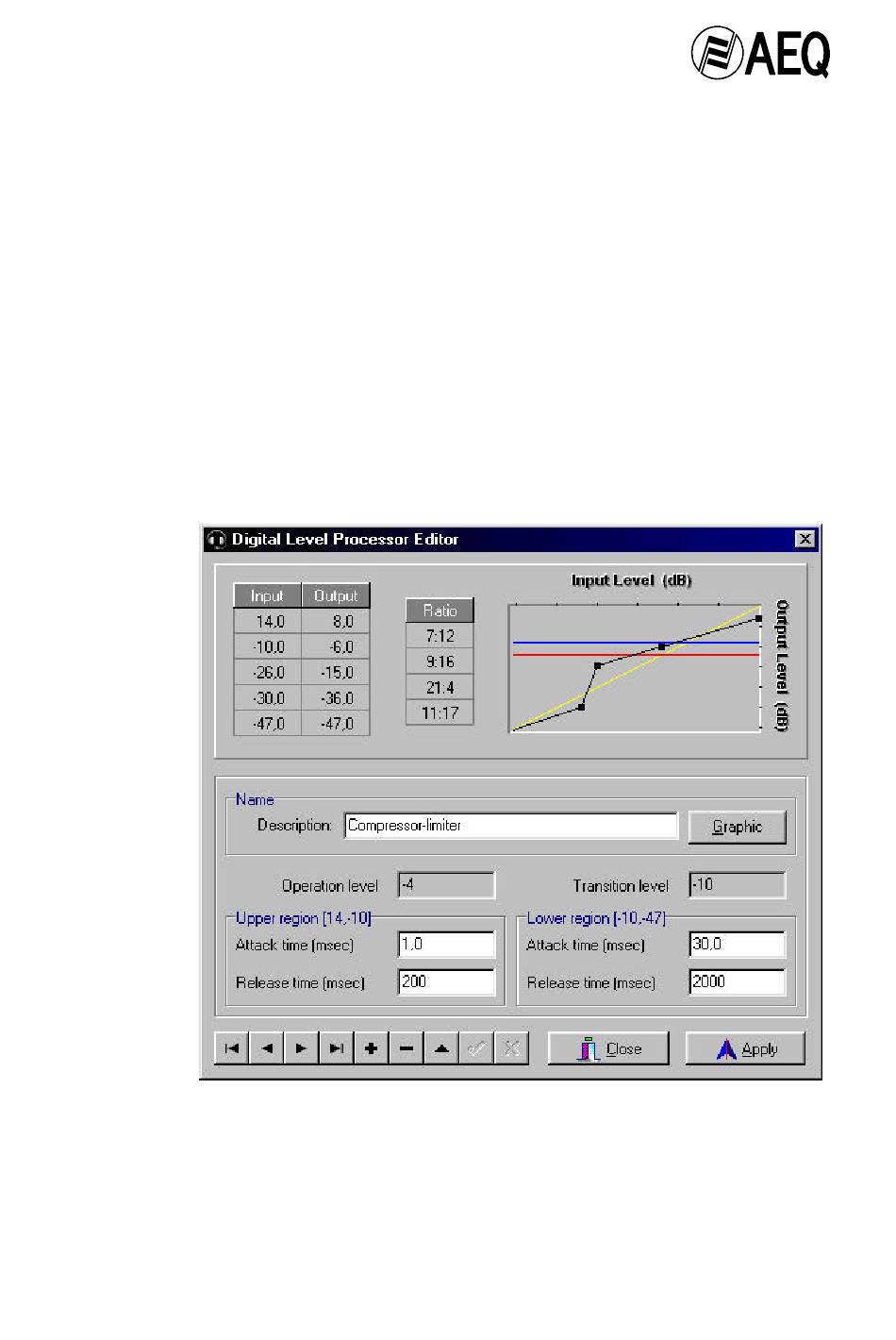

fig. 4.4.6.2.3.B. Digital Level Processor Editor window
This window is very close to the DLP selection window. The differences with
this one are the following :
