4.4.3 Commentary System Network screen
To activate the Commentary System Network Screen, the user can select the
menu View and the submenu Network or directly press the Network shortcut
button.
This window displays the configuration of the total network in a tree structure
(see fig. 4.4.3). The main node of this tree represents the computer that is
running the control software. Under the computer node, each of the CCUs
found in the network appears represented by a subnode. In the same way,
each CCU has subnodes representing each control module which can be
connected to a CU.

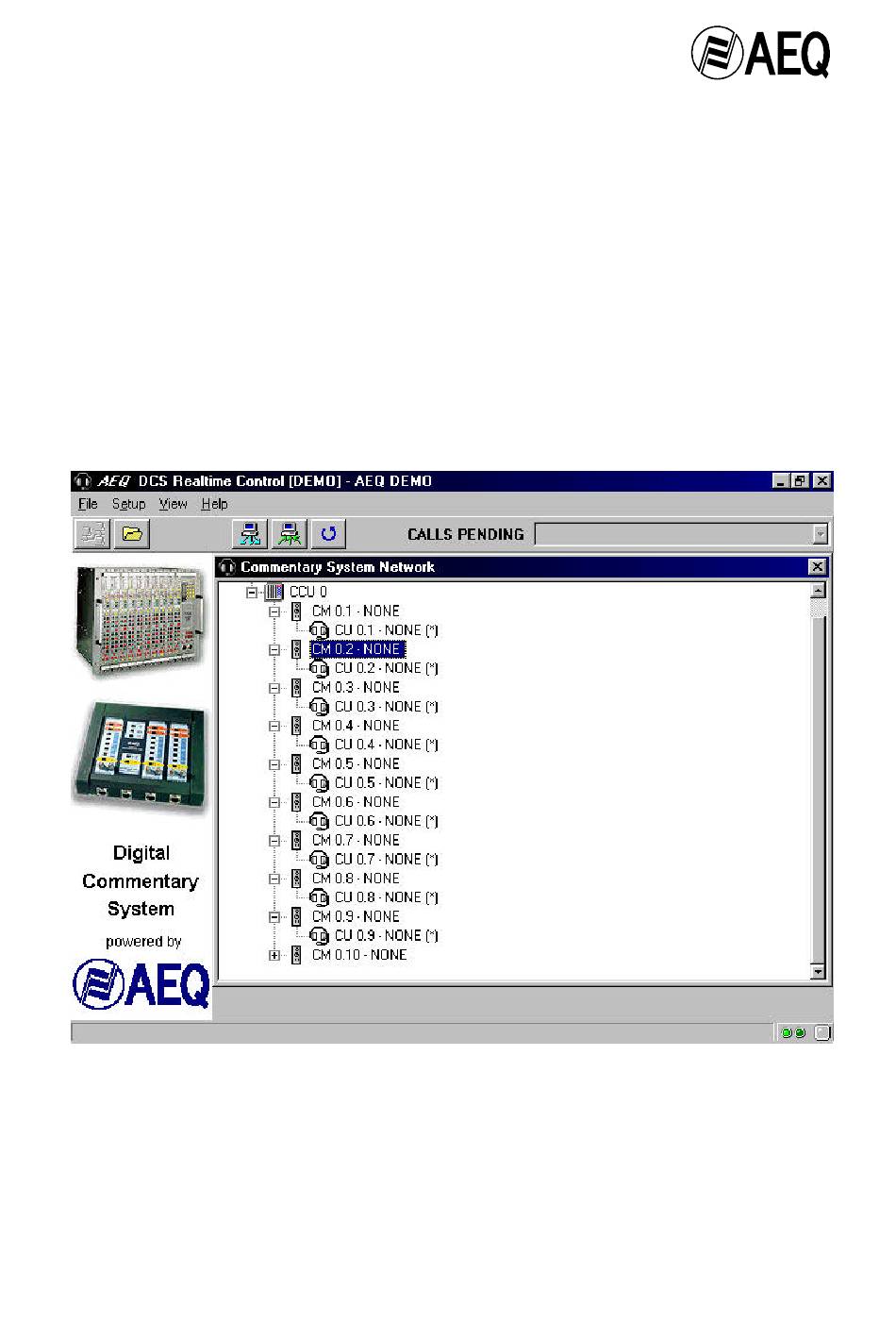

fig. 4.4.3. Commentary System Network screen
Each branch in the tree can be expanded or collapsed using the two buttons
that appear in the shortcut button bar or double-clicking on the selected node.
