VU METER AND LOUDSPEAKER

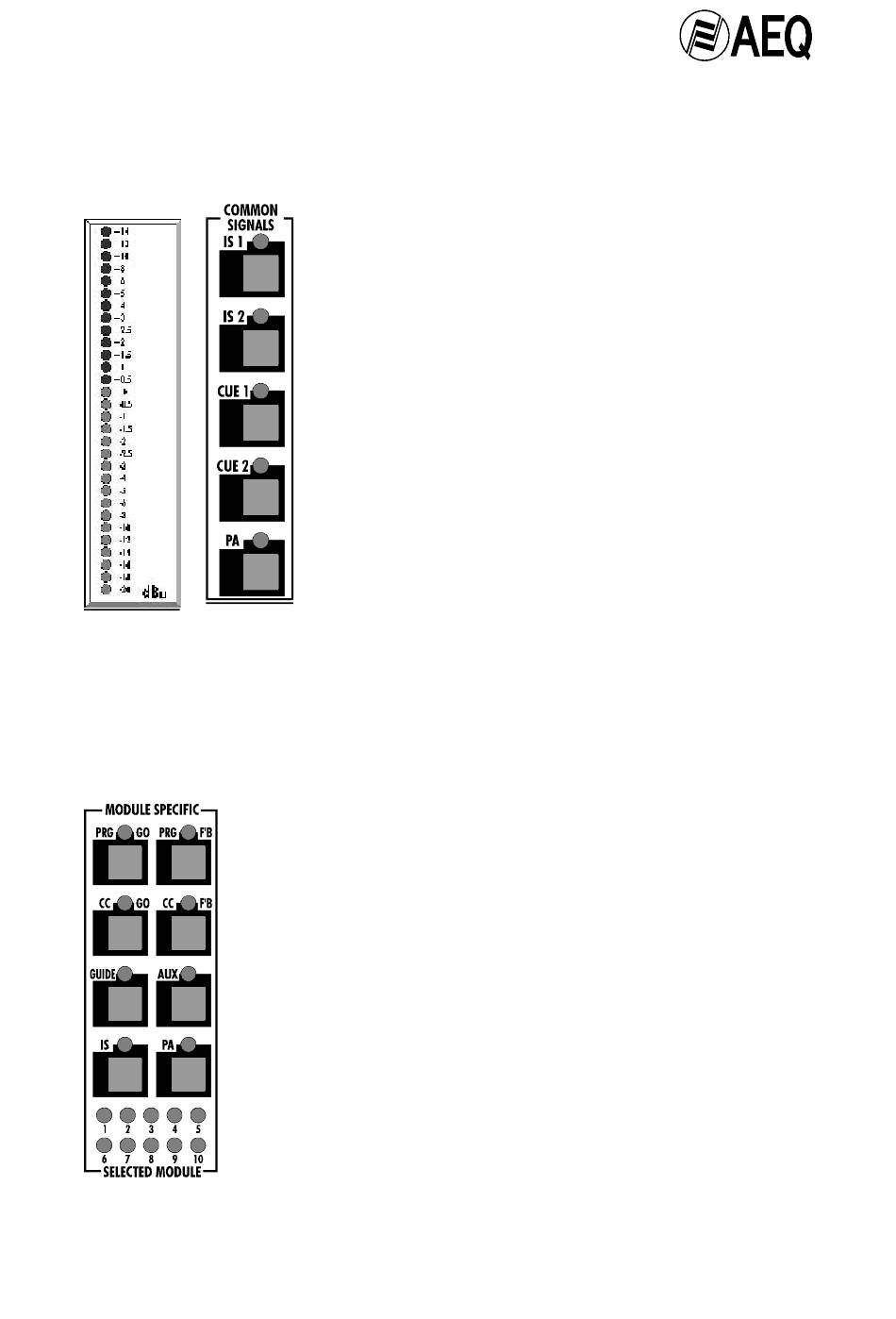

The precision VU-meter peak-meter is calibrated in
dBu. It is followed by the monitor loudspeakers,
except when the local intercom circuit (LOCAL
T' BACK ACTIVE) is activated. It is associated
through the selectors related to the following
signals:
COMMON SIGNALS: This selector sends the
external signals, common to all CM to the vu-meter
peak-meter and the loudspeaker. These signals
are measured after the trimmers described above,
therefore this is a measure of the CCU input signal.
The signals common to all modules are:
IS 1
IS 2
CUE 1
CUE 2
PA
• MODULE SPECIFIC
This selector sends to the vu-meter peak-meter and the
loudspeaker the signals corresponding to the selected
control module (CM).
The module number selected by its " CONNECT TO MON"
key is signaled by the corresponding " SELECTED
MODULE" LED.
The following signals can be selected for monitoring by a
vu-meter peak-meter and a loudspeaker:
Output : PRG GO, CC-GO.
Input : PRG FB, CC FB, GUIDE, AUX, IS, PA.
IS is the international signal IS1 or IS2 selected in the INTL
SOUND section of the correspondent CM.
PA is the copy in the CM of the only PA signal introduced in
the CCU as COMMON SIGNALS.
