• Save as : Saves the current structure with a new name
• Close : Close the current structure.
Once the new file has been created, there are several task to be performed in
order to compose the total network structure. These tasks are described in the
following sections.
As the procedure to construct a new structure is the same than this for
modifying an existing one, we will describe now how to open an existing
structure and, then how to modify it.
4.6.3. Opening an existing structure

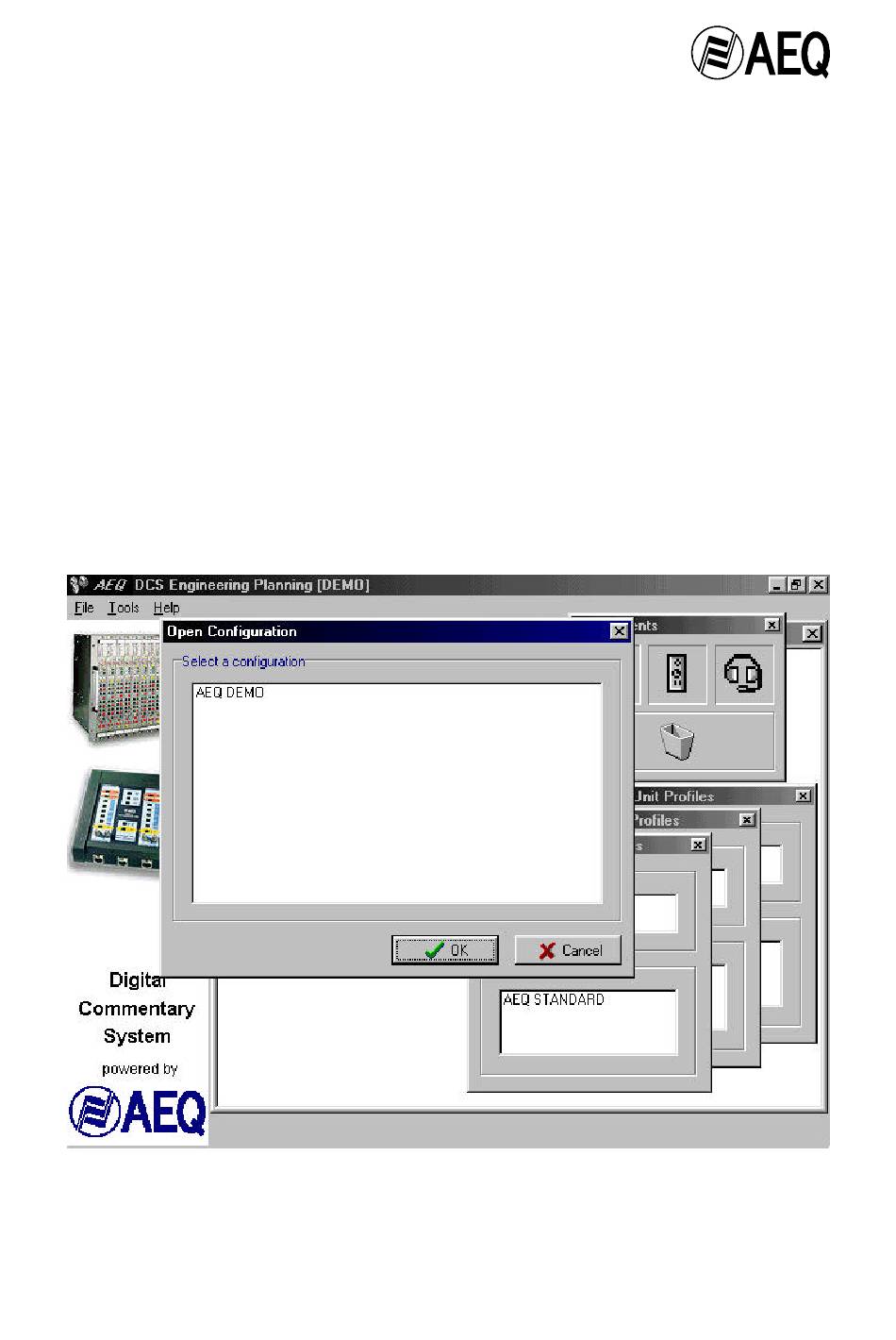

When the Open sub-option of the File option is selected, a list of the existing
structures appears. The user must select the desired structure by its name (fig.
4.6.2). When selected, the selected structure will appear in a window as the
one described in the previous section.
4.6.3. Opening an existing structure
