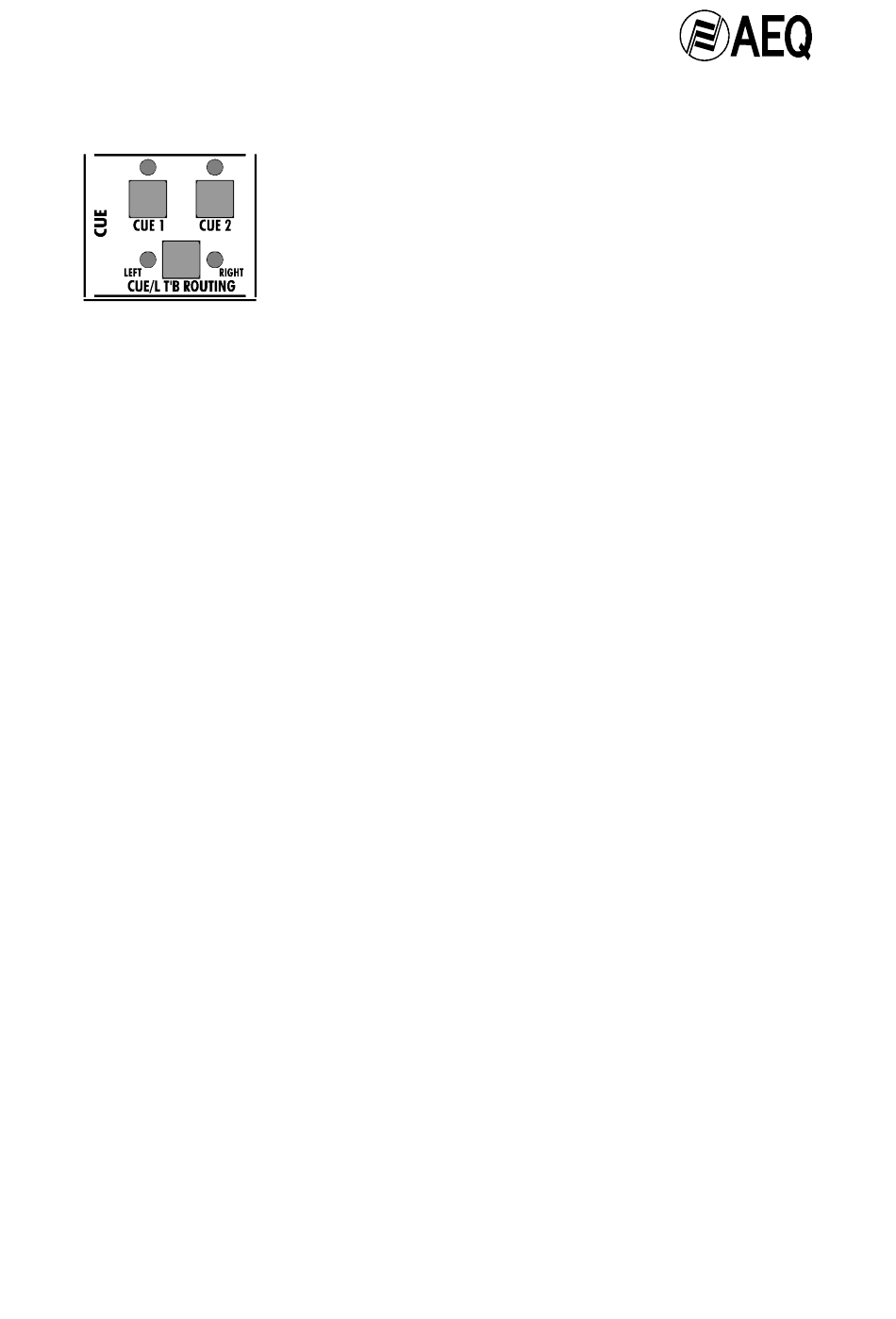

CUE
• CUE 2: The activation of this switch permits the CUE2 signal to reach the
headphones of the commentators at the CU. The associated led will bright.
The CUE1 and CUE2 switches are not exclusive, therefore if both switches
are activated, the two signals will reach the headphones.
• CUE/LT' B ROUTING: This switch routes the CUE LT' B (Local Talkback or
intercom with the CCU) and RINGER signal or signals to the left, right, or
both earpieces of the commentators at the CU. When it is successively
pulsated, it switches these three options which are signaled by the left and
right leds associated with each earphone.
This section handles the connection of
common CUE1 and CUE2 signals to
the Commentary Unit that arrive to MM
through CUE1 and CUE2 connectors
and establish the routing of CUE,
LOCAL and RINGER signals to the
commentators' ears.
• CUE 1: The activation of this switch
permits the CUE1 signal to reach
the
commentators
associated led will bright.
