4.4.6 Commentary Unit screen
4.4.6.1 The Commentary Unit screen
The Commentary Unit control screen has a similar appearance to the actual
Commentary Unit console (see fig. 4.4.6.1). The input channels are
represented in this window.
Each channel contains the following:
• Visual indicators that represent the status of the LEDs in the actual console
(I.S., P.A., GUIDE, AUX and PROGRAM or MICRO and LINE IN or the
MIC/TAPE channel).
• DLP button that, when pressed, activates the console digital level processor.
The processor configuration is set with the Config DLP button.
• HPF button that, when pressed, activates the console high-pass filter. The
filter configuration is set with the Config HPF button.
• INPUT button that, when pressed, enables the channel audio input.
• Input gain control with adjustment from +10dB to -10dB. The gain value is
shown on the center of the control.

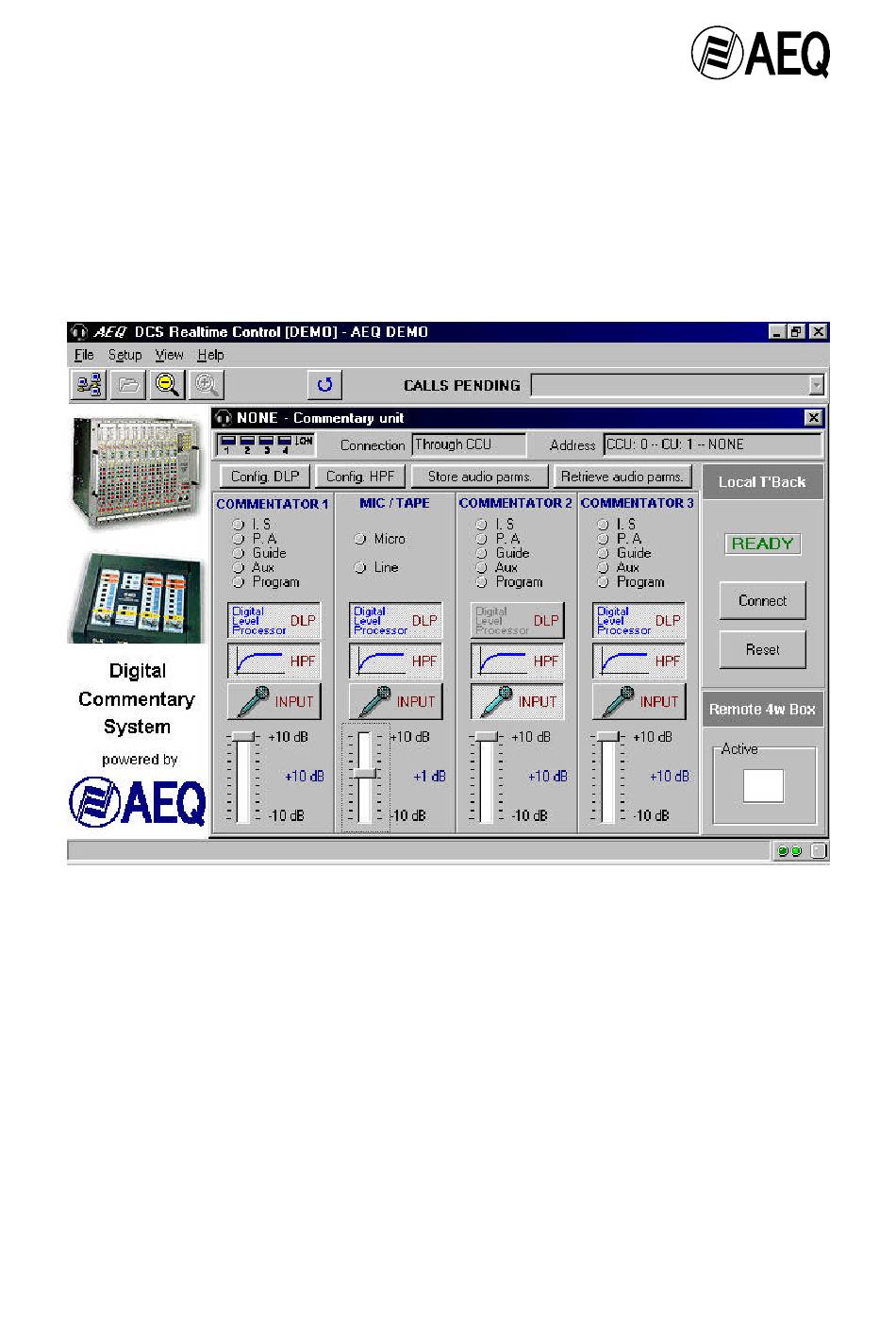

Fig. 4.4.6.1 CU control screen
