• Select the element and press Del key on the keyboard. A warning message
will appear.
• Drag and drop the element to the trash box.
4.6.5. Assigning profiles to the elements
The DCS Engineering Planning software allows to create any number of
elements profiles in order to assign them to the different elements of the
structure. These profiles contain all the configuration parameters for that
elements, so we have Control Unit profiles, Control Module profiles and
Commentary Unit profiles.
The managing of the different profiles is made by the 3 tool windows that
appear on the right bottom side of the main window. All these windows has the
same appearance (fig. 4.6.5)

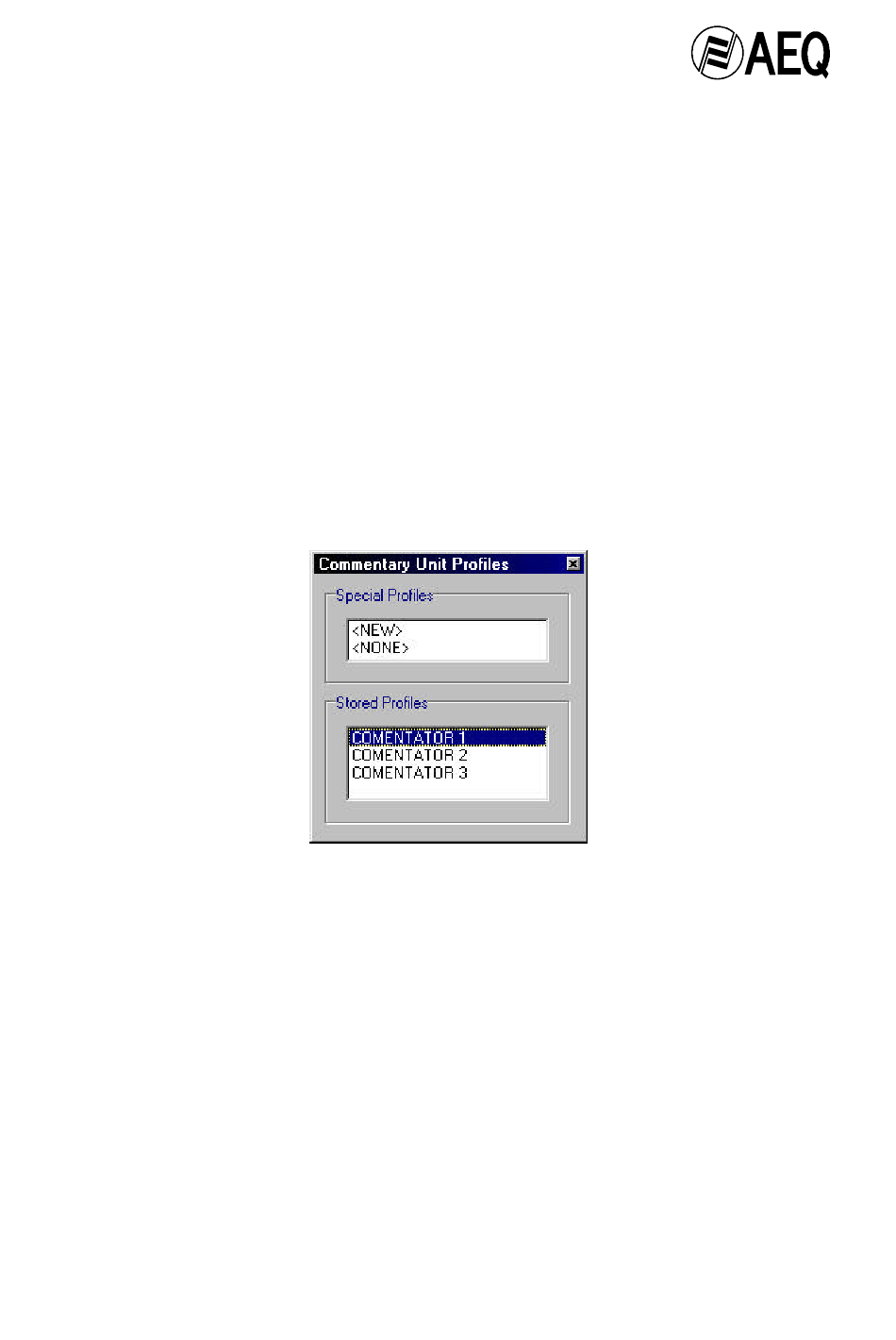

Fig. 4.6.5. Sample Profiles window
These windows are divided into 2 sections : Special Profiles and Stored
Profiles. Following, each of these sections are described.
