3.3.1 Monitor connections

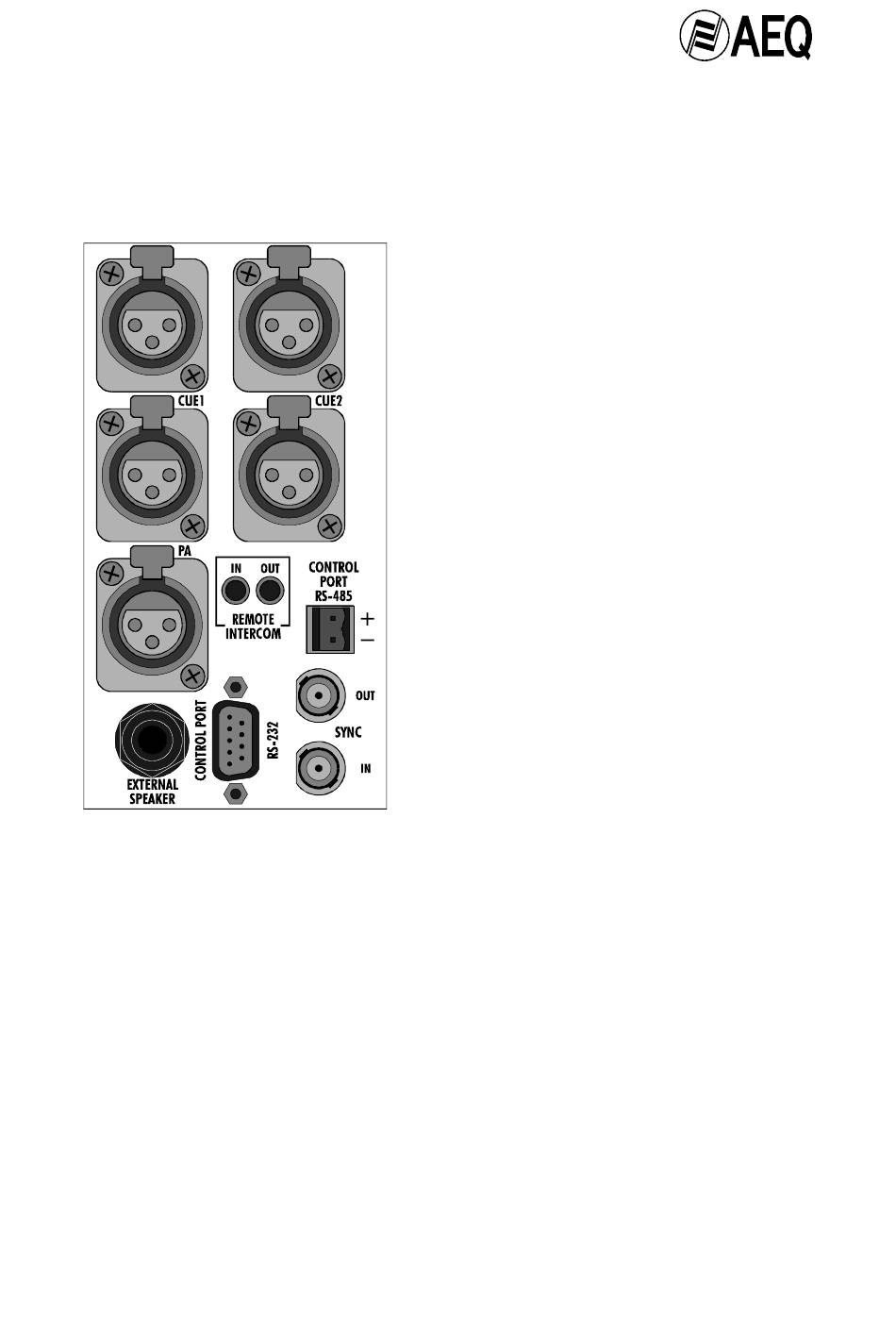

Various connectors are grouped under the " monitor" name, a description is
given in this section.
The external loudspeaker is wired as follows:
Tip: V+
Ring and sleeve : V- (ground)
• COMMON AUDIO SIGNALS:
There is a group of XLR connectors for
common audio signals to all modules:
IS1, IS2, CUE1, CUE2 and PA.
Female 3 pin XLR connectors are fitted
for these signals. These must be wired
following the standard, using a cable
fitted with a male 3 pin XLR connector.
The following details the correct wiring
connections.
1: ground
2: Signal V+
3: Signal V-
• EXTERNAL LOUDSPEAKER:
If required, one external loudspeaker can
be connected to the internal audio power
amplifier (8 Ω , 10 W maximum), by
means of a standard 1/4 inch jack. This
operation automatically disconnects the
internal loudspeaker.
