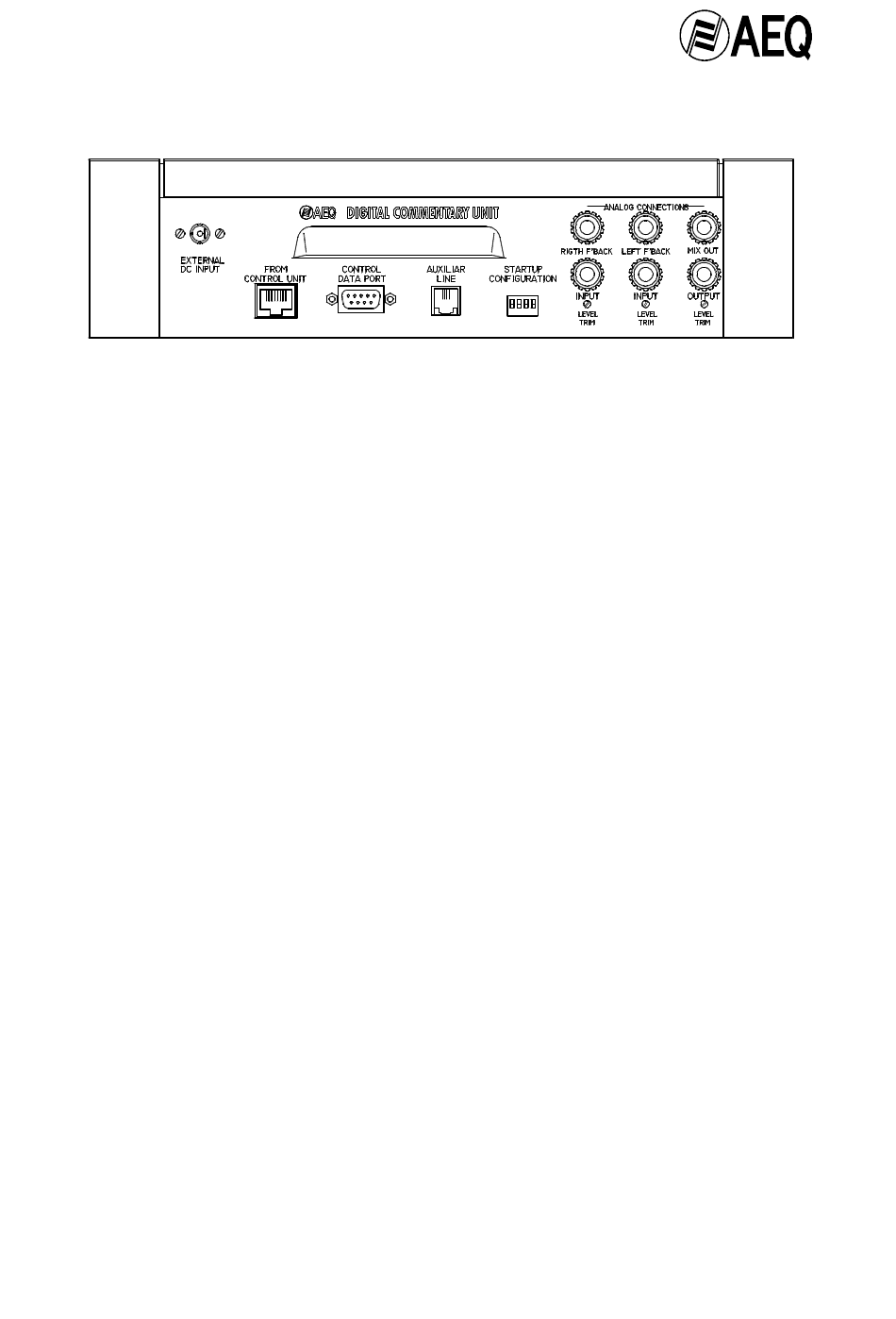

2.3.2 Rear panel description
The following facilities are situated on the rear panel:
- Local analog feedback connectors for left and right earphones (LEFT
F' BACK, RIGTH F' BACK) and trimmers for input level adjust ( LEVEL TRIM )
- Local auxiliary program output connector (MIXED OUT) and trimmers for
output level adjust (LEVEL TRIM)
- CCU communication connector (FROM CONTROL UNIT)
- Auxiliary line connector (AUXILIARY LINE)
- Data connector (CONTROL DATA PORT)
- Auxiliary power supply connector. (EXTERNAL DC INPUT)
Micro switch bank for power-up configuration selection (STARTUP
CONFIGURATION)
The following sections describe the elements listed above and their use.
