2.4 Description and operation
2.4.1 Configuring the unit
The application of each configuration as selected according to section 2.3.2.5.
is described in the corresponding section of chapter 4.
After any change in the configuration, it is necessary to disconnect power-
supply from the CU to allow it to reset and restart with the new configuration.
2.4.2 Working panel
From the operational point of view, the working surface is divided into five
areas:
• Commentator control area: COM 1, COM 2, COM 3/ PRODUCER.
• Interview microphone / portable tape recorder control area.
• Status area.

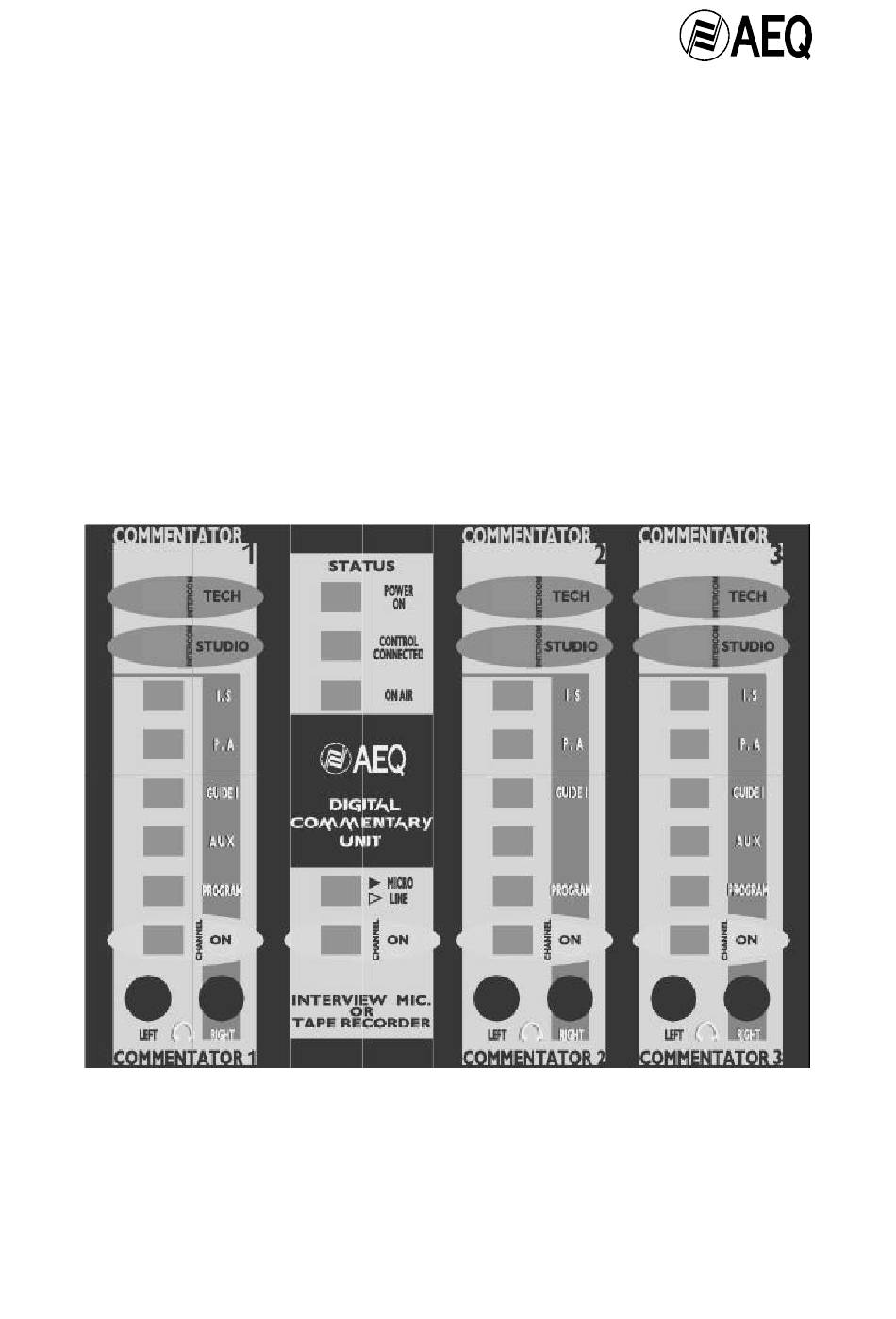

Fig.2.4.2 Working Surface Layout.
