4.4.6.2.3. Configuring the DLP
When the DLP button is pressed, the Digital Level Processor window appears
(fig. 4.4.6.2.3.A). This window is only intended to select a preprogrammed DLP
transfer function. To select a previously set configuration, click on the selection
list labeled Description. When a configuration is selected, its transfer function
and other parameters are shown on each data field on the window.

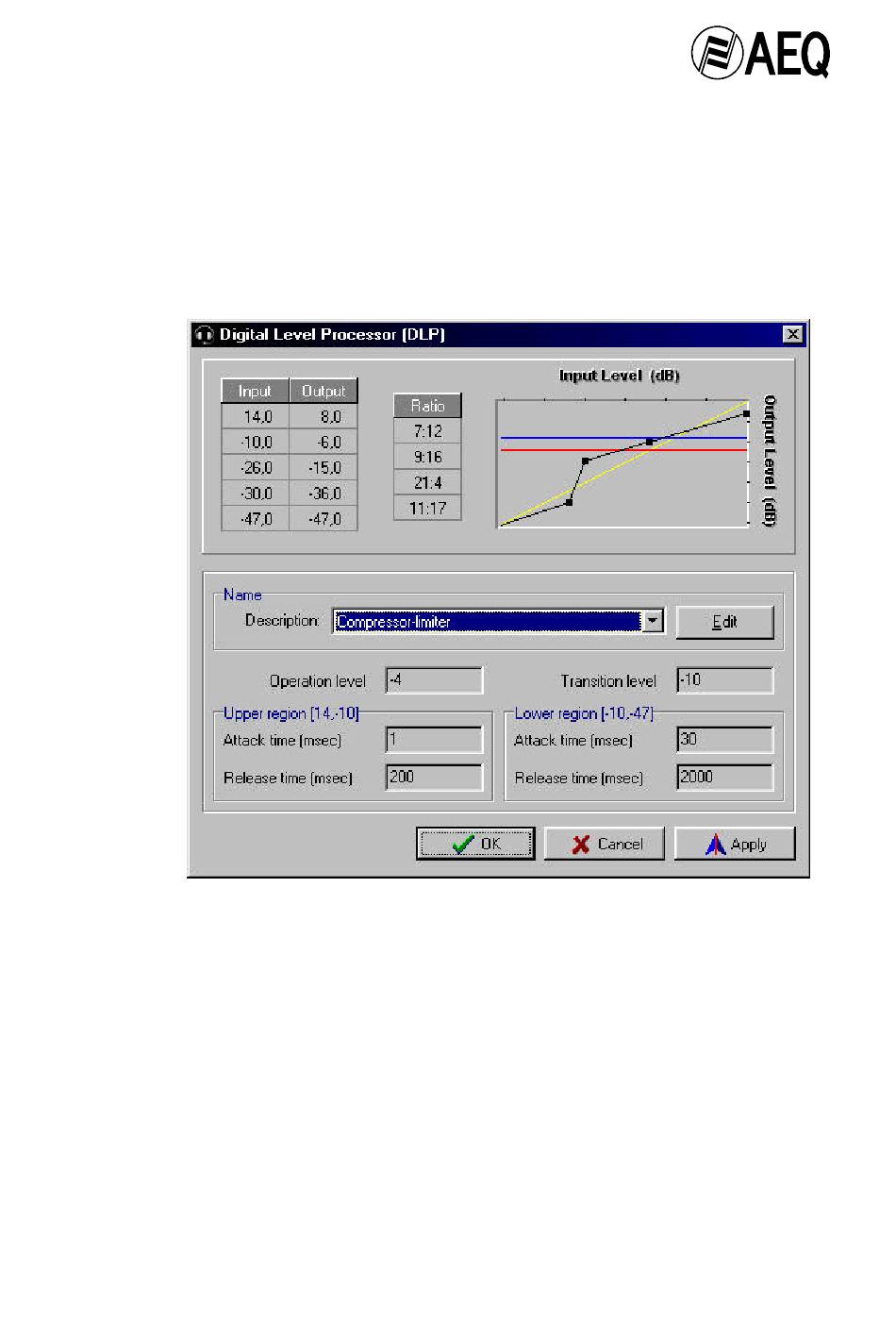

fig. 4.4.6.2.3.A Digital Level Processor (DLP) window
The fields that are shown in this window are the following :
• Points table : This table, on the upper left corner of the window represents
the input-output coordinates of each point on the transfer function. The slope
of each ramp between points is also shown.
• Name : Description of the current DLP transfer function.
• Operation level : Is the reference level of the transfer function. The transfer
function always works 14dB over the operation level and 42dB below this
one.
