4.6.2. Creating a new configuration file
When the New sub-option of the File option is selected, a new empty network
structure appears. The network is represented by a tree which main node is the
Control Computer. So, the new tree only has one component (fig. 4.6.2).

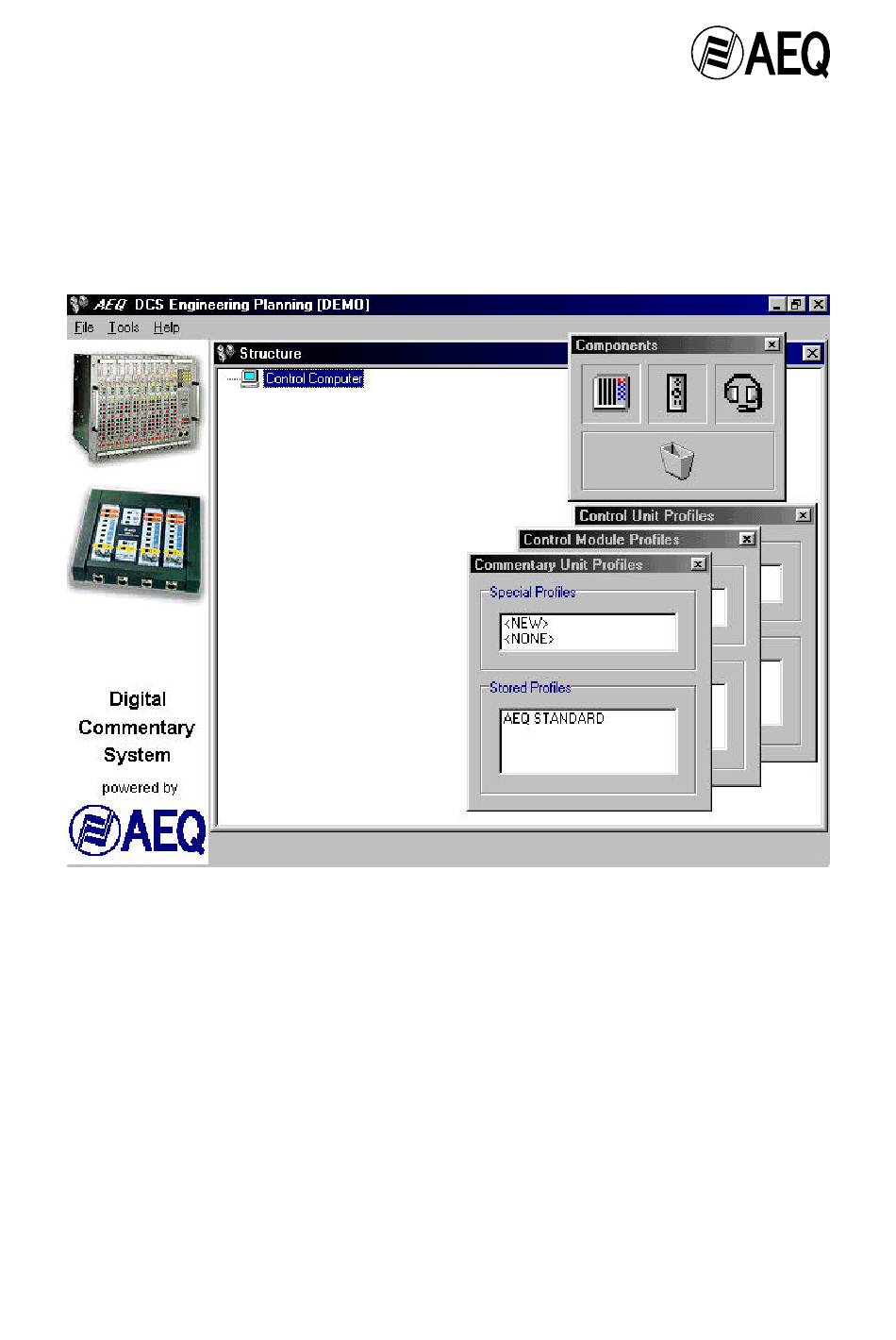

Fig. 4.6.2. New network structure
When the window Structure is present, a new menu option appears : Tools.
This option is used to make visible or invisible the 4 tools windows that appear
on the right side of the main window. Through these tools it is possible to add
and delete components in the network structure and assign them profiles.
The File option changes also its sub-options. When the window Structure is
present, these sub-options are the following :
• New : Creates a new structure
• Open : Opens an existing structure
• Save : Saves the current structure with its own name
