4.4.2 Setting the network operational parameters
Network operational parameters are set by selecting the Setup option from the
menu bar /fig. 4.4.2.1.A). This menu has 2 different options :
• Network Connection : When this option is selected, the Netwo rk Setup
window is opened. In this window, all the parameters for the communication
with the total network are set.
• Direct Connection : When this option is selected, the Direct Setup window is
opened. In this window, the parameters for the direct connection with a CU
are set. This window is described on section 4.5.1 of this handbook.
When the option Network Connection is selected, the Network Setup window
appears. This window is divided into three sections that focus on a specific set
of parameters. Each section can be selected by pressing on the label at the top
of the window. The OK, Cancel and Apply options apply to the parameters set
in the 3 labels. Following, each set of parameters are explained.
Network connection

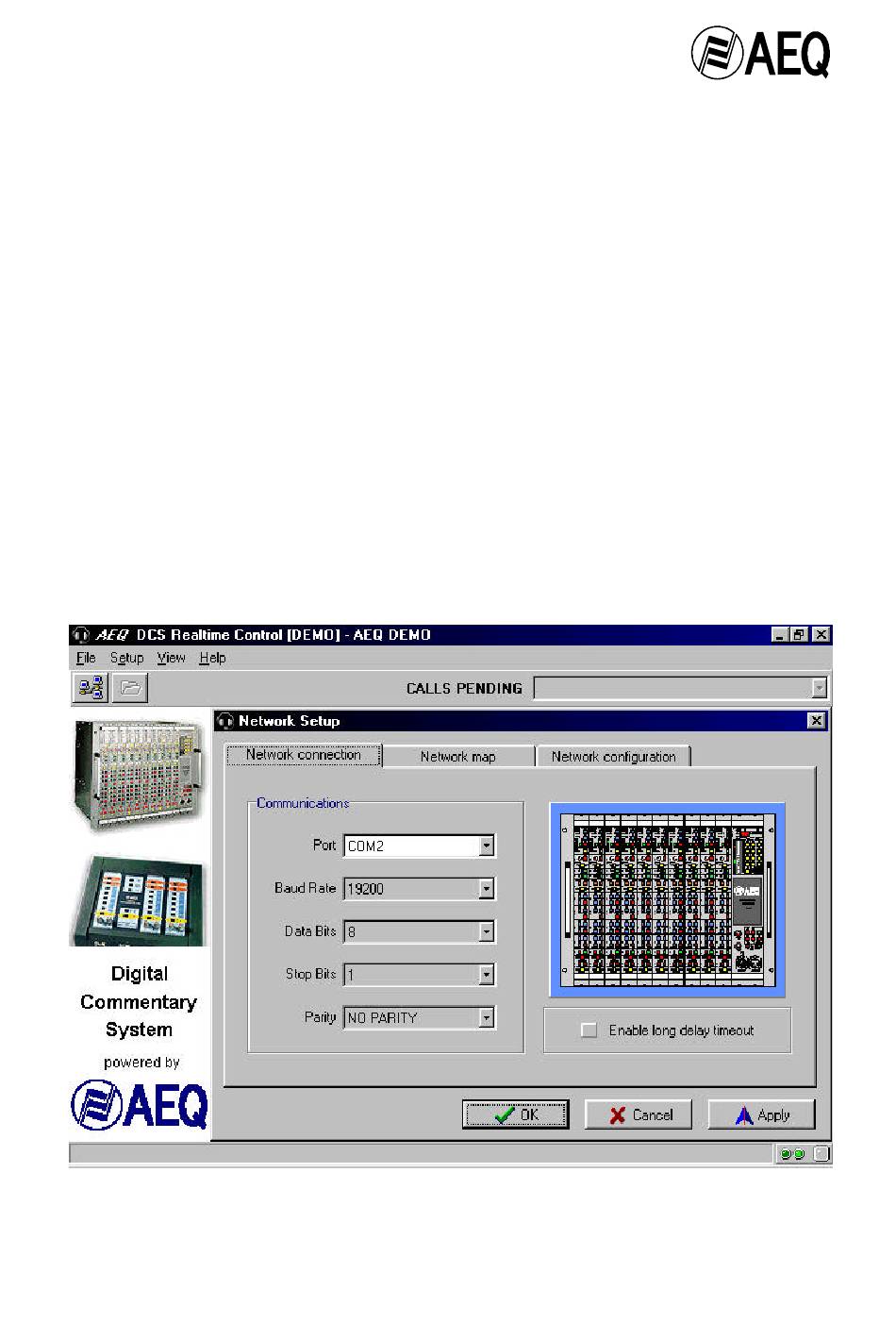

fig. 4.4.2.1.A Network connection screen
