AEQ DIGITAL COMMENTARY UNIT Customer's Manual page 57

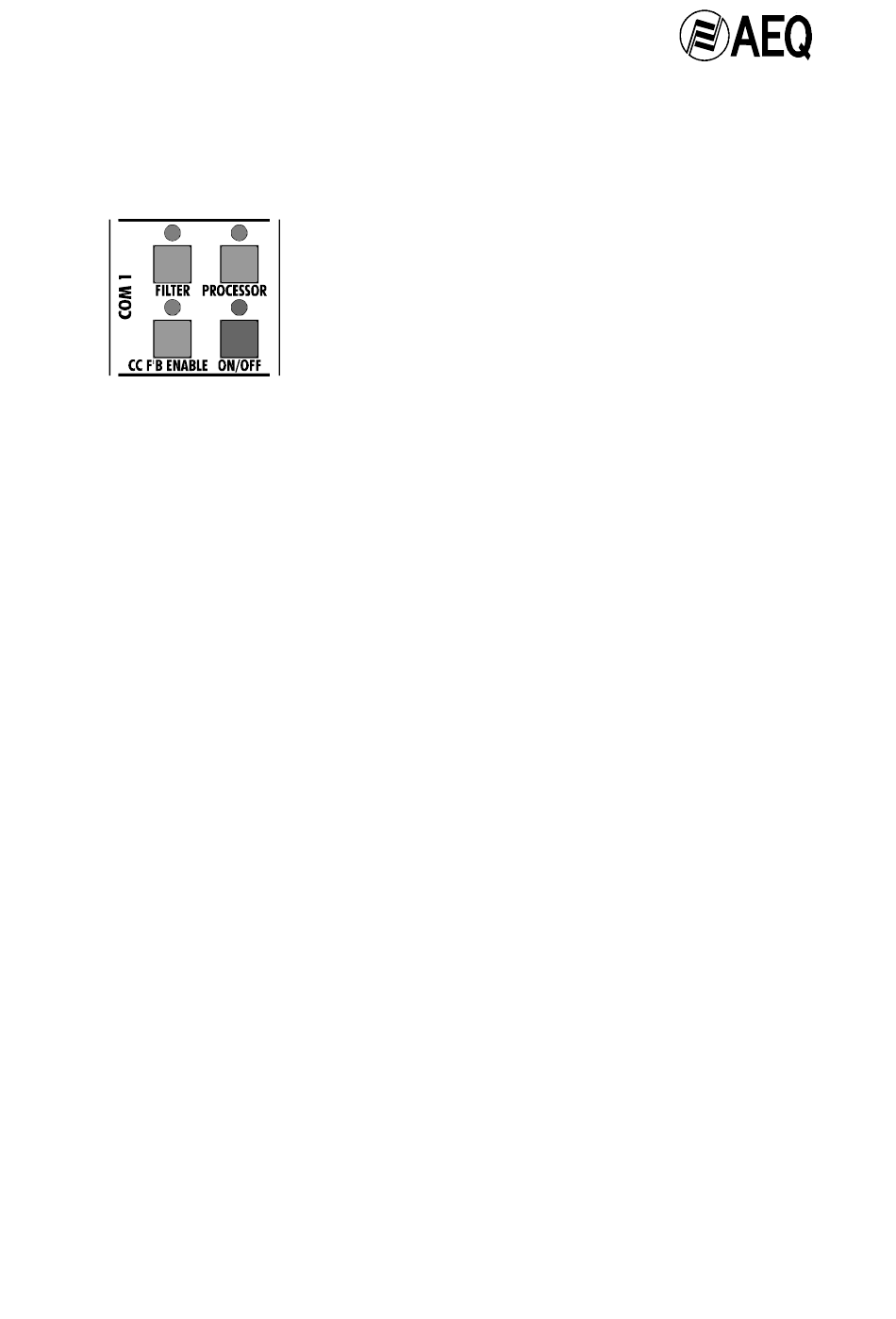

3.4.2.4. CM : CU channels control section: COM1,2,3 and MIC/LINE
COM 1, 2, 3,
is in parallel with the channel ON control at the CU. Neither the commentators
nor the technician have priority, therefore the system responds to the last order
it receives (toggle switch mode).
CC F´B ENABLE : A switch which enables communication with the
coordination circuit for the commentators who need it. This applies to the
signals sent from the CU as well as the return signals. This affects to the
coordination circuit (CC). This does' nt affect to the local technical circuits,
Local T' back and Remote T' back, that are established at any position of this
switch.
There are three identical sections
which controls each one of the MIC
input channels of the Commentary
Unit.
• FILTER: Activates a high pass
filter.
• PROCESSOR:
digital level processor (DLP). If
this is deactivated the dynamics
will be natural.
• ON/OFF: Commentator unit (CU)
remote channel mute. This function
Digital Commentary System
-57-
Activates the
