3.4.2.6. CM : IDENTIFIER (ID) section
IDENTIFIER
options and turning on in red the CU STATUS indicator.
With LOCK&PLAY, this section will remain deactivated, remaining activated the
rest of the CM and its CU.
The push button will not respond to switch from LOCK&PLAY to UNLOCK if, in
the CM :
- AUDIO MODE is in PROG mode (red led PRG on).
- LOCAL T' BACK is in CONNECT mode (red led CONNECT on).
- The remote intercom is in use with a CU associated to this CCU.
- The MM INTERCOM is in use, associated to this CM circuit, i.e. a MM
INTERCOM TALK red led is on, the MM SELECTED MODULE green led,
corresponding to our CM is on and the PRG red led of AUDIO MODE in our
CM is blinking.
- If the MM intercom is in use, associated to a circuit from another CM, the
push-button will respond but the REC PRG ID key will can not be used, so
this operation must not be performed.
The operator will carry out Recording
Line Identifying message functions
within this section.

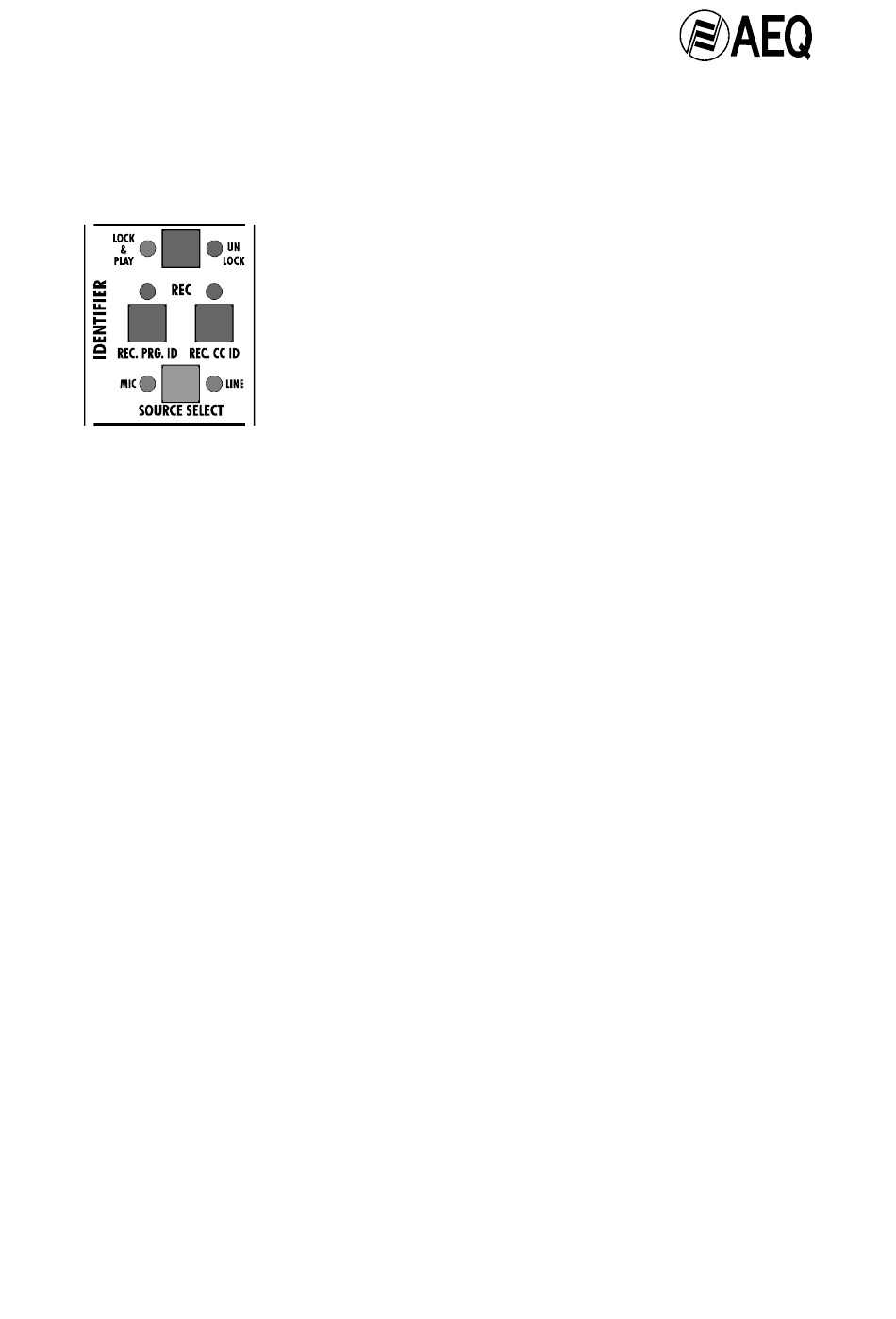

• LOCK & PLAY / UNLOCK: Switch
will connect the Recording/Play-
Back Circuit to the Recording Input
or to the Play-Back Program Output
respectively. This Program Output is
the ID Option of the AUDIO MODE
switch
2.3.2.1.
With
section remains active, locking the
rest of the CM and its associated
CU, causing to turn off the CM leds
which
Digital Commentary System
-60-
as described
UNLOCK, the
indicate the
in section
IDENTIFIER
non-useful
