AEQ DIGITAL COMMENTARY UNIT Customer's Manual page 55

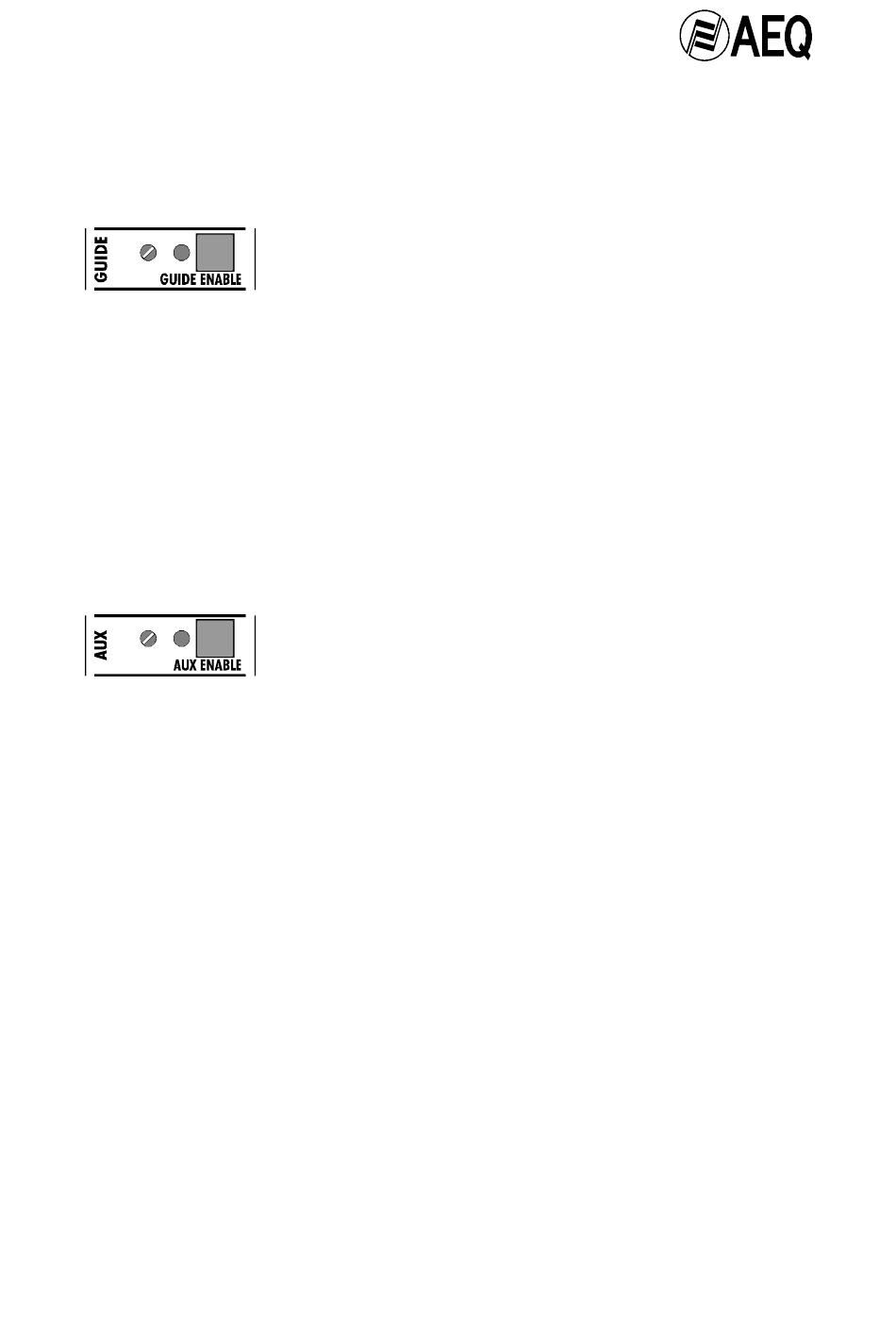

3.4.2.3. CM : Reference signals control section : GUIDE, AUX, CUE
GUIDE
switch permits the GUIDE signal to reach the headphones of the commentators
at the associated CU.
A trimmer is fitted for the fine adjustment of the referred signal level.
AUX
switch permits
commentators at the associated CU.
A trimmer is fitted for the fine adjustment of the referred signal level.
the AUX signal
Digital Commentary System
This section controls the independent
level and connection to commentator
headphones of the GUIDE signal that
arrives to CM through GUIDE IN
connector.
• ENABLE:
When
This section controls the independent
level and connection to commentator
headphones of the AUX signal that
arrives to CM
connector.
• ENABLE: When activated, this
to reach the
-55-
activated, this
through AUX
headphones of
IN
the
