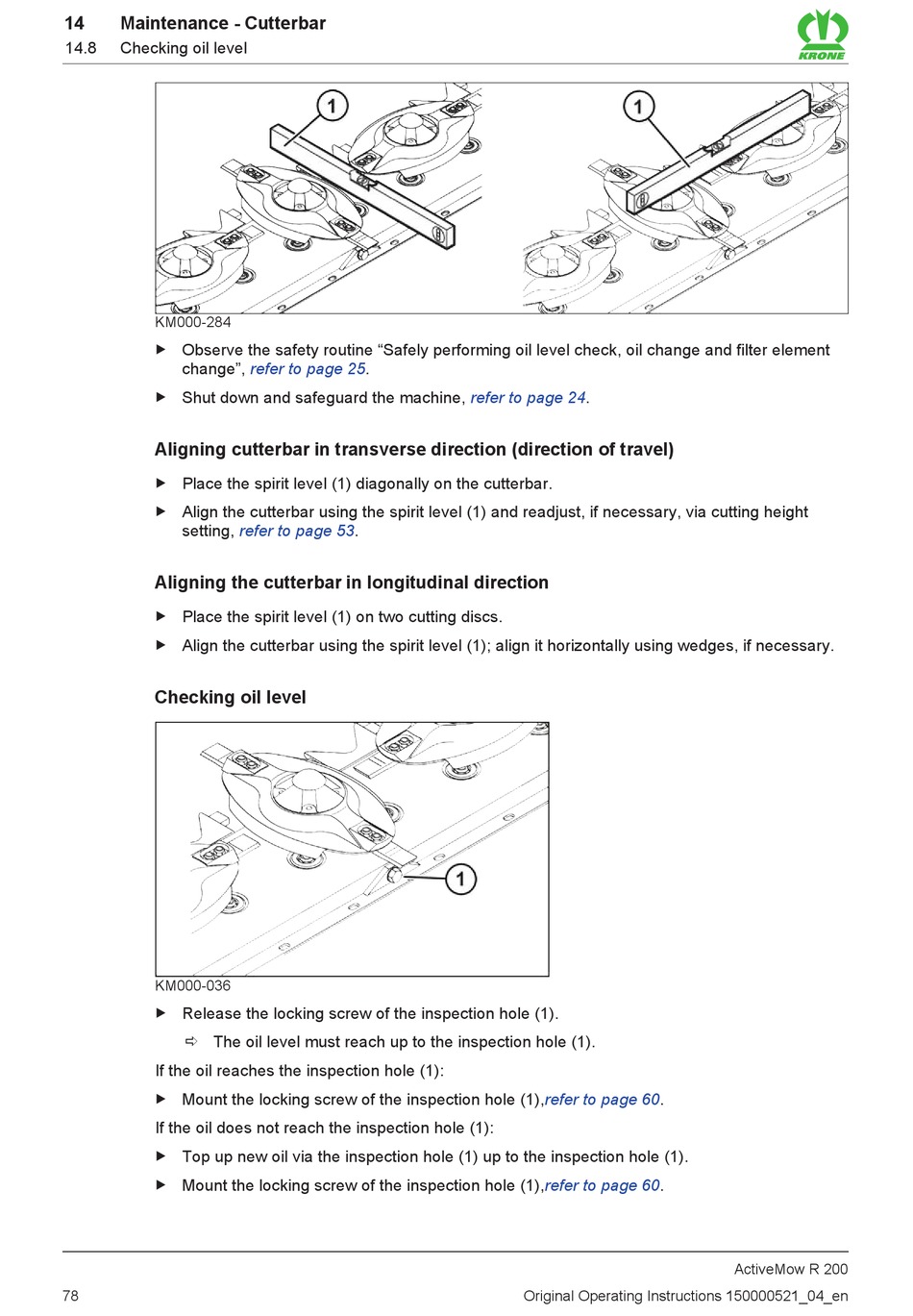

14 Maintenance - Cutterbar
14.8 Checking oil level
KM000-284
„ Observe the safety routine "Safely performing oil level check, oil change and filter element
change",
„ Shut down and safeguard the machine,
Aligning cutterbar in transverse direction (direction of travel)
„ Place the spirit level (1) diagonally on the cutterbar.
„ Align the cutterbar using the spirit level (1) and readjust, if necessary, via cutting height
setting,
Aligning the cutterbar in longitudinal direction
„ Place the spirit level (1) on two cutting discs.
„ Align the cutterbar using the spirit level (1); align it horizontally using wedges, if necessary.
Checking oil level
KM000-036
„ Release the locking screw of the inspection hole (1).
ð The oil level must reach up to the inspection hole (1).
If the oil reaches the inspection hole (1):
„ Mount the locking screw of the inspection hole
If the oil does not reach the inspection hole (1):
„ Top up new oil via the inspection hole (1) up to the inspection hole (1).
„ Mount the locking screw of the inspection hole
78
refer to page 25.
refer to page 53.
refer to page 24.
(1),refer to page 60.
(1),refer to page 60.
Original Operating Instructions 150000521_04_en
ActiveMow R 200
