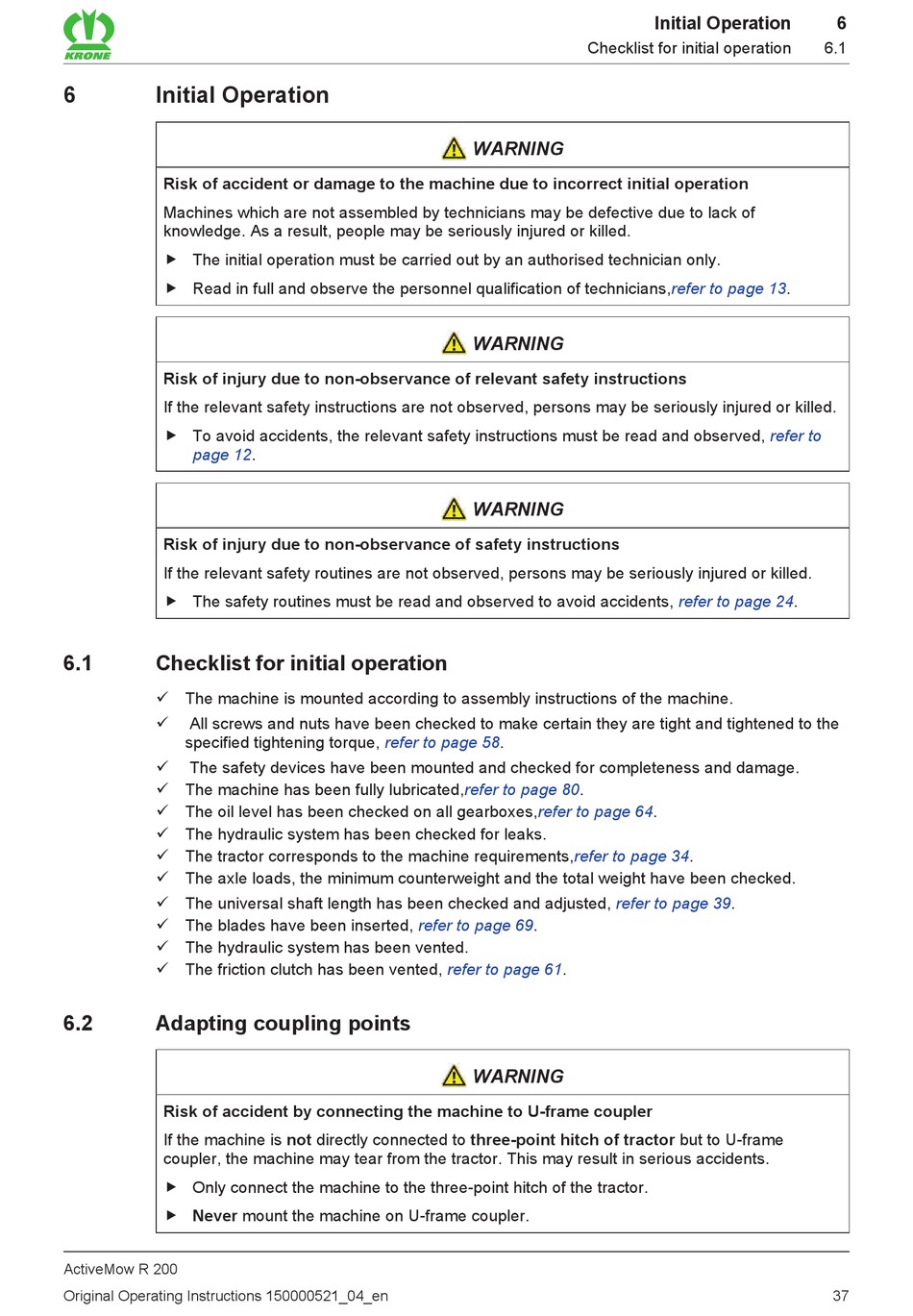

Initial Operation

Risk of accident or damage to the machine due to incorrect initial operation
Machines which are not assembled by technicians may be defective due to lack of
knowledge. As a result, people may be seriously injured or killed.
„ The initial operation must be carried out by an authorised technician only.
„ Read in full and observe the personnel qualification of
Risk of injury due to non-observance of relevant safety instructions
If the relevant safety instructions are not observed, persons may be seriously injured or killed.
„ To avoid accidents, the relevant safety instructions must be read and observed,
page 12.
Risk of injury due to non-observance of safety instructions
If the relevant safety routines are not observed, persons may be seriously injured or killed.
„ The safety routines must be read and observed to avoid accidents,
6.1

Checklist for initial operation

ü The machine is mounted according to assembly instructions of the machine.
ü
All screws and nuts have been checked to make certain they are tight and tightened to the
specified tightening torque,
ü
The safety devices have been mounted and checked for completeness and damage.
ü The machine has been fully
ü The oil level has been checked on all
ü The hydraulic system has been checked for leaks.
ü The tractor corresponds to the machine
ü The axle loads, the minimum counterweight and the total weight have been checked.
ü The universal shaft length has been checked and adjusted,
ü The blades have been inserted,
ü The hydraulic system has been vented.
ü The friction clutch has been vented,
6.2

Adapting coupling points

Risk of accident by connecting the machine to U-frame coupler
If the machine is not directly connected to three-point hitch of tractor but to U-frame
coupler, the machine may tear from the tractor. This may result in serious accidents.
„ Only connect the machine to the three-point hitch of the tractor.
„ Never mount the machine on U-frame coupler.
ActiveMow R 200
Original Operating Instructions 150000521_04_en
WARNING
WARNING
WARNING
refer to
page 58.
lubricated,refer to
page 80.
gearboxes,refer to
requirements,refer to
refer to
page 69.
refer to
page 61.
WARNING
Initial Operation
Checklist for initial operation
technicians,refer to
page 13.
refer to
page 24.
page 64.
page 34.
refer to
page 39.
6
6.1
refer to
37
