8.2.1

Moving support jack into transport position

For the "Series" version

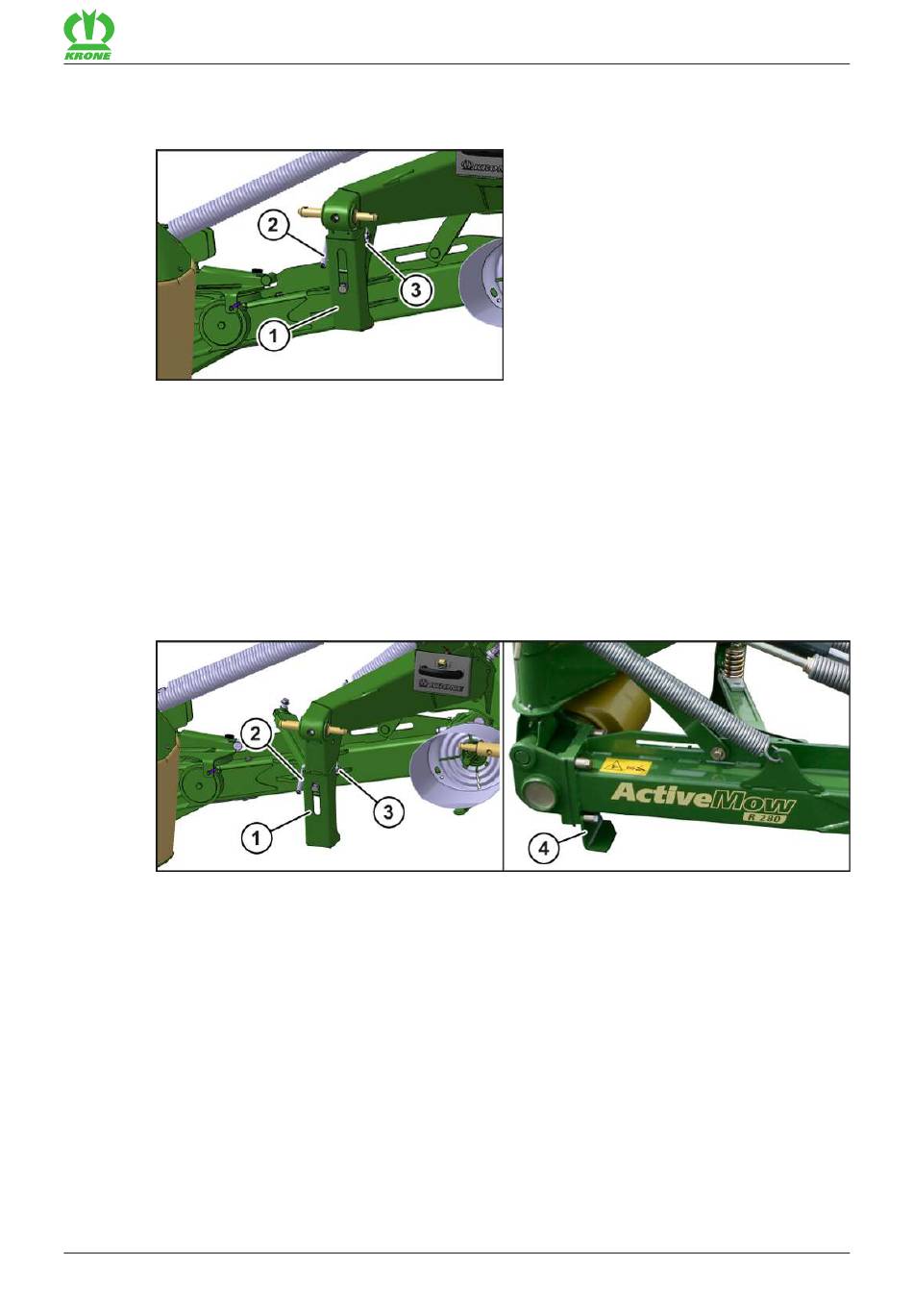

KM000-715
„ Raise the machine via the rear hydraulics until the support jack (1) can be pushed up.
„ Shut down and safeguard the machine,
„ Pull the linch pin (3) out of the locking pin (2).
„ Remove the locking pin (2) and move the support jack (1) into the upper position.
„ Insert the locking pin (2) into the upper borehole and secure it with the linch pin (3).
8.2.2

Moving support jack into support position

For the "Series" version
KM000-436
„ Raise the machine via the rear hydraulics until the support jack can be pushed down.
„ Pull the linch pin (3) out of the locking pin (2).
„ Remove the locking pin (2) and move the support jack (1) into the lower position.
„ Insert the locking pin (2) into the lower borehole and secure it with the linch pin (3).
„ Lower the machine via the rear hydraulics until the machine is resting on the support
jack (1, 4).
„ Shut down and safeguard the machine,
ActiveMow R 200
Original Operating Instructions 150000521_04_en
Operating support jack
refer to
page 24.
refer to
page 24.
Operation
8
8.2
45
