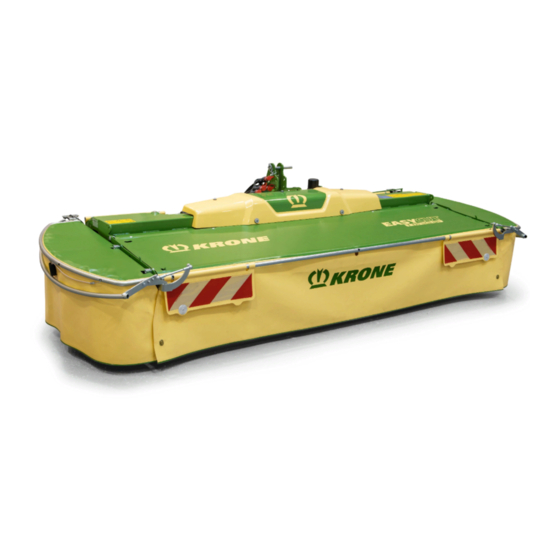

Krone EasyCut F 320 M Original Operating Instructions
Front mounted mower
Hide thumbs
Also See for EasyCut F 320 M:
- Original operating instructions (96 pages) ,
- Original operation instructions (80 pages)
Related Manuals for Krone EasyCut F 320 M
Summary of Contents for Krone EasyCut F 320 M
- Page 1 Original Operating Instructions Document no.: 150000808_01_us Front Mounted Mower EasyCut F 320 M From machine no.: 976393...
- Page 2 3363 Miac Cove Memphis, TN 38181-0880 Memphis, TN 38118 Phone +1 901 842-6011 +1 901 842-6016 E-mail info@krone-northamerica.com Internet www.krone-northamerica.com Information for enquiries and orders Year Machine no. Type Contact data of your dealer EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 3: Table Of Contents
Lubricating greases ........................ 33 Control and Display Elements .................... 34 Hydraulic control units of the tractor .................. 34 Commissioning ........................ 35 Checklist for initial operation ...................... 35 Mounting coupling triangle ...................... 36 EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 4 Maintenance - Cutterbar...................... 69 14.1 Rotary hub .......................... 69 14.2 Replacing the shear bolt at the rotary hub ................. 70 14.3 Check/change blades ........................ 71 14.3.1 Checking the blade for wear ...................... 71 EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 5 Checking/replacing linings on cutterbar .................. 78 14.8 Checking oil level ........................ 79 Maintenance - Lubrication ...................... 82 15.1 Lubricating universal shaft ...................... 82 15.2 Lubrication chart - Machine ....................... 83 Storage............................ 86 Waste disposal......................... 88 Index............................ 89 EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 6: Information On This Document
Information on This Document Validity This document is valid for machines of type: EasyCut F 320 M All information, illustrations and technical data in this document correspond to the latest state at the time of publication. We reserve the right to make design changes at any time and without notification of reasons. -
Page 7: Figures
H = height, L = length) Left-hand side of the machine Right-hand side of the machine side Direction of travel Moving direction Reference line for visible material Reference line for covered mater- Centre line Cable routes EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 8 When cleaning with compressed air, dirt particles are ejected at high speed and could get into the eyes. Therefore eyes could be hurt. „ Keep people away from the working area. „ Wear personal protective equipment when performing cleaning work with compressed air (e.g. eye protection). EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 9: Conversion Table
Pressure Kilopascal 0.1450 Pounds per square inch Megapascal 145.0377 bar (non-SI) 14.5038 Torque Newtonmeter 0.7376 pound-foot or ft∙lbf foot-pound 8.8507 pound-inch or in∙lbf inch-pound Temperature Degrees Celsius °C °Cx1.8+32 Degrees °F Fahrenheit EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 10 Kilometres per km/h 0.6215 Miles per hour hour Volumes Litres 0.2642 US gallon US gal. Millilitre 0.0338 US ounce US oz. Cubic centi- cm³ 0.0610 Cubic inch in³ metre Weight Kilogram 2.2046 Pound EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 11 Information on This Document How to use this document This page has been left blank deliberately. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 12: Safety
• Attachment of unauthorised or unapproved additional equipment • Use of spare parts which are not KRONE original spare parts • Stationary operation of the machine Unauthorised modifications to the machine may affect the properties of the machine or disrupt proper operation. -
Page 13: Service Life Of The Machine
He has read the operating instructions and can implement the information in the operating instructions accordingly. • He is familiar with driving vehicles safely. • For road travel he has adequate knowledge of the highway code and has the stipulated driving licence. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 14: Personnel Qualification Of The Technicians
Additional equipment and spare parts that do not correspond to the requirements of the manufacturer may affect the operational safety of the machine and cause accidents. „ To ensure operational safety, use original parts or standard parts which correspond to the requirements of the manufacturer. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 15: Jobs On The Machine
„ Immediately eliminate potential causes of damage, for example heavy soiling, or tighten slack screws. „ In case of damage which may affect operational safety and cannot be repaired according to these operating instructions: Have damage repaired by a qualified service centre. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 16: Danger Zones
„ Ensure sufficient overlap of section tube and universal shaft guards. „ Make sure that the universal shaft guards are mounted and that they are fully functional. „ Allow the universal shaft locks to engage. EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 17 „ In case of dangerous situations, immediately switch off drives and instruct persons to leave the danger zone. Danger zone due to trailing machine parts If machine parts are trailing, people may be seriously injured or killed. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 18: Ensuring Functionality Of Safety Devices
„ Make sure every time after cleaning the safety labels that they are complete and legible. „ Immediately replace missing, damaged and unrecognizable safety labels. „ Provide spare parts with intended safety labels. Descriptions, explanations and order numbers of safety labels,refer to page 25. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 19: Road Safety
„ Do not move the machine from working position to transport position or from transport position to working position as long as the machine is used across a slope. „ Do not park the machine on slopes. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 20: Parking The Machine Safely
„ Check and clean the machine every day before using it for the first time. „ Check and clean the machine regularly during the working day. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 21: Sources Of Danger On The Machine
„ Specify rules for the use of hearing protection and for the working time. „ During operation keep windows and doors of cabin closed. „ Remove hearing protection for road travel. EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 22 Transfer gearbox • Mower gearbox • Belt gearbox • Hydraulic system • Cutter bar „ Maintain a sufficient distance from hot surfaces. „ Leave machine parts to cool down and wear protective gloves. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 23: Dangers In Connection With Certain Activities: Working On The Machine
Frame or supporting components • Running gear „ Before carrying out welding work on the machine, obtain consent by KRONE customer service and, if required, identify alternatives. „ Before performing welding work on the machine, park the machine safely and disconnect it from the tractor. -
Page 24: Behaviour In Dangerous Situations And In Case Of Accidents
„ Before working on or under raised machine parts: Secure machine or machine parts against lowering by means of hydraulic shut-off device (e.g. stop cock) on machine side. „ Before working on or under raised machine parts: Safely support machine or machine parts. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 25: Carrying Out Oil Level Check And Oil And Filter Element Changes Safely
Safety Labels on the Machine Every safety label is provided with an order number and can be ordered directly from the authorised KRONE dealer. Immediately replace missing, damaged and unrecognisable safety labels. When attaching safety labels, the contact surface on the machine must be clean and free of dirt, oil and grease to ensure optimum adhesion of the labels. - Page 26 Safety Safety Labels on the Machine Position and meaning of safety labels KM000-295 EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 27 4. Order No. 27 002 058 0 (4x) WARNING Cutting blade continue to rotate after PTO has been disengaged. To avoid personal injury. Look & listen for rotation to stop. Do not open cover until all components have stopped. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 28 DANGER Thrown objects can cause serious injury or death. • Stay clear of machine while in operation. • Keep discharge chute and shields in place. • Replace worn or damaged protective skirting. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 29: Safety Features
PTO shaft if the overload clutch engages continuously. Road travel lighting • The road travel lighting is used for road safety. • Before driving on roads, switch on the road travel lighting and ensure that it functions properly. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 30: Machine Description
Main gearbox Intermediate universal shaft Guard cloth Friction clutch Blade key Cutterbar Mower gearbox Labelling INFORMATION The entire identification plate represents a legal document and should not be altered or rendered illegible! EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 31: Intermediate Universal Shaft
KMG000-014 The intermediate universal shaft (1) for the mower drive is connected with the friction clutch (2) towards the input gearbox. The friction clutch protects the tractor and the machine from damage. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 32: Technical Data
Complying with change intervals for biooils To ensure high life expectancy of the machine, it is absolutely necessary to comply with change intervals for biooils due to the ageing of the oils. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 33: Oils
51818 of NLGI class 2, Li soap with EP additives Lubricate the manual lubrication point until grease escapes at the bearing position. After lubricating, remove the grease escaping from the bearing position. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 34: Control And Display Elements
Pressure Lifts the mower from the working position into the transport position. For the "Hydraulic side guards" version (2+) Double-acting control unit (2+/2-) Raises the side guards. (2-) Lowers the side guards. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 35: Commissioning
ü The universal shaft length has been checked and adjusted, refer to page 37. ü The blades have been inserted, refer to page 71. ü The hydraulic system has been vented. ü The friction clutch has been vented, refer to page 63. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 36: Mounting Coupling Triangle
„ Push the universal shaft (3) with the full guard (2) onto the PTO shaft end of the input gearbox until the fuse engages. „ Secure the full guard (2) against turning by using the pipe clamp (4). „ Place the universal shaft (3) on the universal shaft bracket (1). EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 37: Mounting Lighting System
(shift length) of the profile tubes and guard tubes of at least 200 mm, refer to the operating instructions of the universal shaft manufacturer. „ Check the overlap of profile tubes and guard tubes. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 38: Start-Up
If an unsuitable spring cotter pin is used to secure the coupling triangle, the coupling triangle (Weiste triangle) may disconnect unintentionally and cause serious accidents. „ Only use suitable spring cotter pin to secure the coupling triangle. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 39: Adjusting Lower Link Extensions
„ Check the clearance of the front wheels at all steering angles. If the guards or swath flaps come into contact with the front wheels of the tractor, mount the lower link extensions between the lower links and the coupling triangle, refer to page 39. Adjusting lower link extensions KM000-253 EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 40: Checking/Setting Parallel Lifting
„ To prevent damage, the machine must be aligned in parallel with the ground when it is lifted. „ Whenever mounting the machine again, check the parallelism of the machine to the ground when it is lifted. KM000-254 EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 41: Mounting Relief Springs
(6) of the lower link of tractor). „ If the support (2) is used to attach the relief spring, secure the support with the linch pin (1). „ The relief springs must be attached equally on both sides. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 42: Connecting Hydraulic Hoses
Short circuit caused by impurities and moisture in the plug connection The machine may be damaged by a short circuit. „ Make sure that the plugs and sockets are clean and dry. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 43: Installing Universal Shaft
„ Slide universal shaft (1) on PTO shaft end of tractor and secure it. „ Secure universal shaft guard by means of supporting chain (2) against turning. „ Swivel the universal shaft support under the holder. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 44: Checking Front End Dimension
If the front end dimension “A” 3.5 m is exceeded, the road safety must be ensured by means of suitable aids (for example instructing accompanying person or mirror at the intersections), refer to the leaflet for accessory equipment issued by Federal Minister of Transport. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 45: Operation
„ Connect the guard cloths of the front guard and the side guard using the turnlock fasteners. 8.1.1 Folding up the front guard The front guard can be folded up for maintenance and repair work. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 46: Fold Down The Front Guard
ü The machine is in the working position, refer to page 48. ü The machine is shut down and safeguarded, refer to page 24. „ Fold down the front guard cloth (1). „ Close the turnlock fasteners (3). EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 47: Side Guard - For The "Series" Version
„ To fold down the side guard (1), pull the side guard out of the latch with the locking (2) pulled and fold it down. „ Secure the guard cloths by means of the turnlock fasteners (3). EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 48: Side Guard - For Version With "Hydraulically Folding Side Guards
„ Move the control unit for the front hydraulics into the float position until the mower has been lowered into the working position. „ Move the control unit for the front hydraulics into the float position for mowing. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 49: Raising Machine From Working Position To Transport Position
„ To ensure a clean cutting pattern, adjust the driving and cutting speeds to the prevailing conditions (soil condition, state of the crop, height, density). INFORMATION Leave the control unit for front hydraulics in the float position during mowing. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 50: Driving And Transport
Even with a fitted rear-mounted device, the front axle of the tractor must always be loaded with a minimum 20% tare weight of the tractor. „ Make sure before starting to move that these requirements have been met. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 51: Preparing Machine For Road Travel
ü The mower was lifted into the transport position via the front hydraulics, refer to page 49. ü The front hydraulics have been blocked, e.g. via a stop cock. Switching off the machine KMG000-019 EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 52 „ Release the locking from the holder. „ Lower the front linkage hydraulically until the triangle linkage of the tractor is under the holder of the machine. „ Carefully move out of the holder by reversing the tractor. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 53: Settings
ð Top link longer = smaller cutting height ð Top link shorter = greater cutting height For version with “high-cut skids” The cutting height can be increased by means of high-cut skids. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 54: Telescopic Top Link
„ Turn the top link until the cutting height is set. ð Top link longer = smaller cutting height ð Top link shorter = greater cutting height „ Tighten the counter nuts (2,3). EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 55: Adjusting The Relief Spring(S)
„ To increase the ground pressure in the front cutterbar area, attach the relief springs (1) lower in the perforated bar (2). If the relief springs are attached too low, the mower will have too much weight on the ground in front. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 56: Increasing/Reducing Ground Pressure
If the relief springs are hooked in too low, the front part of the mower will have too much weight on the ground. Increasing/reducing ground pressure via perforated bars Borehole (I) = maximum mower relief = minimum ground pressure Borehole (VI) =minimum mower relief = maximum ground pressure EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 57: Setting The Side Guards
„ Fold up the side guards (1),refer to page 47 „ Loosen the screws (4). „ Set the height of the side guard (1) by means of the console (3). „ Tighten the screws (4). EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 58: Maintenance - General Information
Main gearbox refer to page 67 Cutterbar refer to page 79 Components Changing/replacing blades refer to page 71 Check/replace cutting discs/mower drums refer to page 77 Check/replace retaining bolt (blade screw con- refer to page 74 nection) EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 59: Maintenance - Every 10 Hours, But At Least Once A Day
Maintenance - Every 200 hours Changing oil Input gearbox refer to page 66 Main gearbox refer to page 67 11.1.6 Maintenance - Every 6 years Components Have the hydraulic hoses replaced by your KRONE service partner EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 60: Tightening Torques
The table does not apply to countersunk screws with hexagon socket in case the countersunk screw is tightened via hexagon socket. DV000-001 Thread size Strength class on screw head Strength class 10.9 12.9 Tightening torque (Nm) 1,050 1,220 1,100 1,550 1,800 1,450 2,100 2,450 EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 61 Metric thread screws with countersunk head and hexagon socket INFORMATION The table applies only to countersunk screws with hexagon socket and metric thread tightened via hexagon socket. DV000-000 Thread size Strength class on screw head EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 62 Maximum tightening torque (Nm) (±10 %) M10x1 M12 x 1.5 G1/4“ M14 x 1.5 M16 x 1.5 45 M18 x 1.5 50 M20 x 1.5 G1/2“ M22X1.5 M24x1.5 G3/4“ M33x2 G1“ M42x1.5 G1 1/4“ EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 63: Deviating Tightening Torques
„ Never intervene in the overload protection. „ Only use KRONE original spare parts. The friction clutch protects the tractor and the machine from damage. The friction clutch must be vented before starting up for the first time and once a year. The friction clutch is designed with a permanently adjusted turning torque M . -
Page 64: Checking Guard Cloths
„ Carry out a visual inspection of the guard cloth (1) to ensure that there are no cracks and damage. Æ The machine can be used when there are no cracks or damages. Æ Replace guard cloths in case of cracks or damage. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 65: Maintenance - Hydraulic System
If oil and used oil filters are not stored and disposed of properly, the environment may be damaged. „ Store or dispose of used oil and oil filters according to statutory provisions. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 66: Maintenance - Gearbox
„ Refill with fresh oil up to the inspection hole (1) via the filling hole (3). „ Screw on the locking screw of the inspection hole (1) and the locking screw of the filling hole (3), tightening torque refer to page 62. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 67: Main Gearbox
„ Refill with fresh oil up to the inspection hole (1) via the filling hole (3). „ Screw on the locking screw of the inspection hole (1) and the locking screw of the filling hole (3), tightening torque refer to page 62. EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 68 „ Refill with fresh oil up to the inspection hole (1) via the filling hole (3). „ Screw the locking screw into the inspection hole (1) and the locking screw into the filling hole (3), tightening torque refer to page 62. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 69: Maintenance - Cutterbar
• The nuts (2) with left-handed thread (LH) have distinctive grooves (a) on the bevel. • The pinion shafts (4) with left-handed thread (LH) have a distinctive groove (b) on the face. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 70: Replacing The Shear Bolt At The Rotary Hub
„ Dismount the nut (2) by using the special key (10) included with delivery. „ Dismount the hub (1). „ Remove the damaged shear pins (3). „ Check the nut and the hub for damage. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 71: Check/Change Blades
Maintenance - Cutterbar Check/change blades 14.3 INFO : Replace damaged parts by KRONE original spare parts. „ Fill the space above the bearing with grease (c). „ Place the hub on the pinion shaft. INFO : Observe the position of the shear pins. The slots of the shear pins (3) must be mounted facing each other horizontally, see detail (I). -
Page 72: Changing Blades For The "Blade Screw Connection" Version
„ Insert the new blade (5) between the wear skid (2) and the cutting disc (1). „ Insert the retaining bolt (3) from below through the wear skid (2), the blade (5) and the cutting disc (1). EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 73: Changing Blades For The "Blade Quick Fastener" Version
„ Repeat the process for all blades. „ Fold down the front guard. INFORMATION Clockwise rotating blades can be ordered by stating order number 00 139 889 *. Anticlockwise rotating blades can be ordered by stating order number 00 139 888 *. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 74: Checking/Replacing Retaining Bolts
Section (1.1) of the gauge (1) is used to check the material thickness of the retaining bolts. Section (1.2) of the gauge (1) is used to check the contour of the blade carriers. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 75: Checking/Replacing Blade Carrier
„ The blade carriers must be replaced at the latest when the application seam (1) is worn at one point. „ The blade carriers must only be replaced by KRONE original spare parts. EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 76 „ Remove the blades. „ Clean the area to be checked. „ Slide the gauge (1) with the section (1.2) as far as it will go over the retaining bolt of the blade carrier (2). EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 77: Checking/Replacing Cutting Discs/Mower Drums
„ The cutting discs/mower drums must be checked at least once a day or after contact with foreign objects. „ If cutting discs/mower drums are deformed, the dimension X=48 mm must not be exceeded. „ The cutting discs/mower drums must only be replaced by KRONE original spare parts. KM000-042 EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 78: Checking The Wear Limit On Cutting Discs/Mower Drums
„ The cutting discs/mower drums must be replaced at the latest when the material thickness is below the minimum material thickness of 3 mm. „ The cutting discs/mower drums must only be replaced by KRONE original spare parts. KM000-043 14.7... -
Page 79: Checking Oil Level
INFORMATION There is no need to change the oil on the cutterbar. Before checking the oil level on the cutterbar, the cutterbar must be aligned levelly by means of a spirit level. EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 80 If the oil does not reach the inspection hole (1): „ Top up new oil via the inspection hole (1) up to the inspection hole (1). „ Mount the locking screw of the inspection hole (1),refer to page 62. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 81 Maintenance - Cutterbar Checking oil level 14.8 This page has been left blank deliberately. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 82: Maintenance - Lubrication
ü The machine is shut down and safeguarded, refer to page 24. „ Observe operating instructions of the universal shaft manufacturer. „ Lubricate the universal shaft with multi-purpose grease at the intervals indicated in the figure. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 83: Lubrication Chart - Machine
The types of lubrication are marked by means of icons in the lubrication chart, refer to table. Type of lubrication Lubricant Comment Grease Multi-purpose grease „ Apply two strokes of lubricating grease from the grease gun per grease nipple. „ Remove excess lubricating grease at the grease nipple. EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 84 Maintenance - Lubrication 15.2 Lubrication chart - Machine KM000-329 EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 85 Maintenance - Lubrication Lubrication chart - Machine 15.2 Every 20 operating hours EasyCut F 320 M Original Operating Instructions 150000808_01_en...
-
Page 86: Storage
„ Touch up damaged paint and preserve all uncoated areas thoroughly with rust protection agent. „ Check all moving components for smooth running. If necessary remove, clean, grease and remount. „ If parts need to be replaced, use KRONE original spare parts only. EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 87 Write down all repair jobs which must be performed by the next harvest and arrange for them to be done with sufficient lead time. Your KRONE dealer is better able to perform maintenance service and any required repairs outside of harvest season.
-
Page 88: Waste Disposal
All synthetic materials must be brought to a recycling centre for synthetic materials. Rubber • Rubber parts (hoses, tyres, …) must be brought to a rubber recycling centre. Electronic scrap • All electronic parts must be brought to a disposal point for electronic scrap. EasyCut F 320 M Original Operating Instructions 150000808_01_en... -
Page 89: Index
Connecting the machine........14 Consumables ..........20, 32 Contact ..............2 Contact data of your dealer ........2 Control and Display Elements ......34 Conversion table ..........9 Cross references ..........6 EasyCut F 320 M Original Operating Instructions 150000808_01_en... - Page 90 Folding down side guard (working position) . 47, 48 Lubrication chart - Machine ........ 83 Folding up side guard (transport position) ..47, 48 Folding up the front guard ........45 Front guard ............45 EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 91 Notes with information and recommendations ..9 Oils ..............33 Only perform work when the machine is at standstill ............. 23 Operation............45 Operation is only allowed after proper start-up .. 15 Operational safety: Technically sound condition 15 EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 92 Technically sound state of the machine ..... 15 Telescopic top link ..........54 Term “machine” ............ 7 Tightening torques..........60 Unattended parking ..........20 Unsuitable consumables ........20 Validity ..............6 Venting the friction clutch ........63 EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 93 This page has been left blank deliberately. EasyCut F 320 M Original Operating Instructions 150000808_01_en...
- Page 94 Maschinenfabrik Bernard Krone GmbH & Co. KG * Heinrich-Krone-Straße 10 D-48480 Spelle * Postfach 11 63 D-48478 Spelle ' +49 (0) 59 77 / 935-0 6 +49 (0) 59 77 / 935-339 ü www.landmaschinen.krone.de...
