8
Operation
8.2
Operating support jack
8.2.3

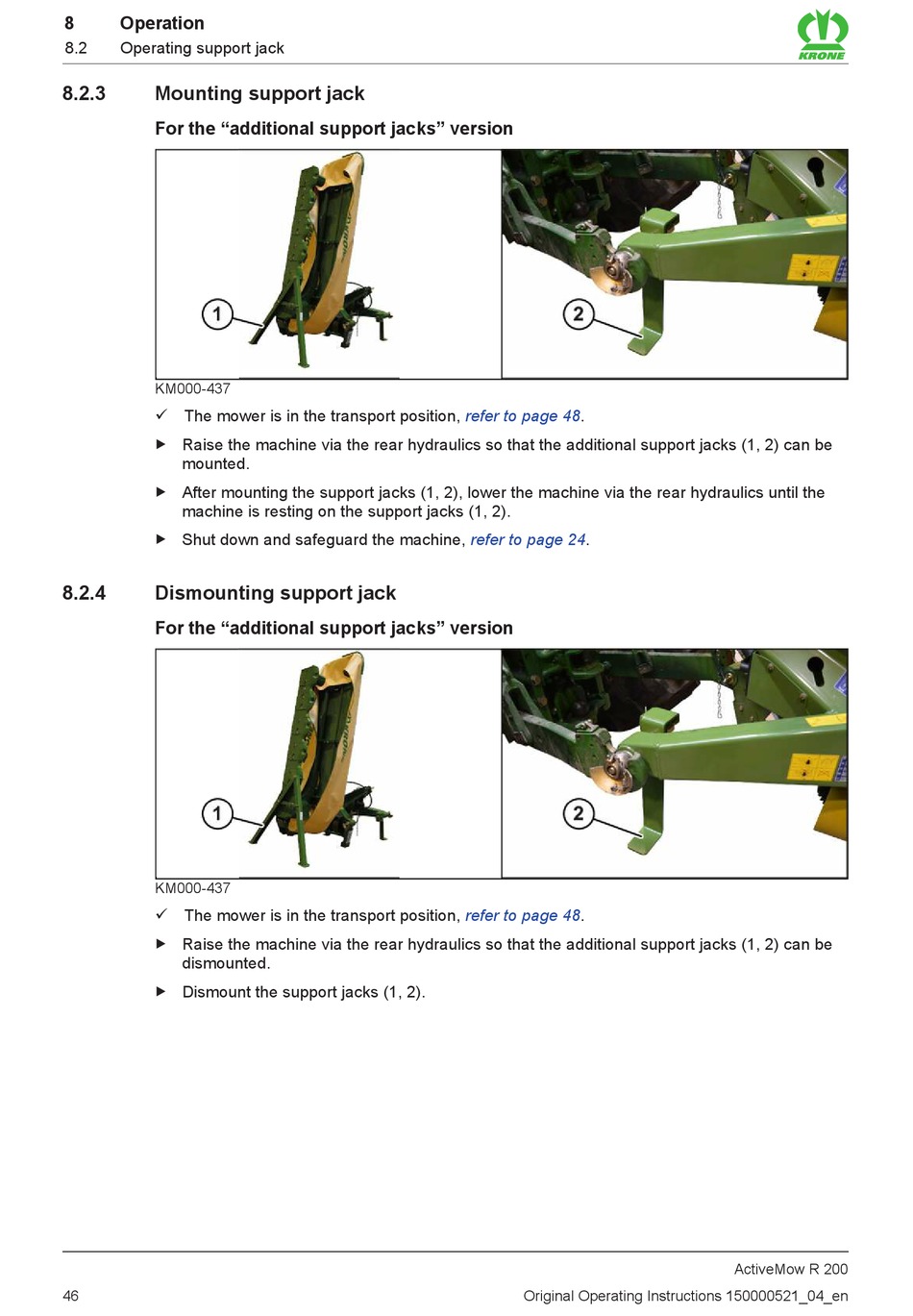

Mounting support jack

For the "additional support jacks" version
KM000-437
ü The mower is in the transport position,
„ Raise the machine via the rear hydraulics so that the additional support jacks (1, 2) can be
mounted.
„ After mounting the support jacks (1, 2), lower the machine via the rear hydraulics until the
machine is resting on the support jacks (1, 2).
„ Shut down and safeguard the machine,
8.2.4

Dismounting support jack

For the "additional support jacks" version
KM000-437
ü The mower is in the transport position,
„ Raise the machine via the rear hydraulics so that the additional support jacks (1, 2) can be
dismounted.
„ Dismount the support jacks (1, 2).
46
refer to
page 48.
refer to
page 24.
refer to
page 48.
Original Operating Instructions 150000521_04_en
ActiveMow R 200
