15

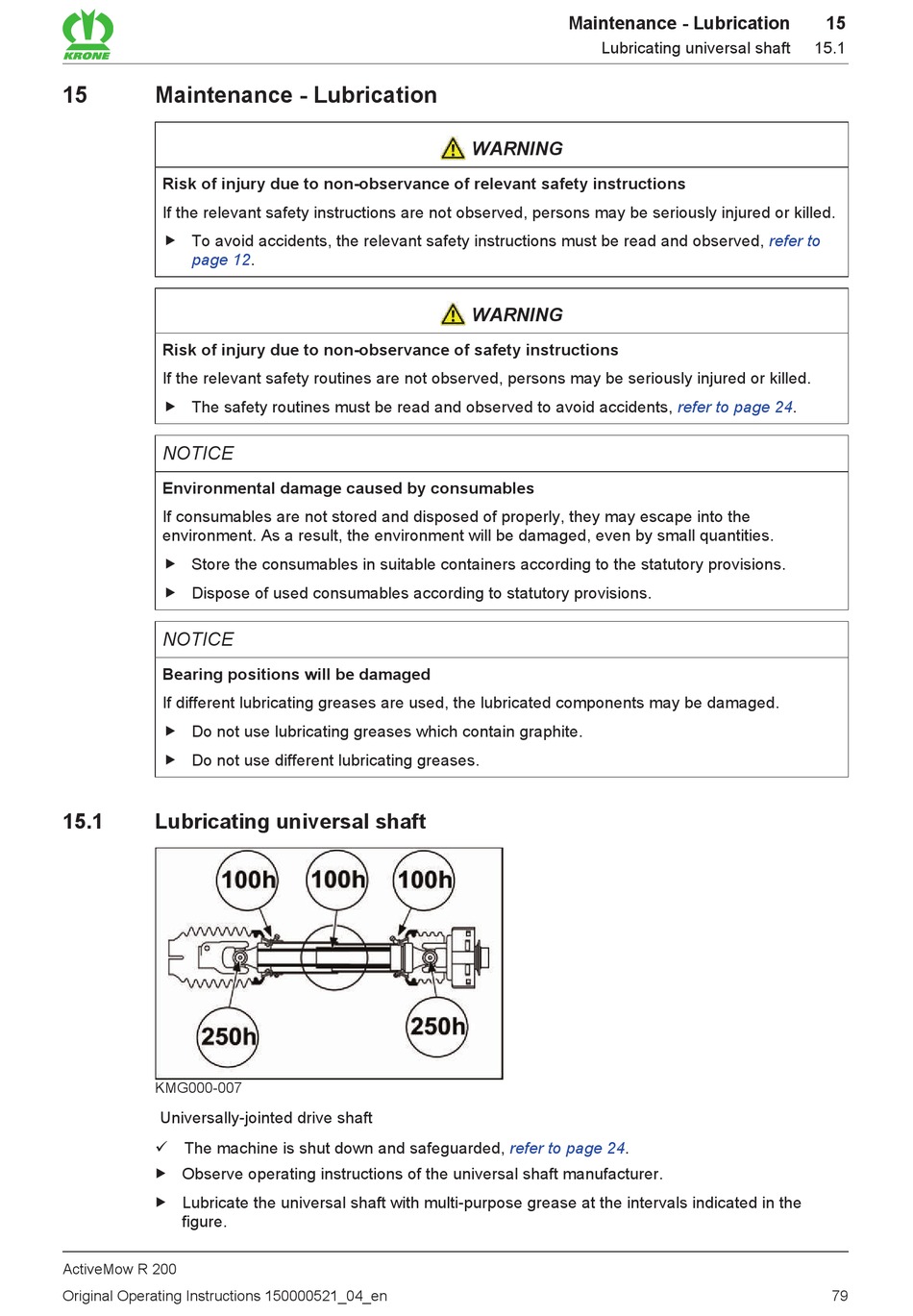

Maintenance - Lubrication

Risk of injury due to non-observance of relevant safety instructions
If the relevant safety instructions are not observed, persons may be seriously injured or killed.
„ To avoid accidents, the relevant safety instructions must be read and observed,
page 12.
Risk of injury due to non-observance of safety instructions
If the relevant safety routines are not observed, persons may be seriously injured or killed.
„ The safety routines must be read and observed to avoid accidents,
NOTICE
Environmental damage caused by consumables
If consumables are not stored and disposed of properly, they may escape into the
environment. As a result, the environment will be damaged, even by small quantities.
„ Store the consumables in suitable containers according to the statutory provisions.
„ Dispose of used consumables according to statutory provisions.
NOTICE
Bearing positions will be damaged
If different lubricating greases are used, the lubricated components may be damaged.
„ Do not use lubricating greases which contain graphite.
„ Do not use different lubricating greases.
15.1

Lubricating universal shaft

KMG000-007
Universally-jointed drive shaft
ü The machine is shut down and safeguarded,
„ Observe operating instructions of the universal shaft manufacturer.
„ Lubricate the universal shaft with multi-purpose grease at the intervals indicated in the
figure.
ActiveMow R 200
Original Operating Instructions 150000521_04_en
Maintenance - Lubrication
Lubricating universal shaft
WARNING
WARNING
refer to
page 24.
15
15.1
refer to
refer to
page 24.
79
