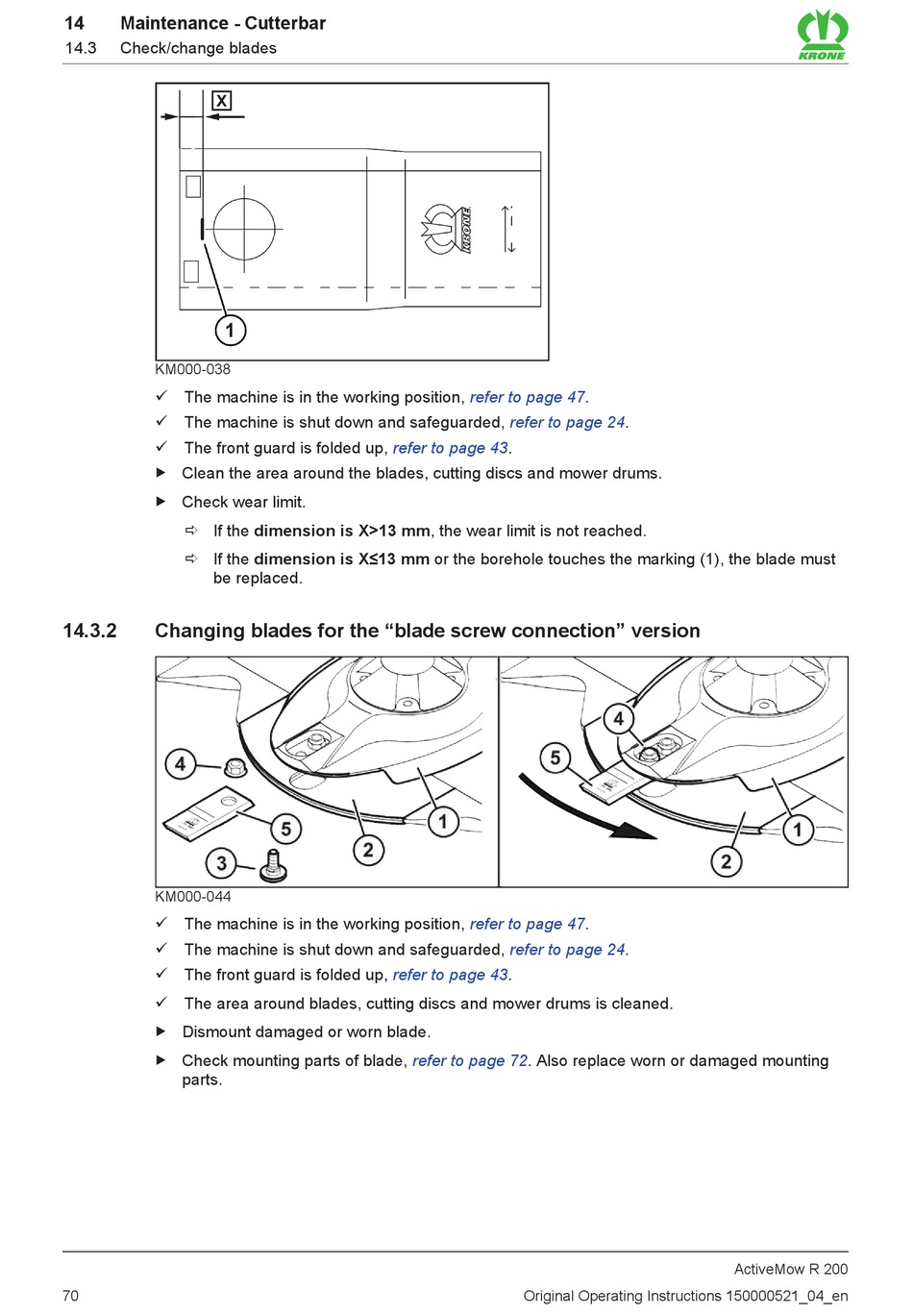

14 Maintenance - Cutterbar
14.3 Check/change blades
KM000-038
ü The machine is in the working position,
ü The machine is shut down and safeguarded,
ü The front guard is folded up,
„ Clean the area around the blades, cutting discs and mower drums.
„ Check wear limit.
ð If the dimension is X>13 mm, the wear limit is not reached.
ð If the dimension is X≤13 mm or the borehole touches the marking (1), the blade must
be replaced.
14.3.2

Changing blades for the "blade screw connection" version

KM000-044
ü The machine is in the working position,
ü The machine is shut down and safeguarded,
ü The front guard is folded up,
ü The area around blades, cutting discs and mower drums is cleaned.
„ Dismount damaged or worn blade.
„ Check mounting parts of blade,
parts.
70
refer to page 47.
refer to
refer to page 43.
refer to page 47.
refer to
refer to page 43.
refer to page 72. Also replace worn or damaged mounting
Original Operating Instructions 150000521_04_en
page 24.
page 24.
ActiveMow R 200
