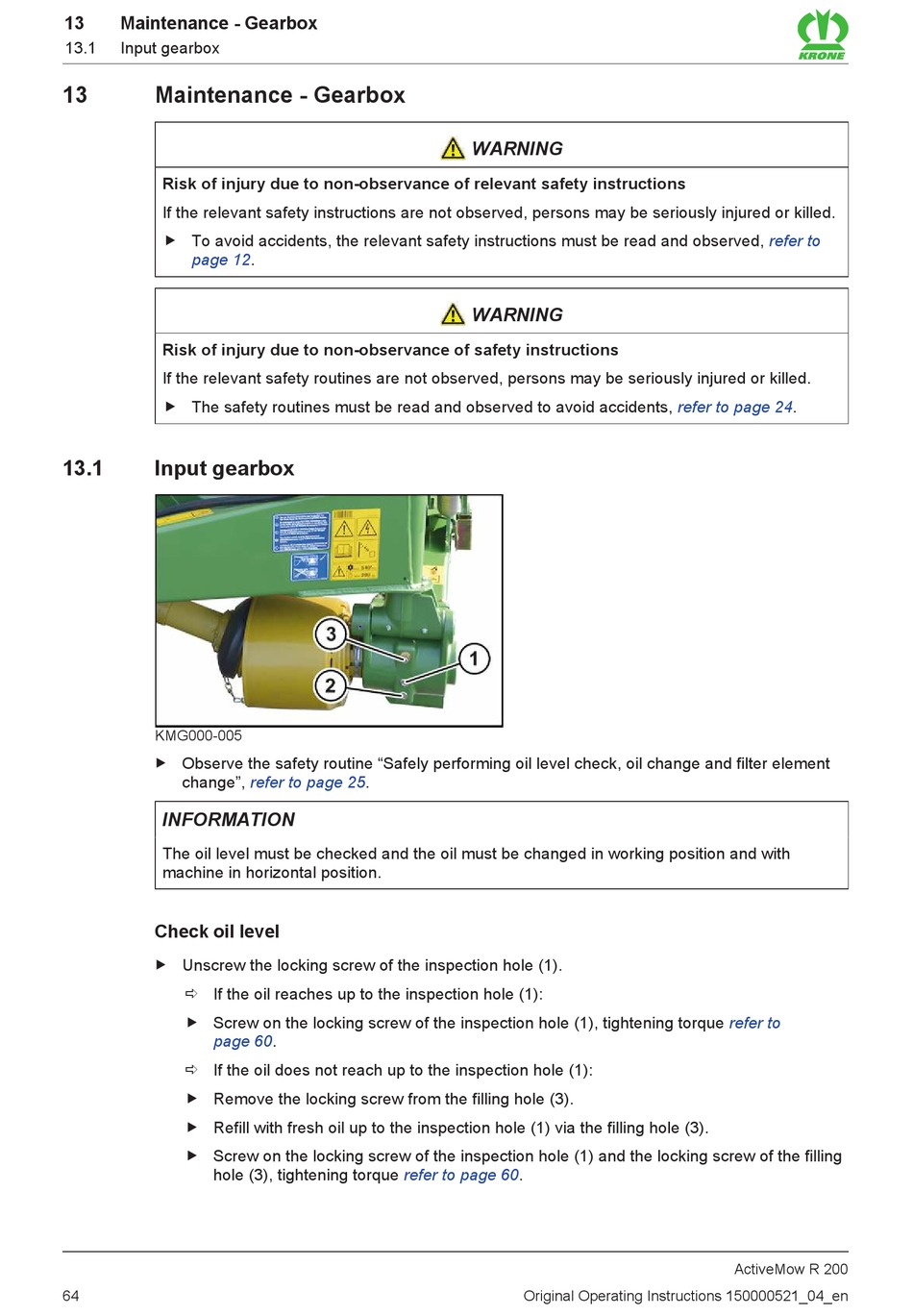

Maintenance - Gearbox; Input Gearbox - Krone ActiveMow R 200 Operating Instructions Manual

13

Maintenance - Gearbox

13.1

Input gearbox

13 Maintenance - Gearbox
Risk of injury due to non-observance of relevant safety instructions
If the relevant safety instructions are not observed, persons may be seriously injured or killed.
„ To avoid accidents, the relevant safety instructions must be read and observed,
page 12.
Risk of injury due to non-observance of safety instructions
If the relevant safety routines are not observed, persons may be seriously injured or killed.
„ The safety routines must be read and observed to avoid accidents,
13.1 Input gearbox
KMG000-005
„ Observe the safety routine "Safely performing oil level check, oil change and filter element
change",
INFORMATION
The oil level must be checked and the oil must be changed in working position and with
machine in horizontal position.
Check oil level
„ Unscrew the locking screw of the inspection hole (1).
ð If the oil reaches up to the inspection hole (1):
„ Screw on the locking screw of the inspection hole (1), tightening torque
page 60.
ð If the oil does not reach up to the inspection hole (1):
„ Remove the locking screw from the filling hole (3).
„ Refill with fresh oil up to the inspection hole (1) via the filling hole (3).
„ Screw on the locking screw of the inspection hole (1) and the locking screw of the filling
hole (3), tightening torque
64
refer to page 25.
refer to
WARNING
WARNING
page 60.
Original Operating Instructions 150000521_04_en
refer to
refer to page 24.
refer to
ActiveMow R 200
