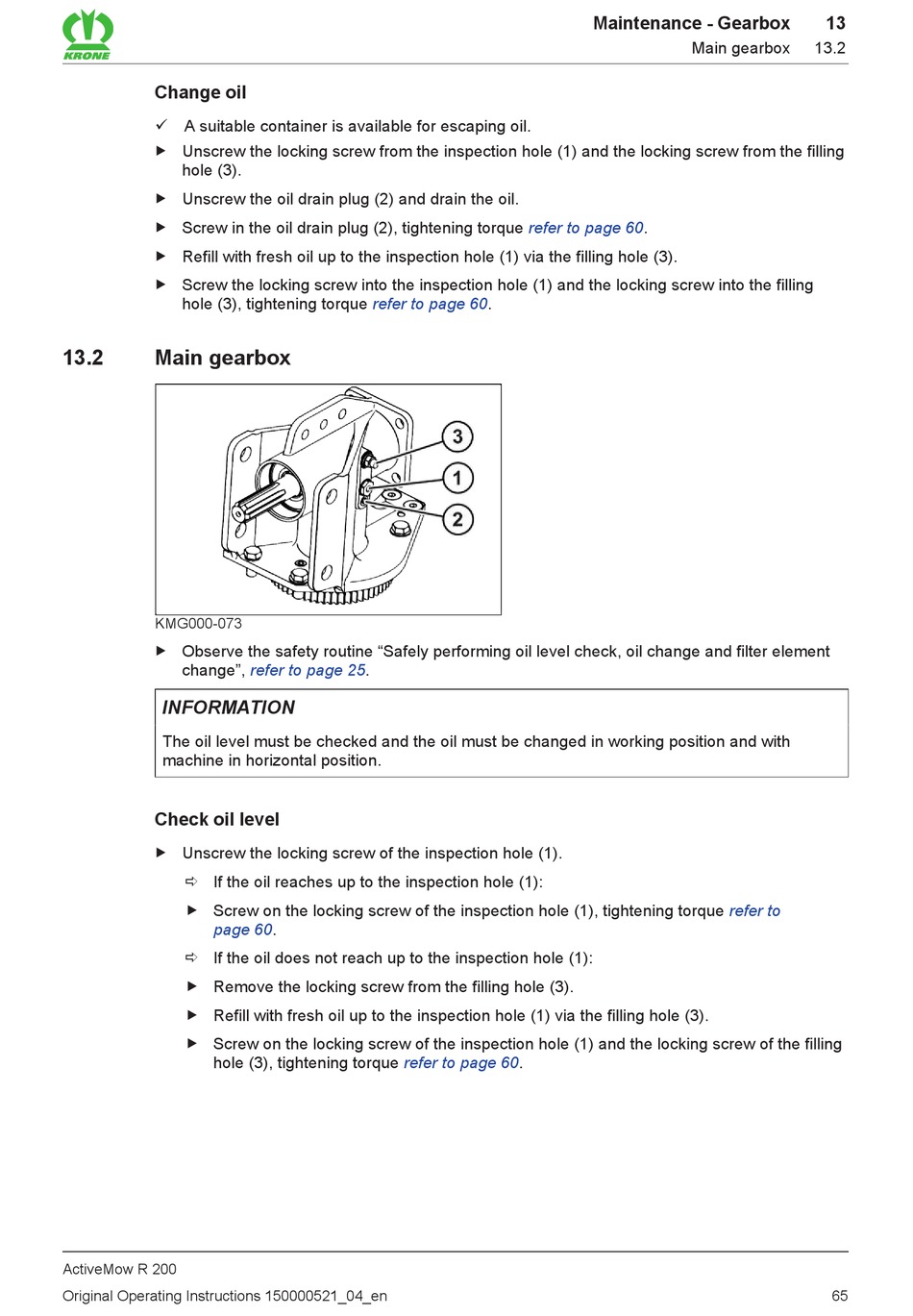

Main Gearbox - Krone ActiveMow R 200 Operating Instructions Manual

Change oil
ü A suitable container is available for escaping oil.
„ Unscrew the locking screw from the inspection hole (1) and the locking screw from the filling
hole (3).
„ Unscrew the oil drain plug (2) and drain the oil.
„ Screw in the oil drain plug (2), tightening torque
„ Refill with fresh oil up to the inspection hole (1) via the filling hole (3).
„ Screw the locking screw into the inspection hole (1) and the locking screw into the filling
hole (3), tightening torque
13.2

Main gearbox

KMG000-073
„ Observe the safety routine "Safely performing oil level check, oil change and filter element
change",
INFORMATION
The oil level must be checked and the oil must be changed in working position and with
machine in horizontal position.
Check oil level
„ Unscrew the locking screw of the inspection hole (1).
ð If the oil reaches up to the inspection hole (1):
„ Screw on the locking screw of the inspection hole (1), tightening torque
page 60.
ð If the oil does not reach up to the inspection hole (1):
„ Remove the locking screw from the filling hole (3).
„ Refill with fresh oil up to the inspection hole (1) via the filling hole (3).
„ Screw on the locking screw of the inspection hole (1) and the locking screw of the filling
hole (3), tightening torque
ActiveMow R 200
Original Operating Instructions 150000521_04_en
refer to
refer to page 25.
refer to
Maintenance - Gearbox
refer to page 60.
page 60.
page 60.
13
Main gearbox 13.2
refer to
65
