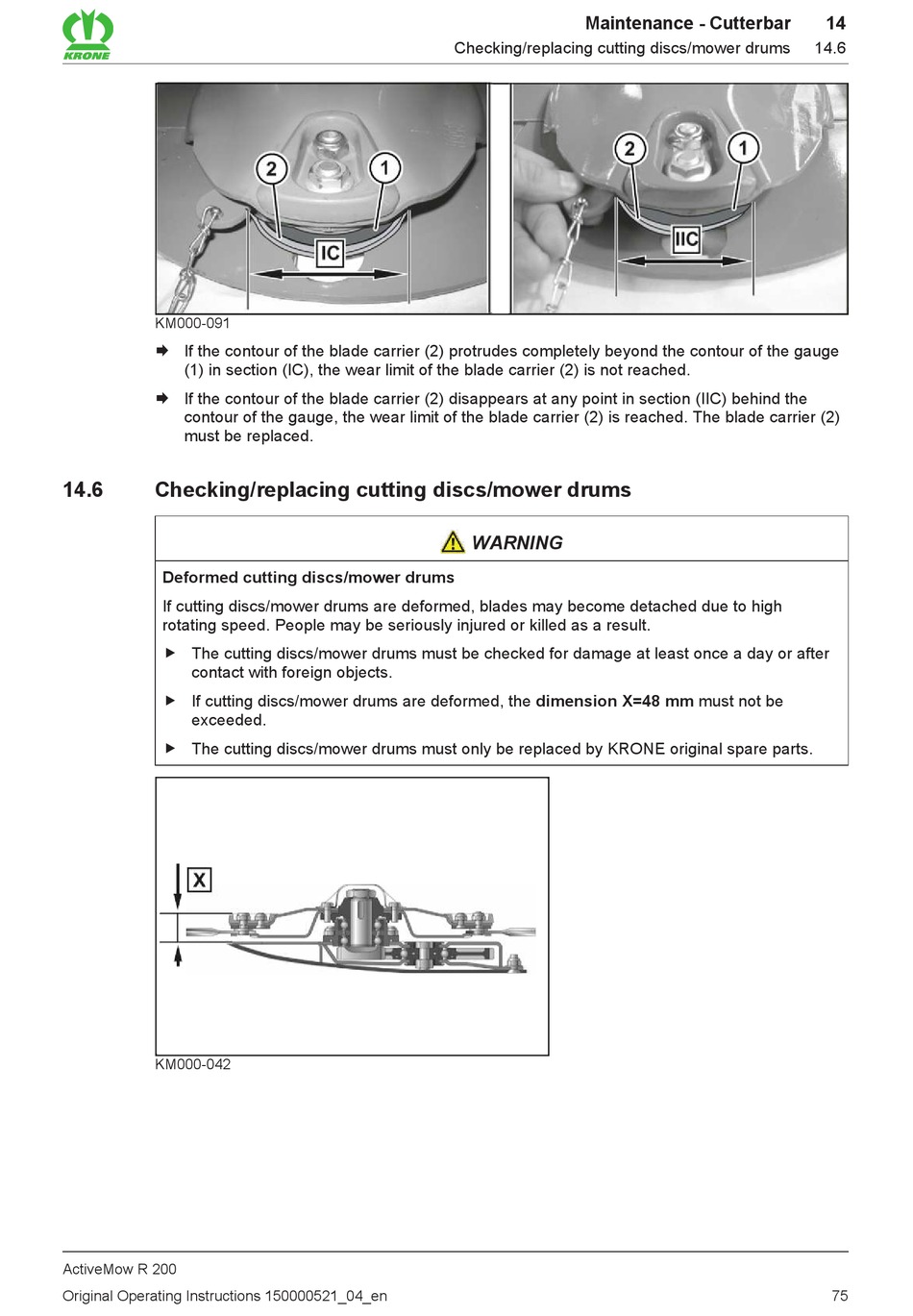

KM000-091
Æ If the contour of the blade carrier (2) protrudes completely beyond the contour of the gauge
(1) in section (IC), the wear limit of the blade carrier (2) is not reached.
Æ If the contour of the blade carrier (2) disappears at any point in section (IIC) behind the
contour of the gauge, the wear limit of the blade carrier (2) is reached. The blade carrier (2)
must be replaced.
14.6

Checking/replacing cutting discs/mower drums

Deformed cutting discs/mower drums
If cutting discs/mower drums are deformed, blades may become detached due to high
rotating speed. People may be seriously injured or killed as a result.
„ The cutting discs/mower drums must be checked for damage at least once a day or after
contact with foreign objects.
„ If cutting discs/mower drums are deformed, the dimension X=48 mm must not be
exceeded.
„ The cutting discs/mower drums must only be replaced by KRONE original spare parts.
KM000-042
ActiveMow R 200
Original Operating Instructions 150000521_04_en
Maintenance - Cutterbar
Checking/replacing cutting discs/mower drums
WARNING
14
14.6
75
