14 Maintenance - Cutterbar

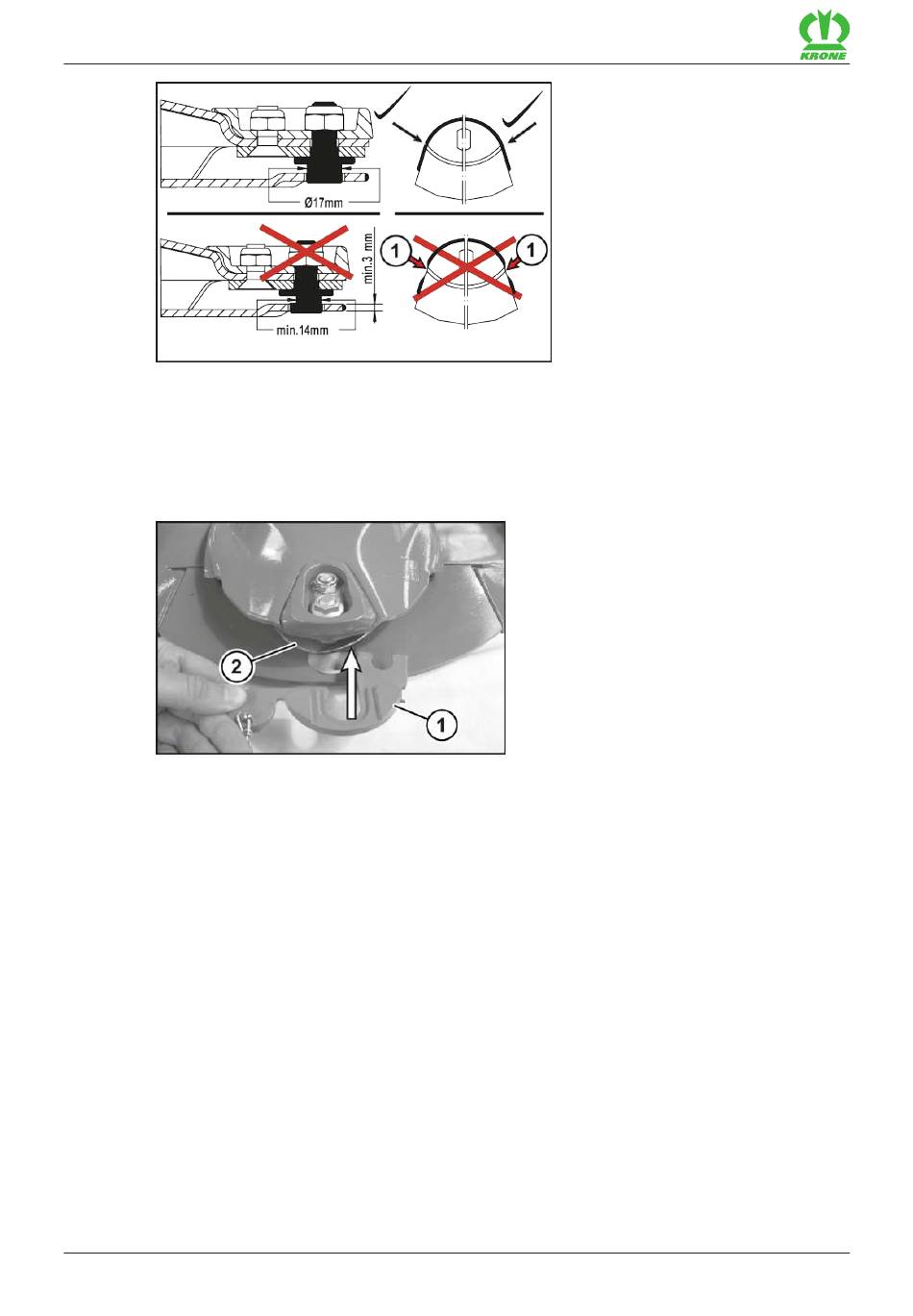

14.5 Checking/replacing blade carrier
KM000-041
With "Blade quick fastener" design
The material thickness of the retaining bolts and blade carriers is checked by means of gauge
(1) included with delivery. The gauge (1) is located on the special tool (2).
Section (1.1) of the gauge (1) is used to check the material thickness of the retaining bolts.
Section (1.2) of the gauge (1) is used to check the contour of the blade carriers.
KM000-090
„ Remove the blades.
„ Clean the area to be checked.
„ Slide the gauge (1) with the section (1.2) as far as it will go over the retaining bolt of the
blade carrier (2).
