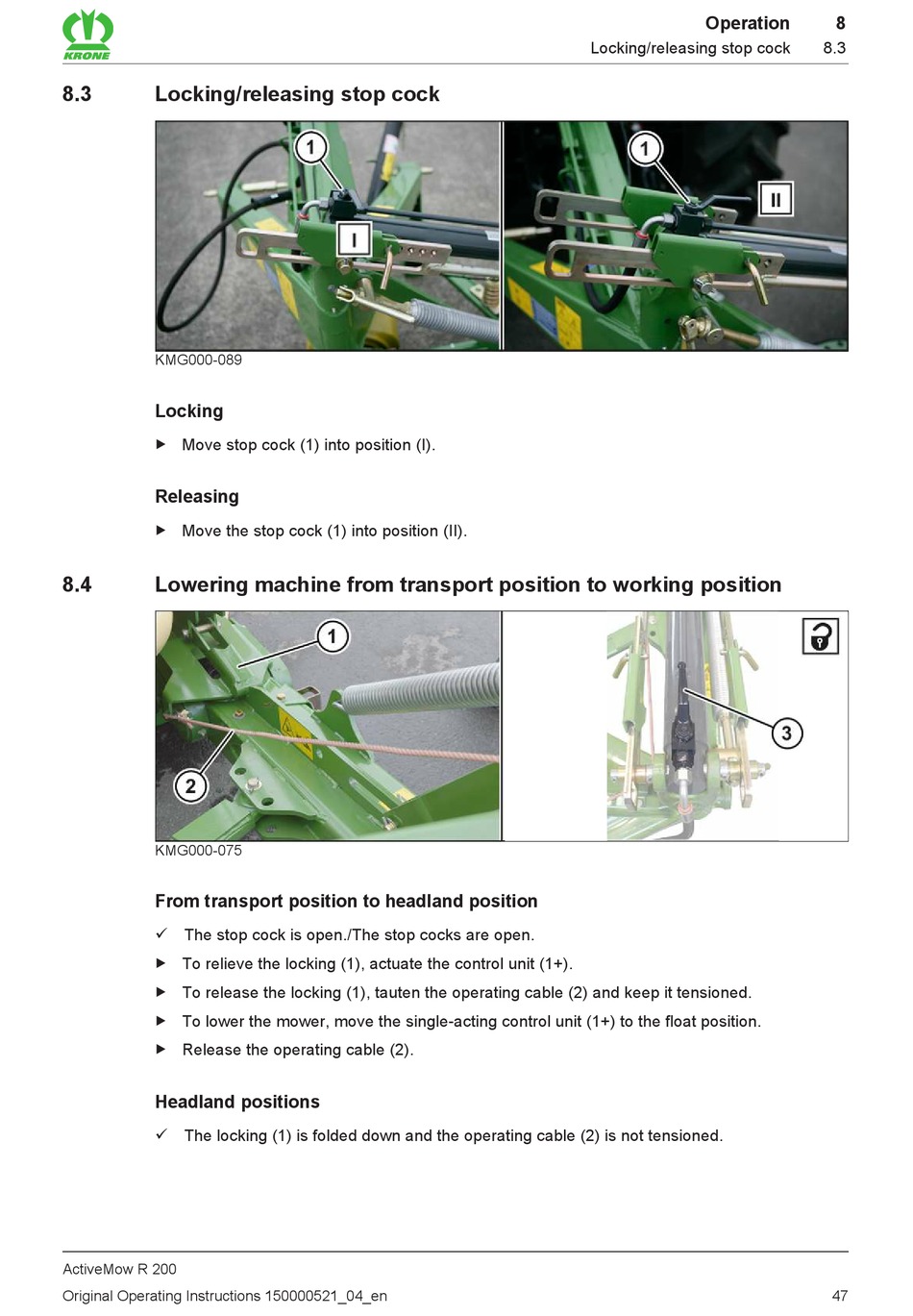

8.3

Locking/releasing stop cock

KMG000-089
Locking
„ Move stop cock (1) into position (I).
Releasing
„ Move the stop cock (1) into position (II).
8.4

Lowering machine from transport position to working position

KMG000-075
From transport position to headland position
ü The stop cock is open./The stop cocks are open.
„ To relieve the locking (1), actuate the control unit (1+).
„ To release the locking (1), tauten the operating cable (2) and keep it tensioned.
„ To lower the mower, move the single-acting control unit (1+) to the float position.
„ Release the operating cable (2).
Headland positions
ü The locking (1) is folded down and the operating cable (2) is not tensioned.
ActiveMow R 200
Original Operating Instructions 150000521_04_en
Operation
Locking/releasing stop cock
8
8.3
47
