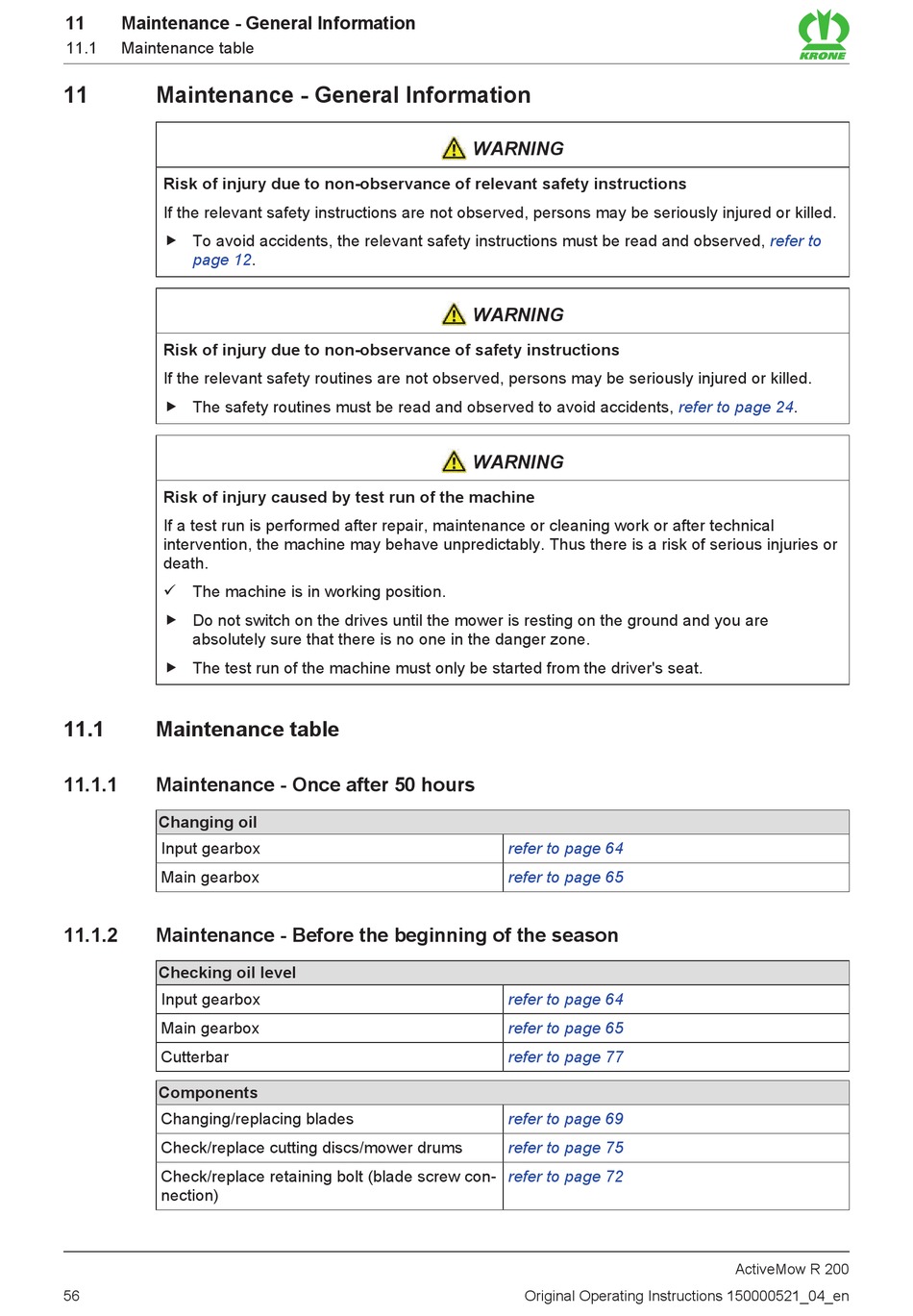

11
Maintenance - General Information
11.1
Maintenance table
11
Maintenance - General Information
Risk of injury due to non-observance of relevant safety instructions
If the relevant safety instructions are not observed, persons may be seriously injured or killed.
To avoid accidents, the relevant safety instructions must be read and observed,
page 12.
Risk of injury due to non-observance of safety instructions
If the relevant safety routines are not observed, persons may be seriously injured or killed.
The safety routines must be read and observed to avoid accidents,
Risk of injury caused by test run of the machine
If a test run is performed after repair, maintenance or cleaning work or after technical
intervention, the machine may behave unpredictably. Thus there is a risk of serious injuries or
death.
ü The machine is in working position.
Do not switch on the drives until the mower is resting on the ground and you are
absolutely sure that there is no one in the danger zone.
The test run of the machine must only be started from the driver's seat.
11.1
Maintenance table
11.1.1
Maintenance - Once after 50 hours
Changing oil
Input gearbox
Main gearbox
11.1.2
Maintenance - Before the beginning of the season
Checking oil level
Input gearbox
Main gearbox
Cutterbar
Components
Changing/replacing blades
Check/replace cutting discs/mower drums
Check/replace retaining bolt (blade screw con-
nection)
56
WARNING
WARNING
WARNING
refer to page 64
refer to page 65
refer to page 64
refer to page 65
refer to page 77
refer to page 69
refer to page 75
refer to page 72
Original Operating Instructions 150000521_04_en
refer to
refer to
page 24.
ActiveMow R 200
