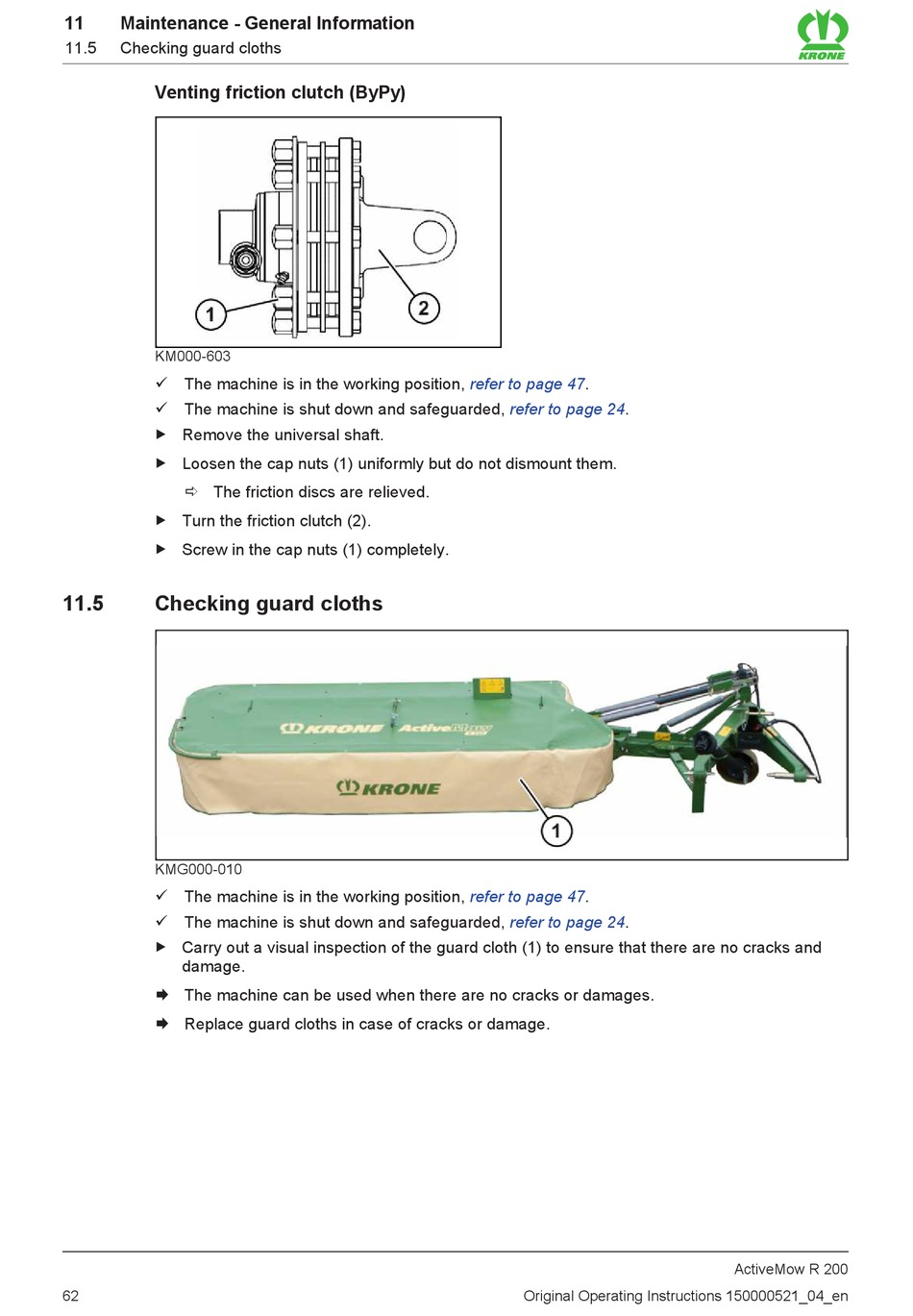

11
Maintenance - General Information
11.5
Checking guard cloths
Venting friction clutch (ByPy)
KM000-603
ü The machine is in the working position,
ü The machine is shut down and safeguarded,
Remove the universal shaft.
Loosen the cap nuts (1) uniformly but do not dismount them.
ð The friction discs are relieved.
Turn the friction clutch (2).
Screw in the cap nuts (1) completely.
11.5
Checking guard cloths
KMG000-010
ü The machine is in the working position,
ü The machine is shut down and safeguarded,
Carry out a visual inspection of the guard cloth (1) to ensure that there are no cracks and
damage.
Æ The machine can be used when there are no cracks or damages.
Æ Replace guard cloths in case of cracks or damage.
62
refer to
page 47.
refer to
page 24.
refer to
page 47.
refer to
page 24.
Original Operating Instructions 150000521_04_en
ActiveMow R 200
