Installation Guide
teleCARE IP
Mount the switch module on the backplate by first position the two latch fasteners of the backplate over
the two teeth on the inside of the lower edge of the cover plate (1). Next rotate the pull cord module up
to the backplate (2) so that the screws line up with the fixing posts on the back plate.
Press the pull cord module on to the backplate (making sure that the latch fasteners stay engaged) and
carefully tighten the two fixing screws. The screws should be tightened to apply just enough pressure on
the gasket to compress it evenly all around between the cover plate and the backplate.
Caution: Do not excessively tighten the fixing screws as this will distort the cover plate and
the foam gasket resulting in an ineffective waterproof seal.
17 July 2017 / Ver. PF3

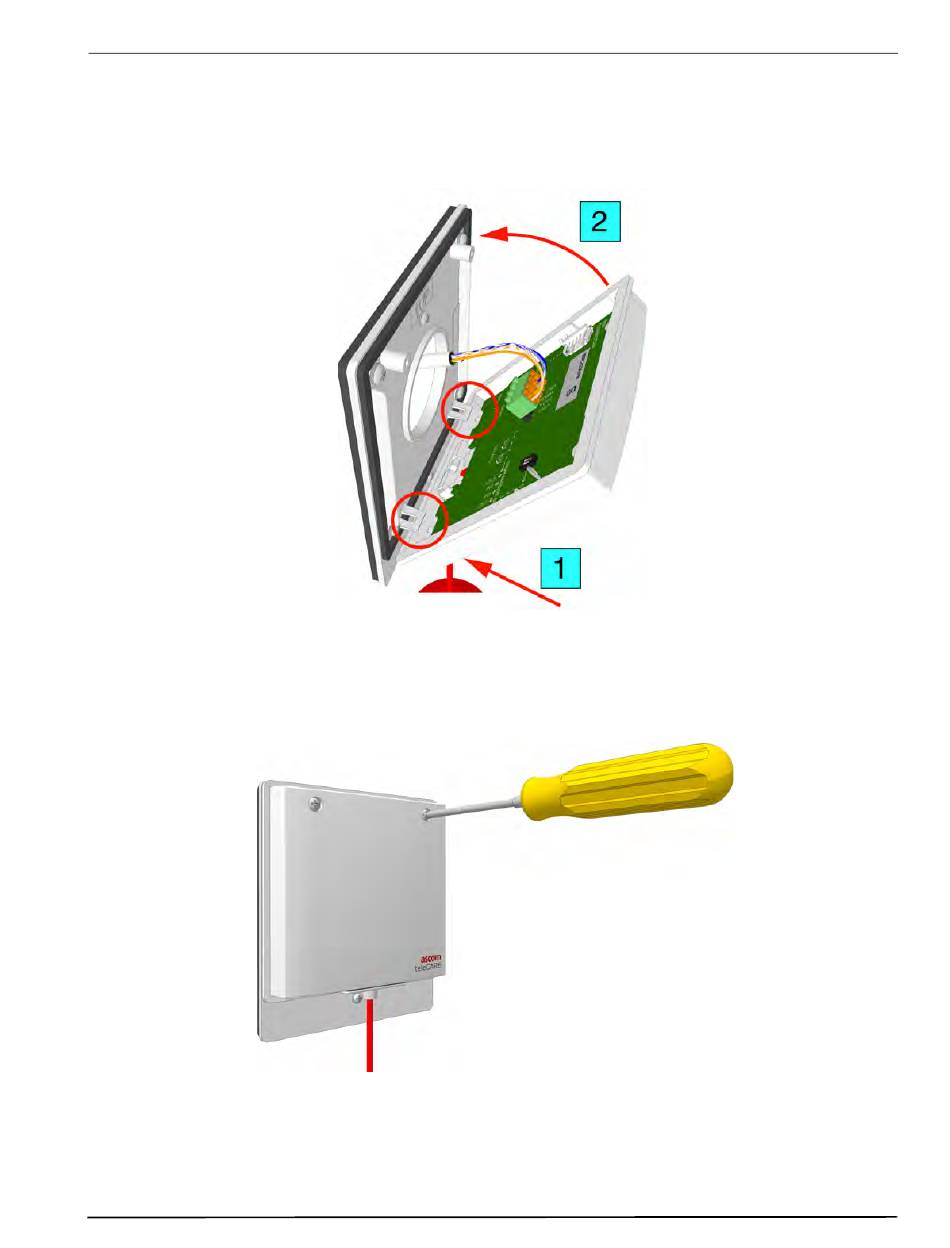

Figure 125. Mounting the switch module on the backplate
Figure 126. Tightening the pull cord fixing screws
TD 93021US
92
