8.7.7 NILF DIP Switch Settings

The NILF uses three sets of 8-pole DIP switches to set the ID, output power and transmission rate, master/
slave mode and the active location functionality.
NILF ID
DIP switches SW1 (1-8) and SW2 (1-4) are used to set the 12 bit ID code of the NILF.
* When the highest bit (bit 11) of the NILF ID is set the NILF will function as an active location beacon.
See "Beacon Mode" on page 183.
17 July 2017 / Ver. PF3
DRAFT
SW 2 - bit 8 to 11
SW 1 - bit 0 to 7

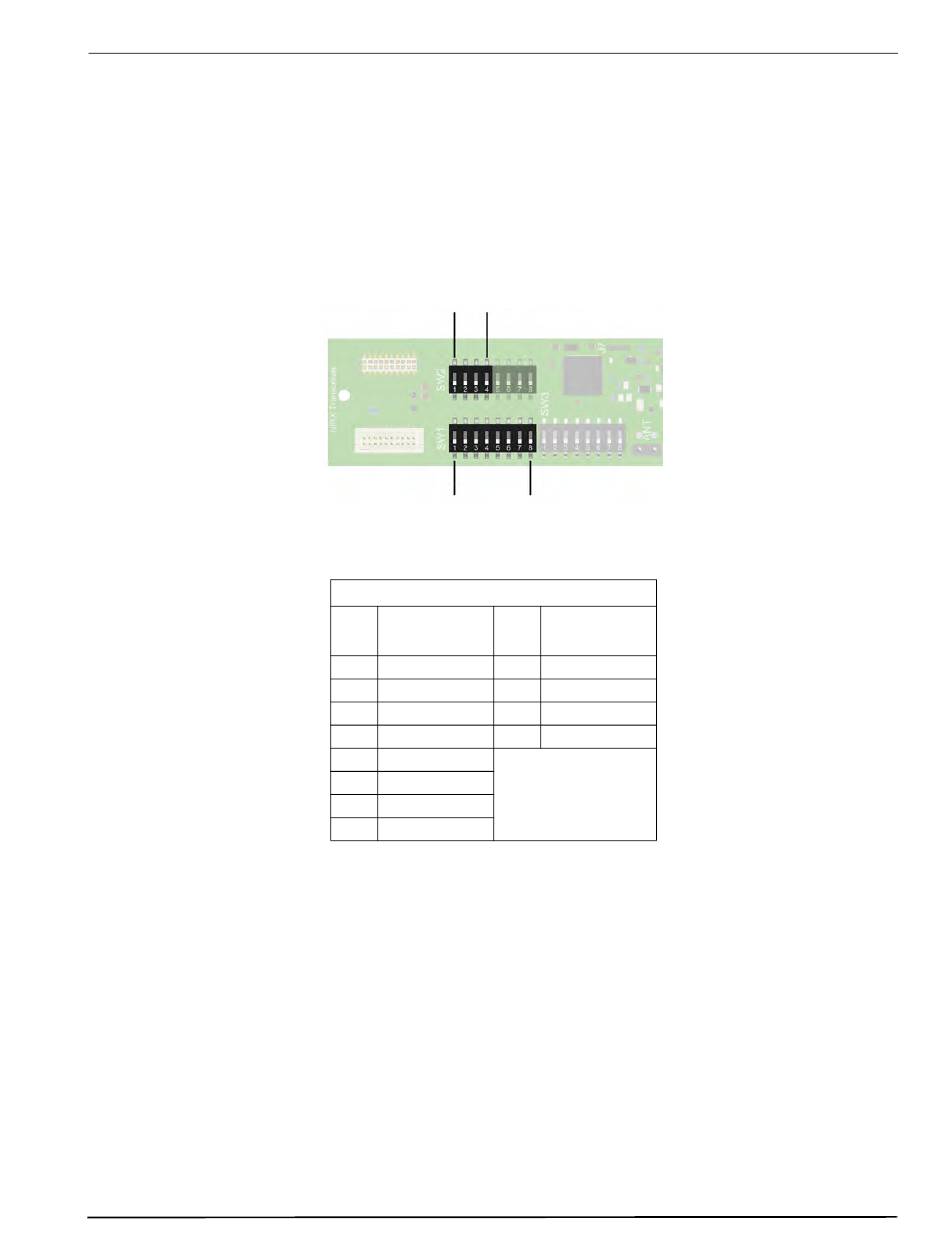

Figure 240. NILF 12 bit ID - DIP switch settings
NILF ID Settings
SW Low byte SW
1
1 Bit 0 1
2 Bit 1 2
3 Bit 2 3
4 Bit 3 4*
5 Bit 4
6 Bit 5
7 Bit 6
8 Bit 7
for detailed information.
High nibble
2
Bit 8
Bit 9
Bit 10
Bit 11
