6.10 Pull Cord Module - Passive (NIPC-XXP)

The Passive Pull Cord Module is intended for use in the teleCARE IP system, in areas such as bath-rooms
and toilets. It must be connected to the passive bus of a door side module or active pull cord cancel
module. When connected to the door side module, it can be combined with the passive toilet cancel
module on the same passive bus. The passive bus consists of four wires (see
Terminal on page
Note: Only one Passive Pull Cord Module can be connected per passive bus.
For assembly and attaching instructions for the pull cord refer to
Cord on page 79.
The Passive Pull Cord Module requires a single backplate which must be ordered separately. The
backplate enables this switch module to be mounted over different types of back boxes. Alternatively, a
spacer with installation kit is available for surface mounting.

6.10.1 Pull Cord Module (Passive) Electrical Connections

The passive pull cord module is a "passive peripheral" therefore it must be connected to the passive bus
of the linked door side module or active pull cord module by the 4-pole passive bus connector (see
4-Pole Connector Terminal on page
17 July 2017 / Ver. PF3

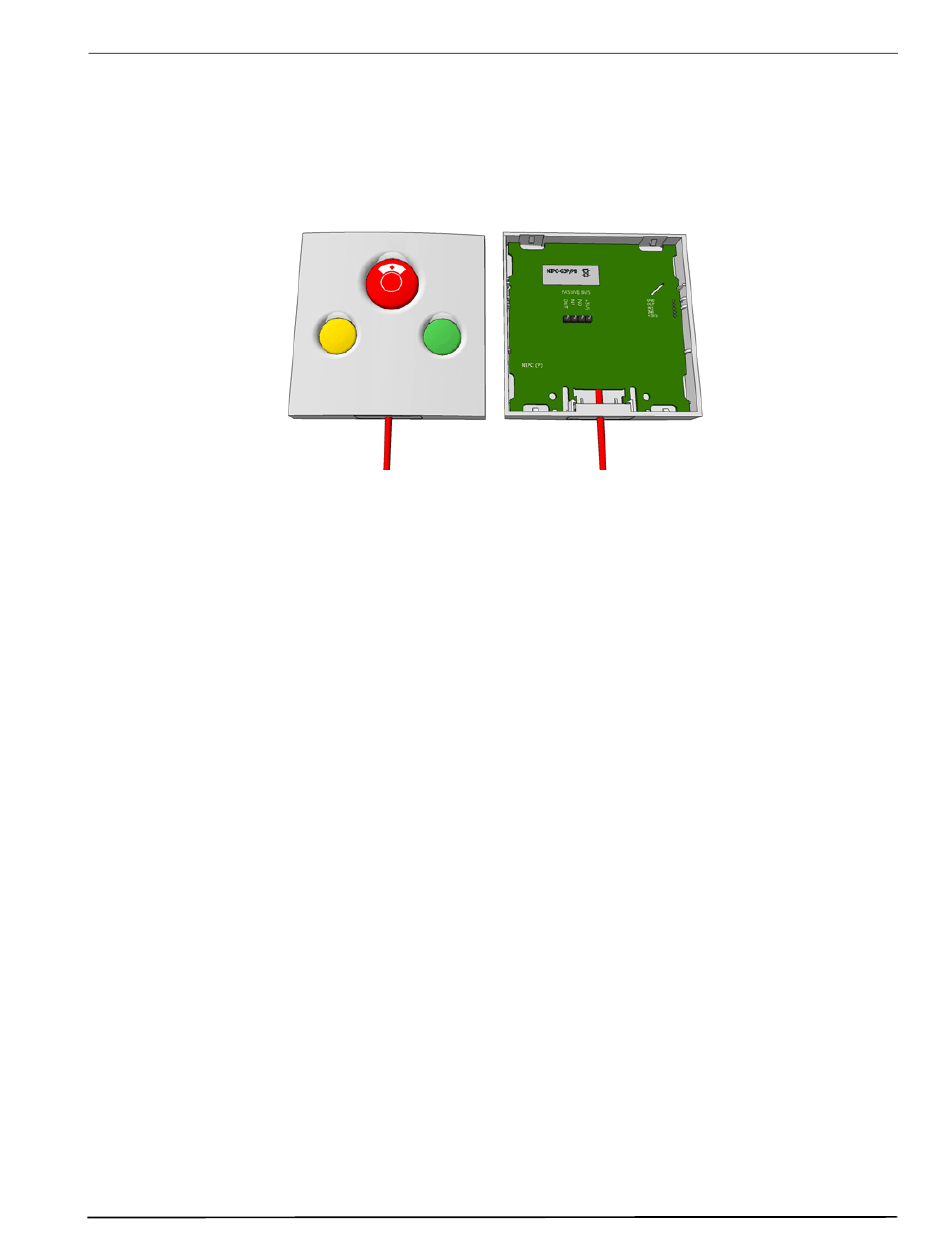

Figure 107. Passive pull cord module 3 buttons
