6.4.9 Dismantling a Switch Module from a Spacer

Insert the point of the screwdriver into the groove at the side of the switch module between the faceplate
and the spacer at about 0.40in (10mm) down from one of the top corners.
Gently push and turn the screwdriver until the switch module releases from the spacer.
Caution: Do not insert the screwdriver into the bottom corner of the faceplate.
17 July 2017 / Ver. PF3

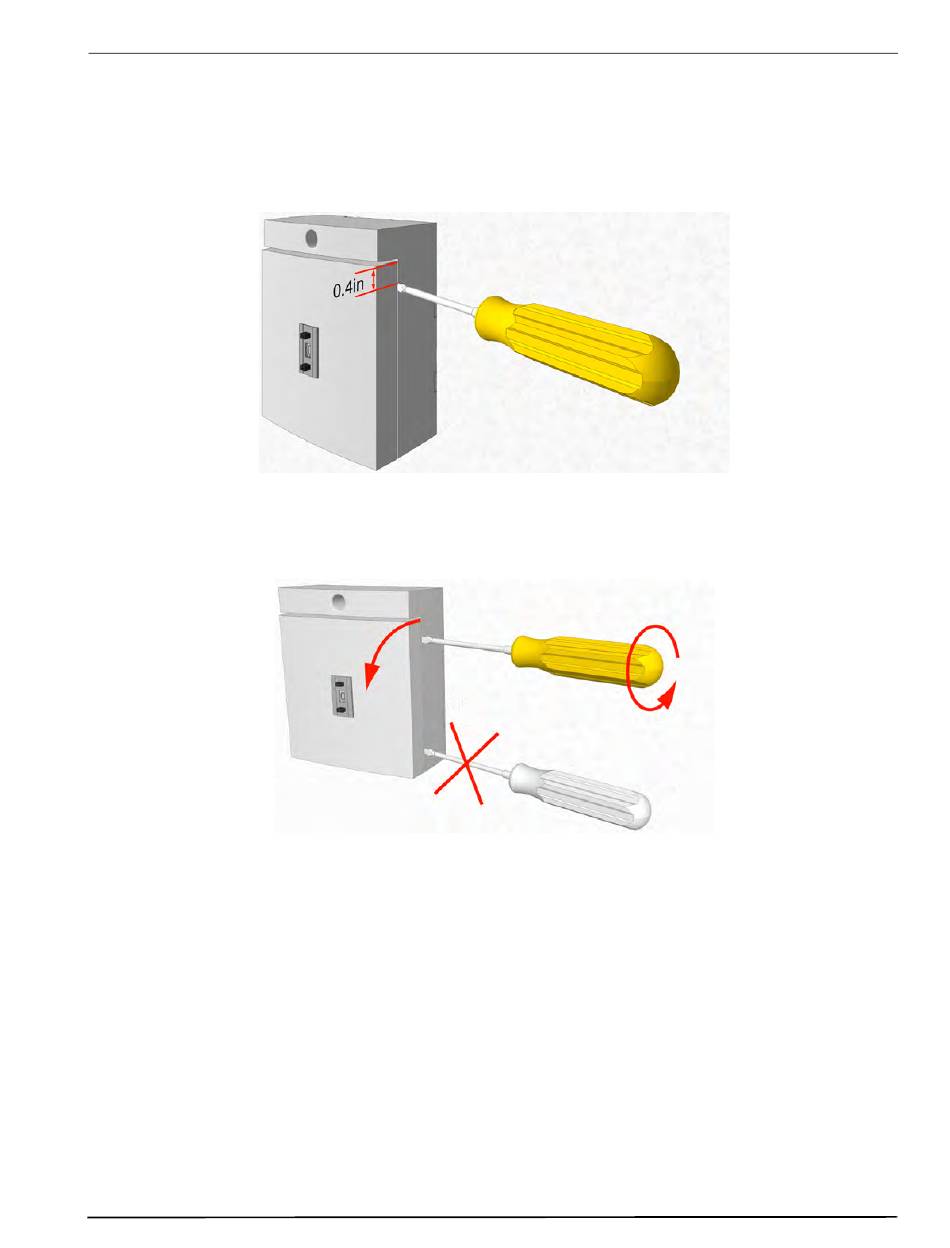

Figure 87. Inserting the screwdriver
Figure 88. Removing the switch module from the backplate
