Make sure the long sides are horizontal, then tighten the back box fixing screws to secure the housing.

5.2.8 Mounting the Housing without a Back box

The housing can be mounted on a flat surface, without a back box, using four suitable screws in the
outer fixing holes, as shown in the illustration below. When the room controller is surface mounted
without a back box the cables should enter and leave the housing through the two knock-outs in the
sides of the housing.
Caution: Do not distort the NIRC3 housing when it is mounted with or without a back box.
If the housing is distorted the top section will not fit properly and could fall off. To prevent
distortion only mount the NIRC3 housing on a smooth, level surface and do not over-tighten
the fixing screws!
17 July 2017 / Ver. PF3

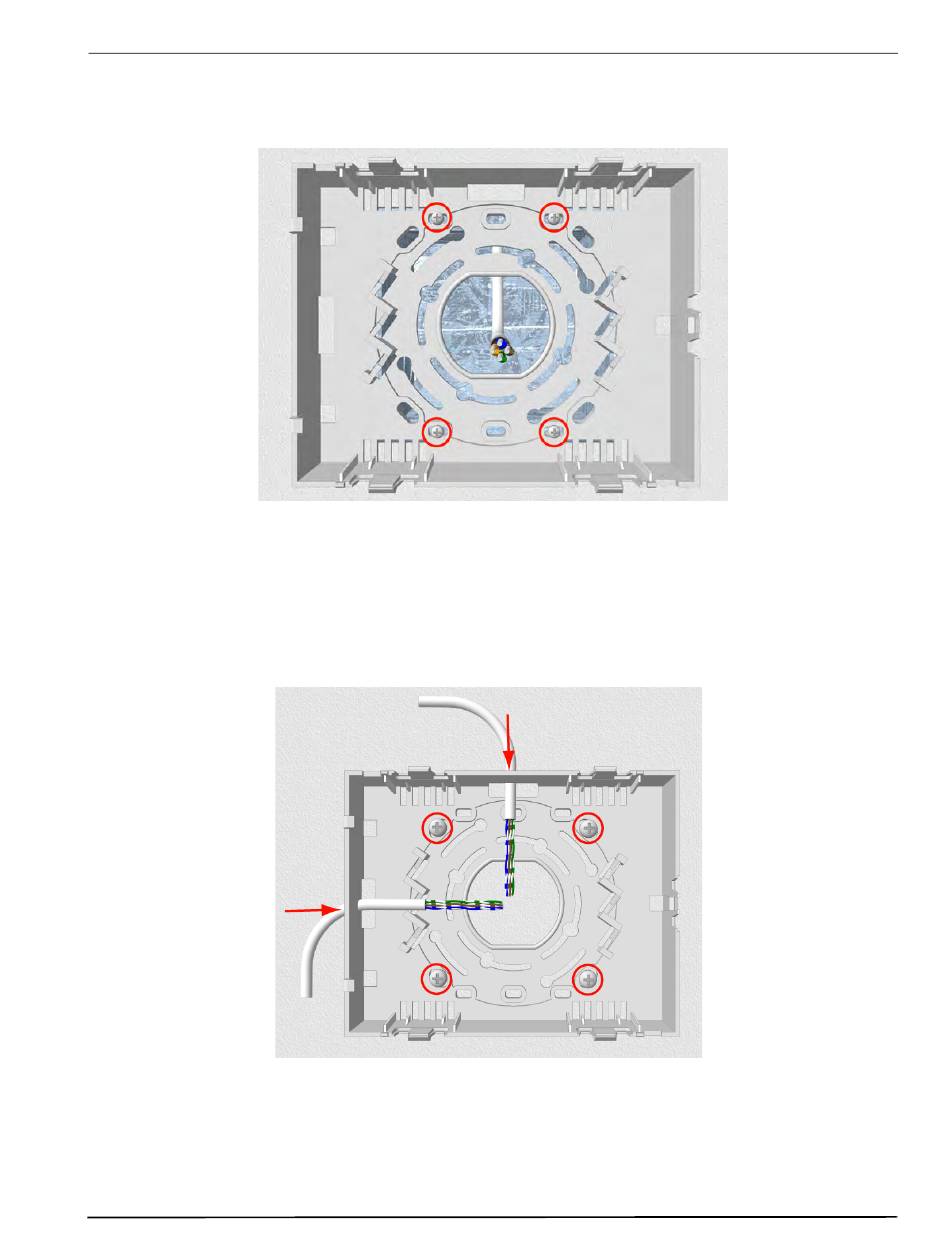

Figure 18. Fixing the housing
