Room Controller with Corridor Lamps (Master/Slave)

The example below shows the combination of a room controller and 2 corridor lamps. In the example
there are three resident rooms, each containing 3 beds and a toilet with shower.
One of the rooms is connected to the room controller and each of the other rooms is connected to a
corridor lamp. Each corridor lamp is connected to one of the room buses of the room controller.
17 July 2017 / Ver. PF3

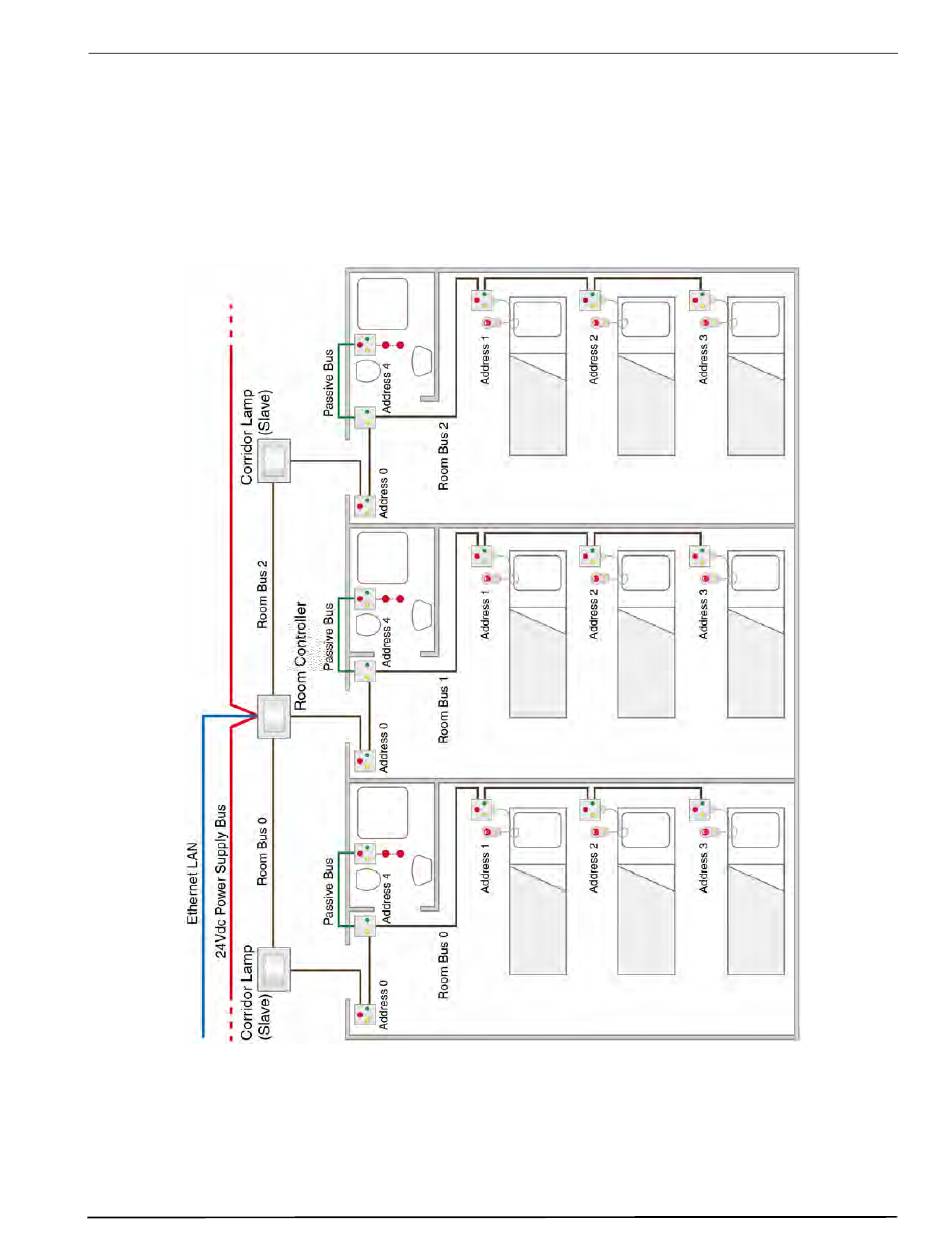

Figure 179. Room controller with corridor lamps installation
