Nuutx Window - Door Alarm Monitoring; Window - Door Alarm Monitoring - ASCOM teleCARE IP Installation Manual

Installation Guide
teleCARE IP
NUUTX components:
(1) Bracket for mounting the NUWIR on walls or window/door posts
(2) Battery lid
(3) Screws
(4) Case (lower halve) with circuit board mounted
(5) Location of magnetic field sensor
(6) Two 2-pole spring loaded wire clamp connectors for the connection of external
contacts
(7) Case (upper halve)

NUUTX Window - Door Alarm Monitoring

The NUUTX can be used to detect the state of a window or door using a (hall effect switch) which is
mounted on the NUUTX circuit board. The NUUTX can be mounted on a door or window post and a
magnet can be mounted on the door or window which should be aligned to the center of the NUUTX as
shown in the picture below.

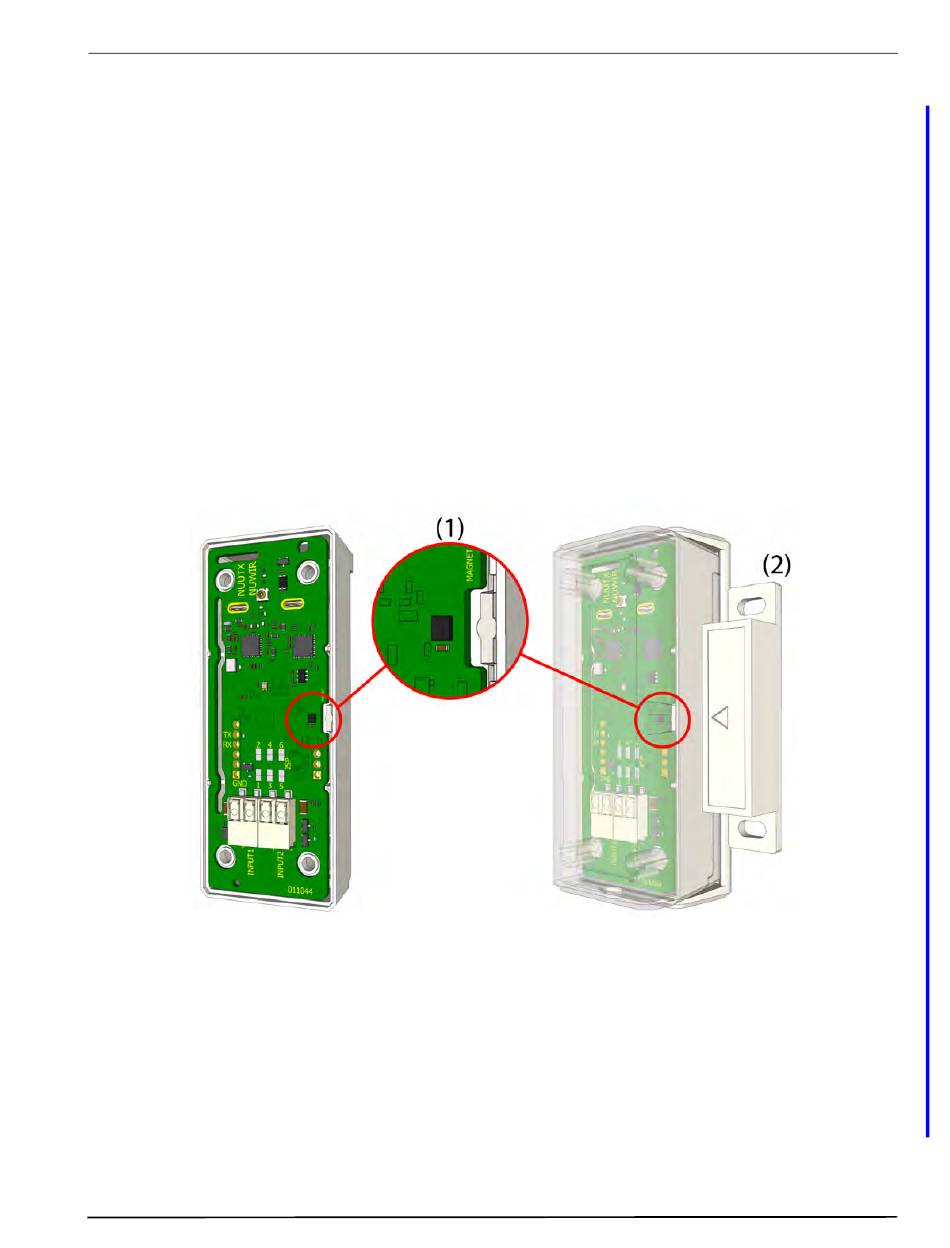

Legend:
(1) Hall effect switch for detecting the magnetic field of the magnet
(2) Magnet mounted on the door or window aligned to the center of the NUUTX at the
side of the hall effect switch
Note: For windows or doors that open in the opposite direction, the NUUTX can be rotated
180 degrees to make sure that the magnet is aligned to the side of the NUUTX where the
hall effect switch is mounted on the circuit board.
17 July 2017 / Ver. PF3
DRAFT
Figure 215. Window - door alarm monitoring.
TD 93021US
163
