8.7.14 (3) Slide the battery lid back into place until it snap fits.NUUTX NUWIR Mounting
Instructions
The NUUTX and the NUWIR are designed to be mounted on walls or onto window/door posts. They can
be mounted both vertically and horizontally.
Place the NUUTX NUWIR onto a post or the wall and mark the holes for drilling with a sharp pencil. The
NUWIR should be placed at approximately 4 feet (1.2 meters) from the ground, the NUUTX can be placed
wherever suitable.
Screws with a diameter of 1/8 in. (3.8mm) should be used to mount the NUUTX NUWIR to the window/
door post or the wall. Two suitably sized holes should be drilled at the marked spots. In a wooden post
holes should be drilled that are slightly smaller than the size of the screws that are used. When mounting
the NUUTX NUWIR on a wall, holes should be drilled that accept a suitable wall plug for using screws
with a diameter of 1/8 in. (3.8mm).

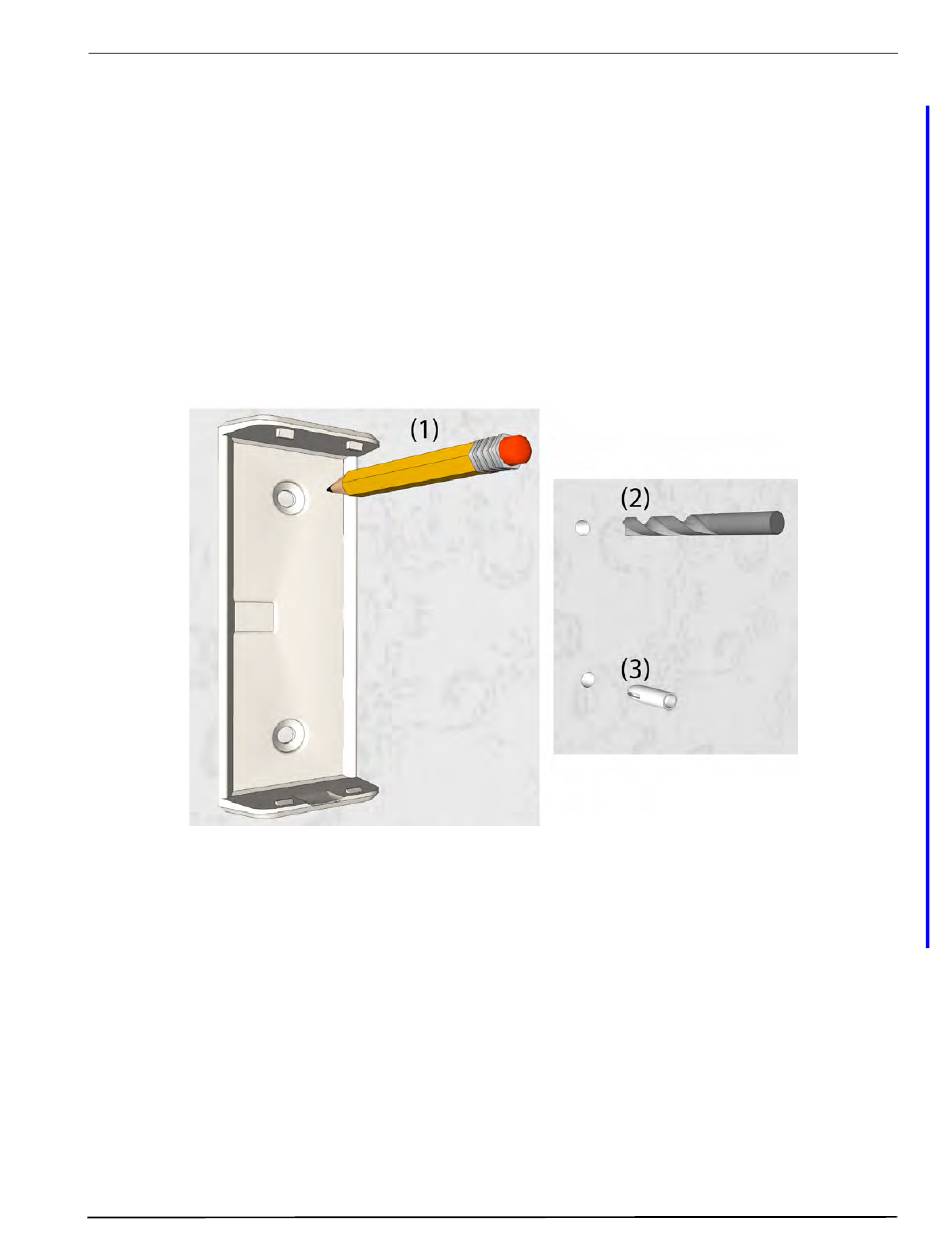

(1) Mark the holes for drilling with a sharp pencil
(2) Two holes must be drilled in the wall surface
(3) Suitable wall plugs must be fitted if required
17 July 2017 / Ver. PF3
DRAFT
Figure 223. Mark the location of the mounting holes
