Installation Guide
teleCARE IP
Antenna Connection
The 2-pole antenna connection (J3) is connected to the internal LF antenna.
External Connections
The 8-pole external connector (J2) has connections for a second beacon (used for range extending in a
master/slave configuration), a galvanically separated tamper alarm relay output, the internal battery and
connection of an alternative external 24Vdc power supply.
External Connector
1
2
3
4
5
6
7
8
For master / slave connection
For tamper alarm relay connection
For 24Vdc external power supply, use only a certified ECS power supply (see Section 4.).
17 July 2017 / Ver. PF3
DRAFT

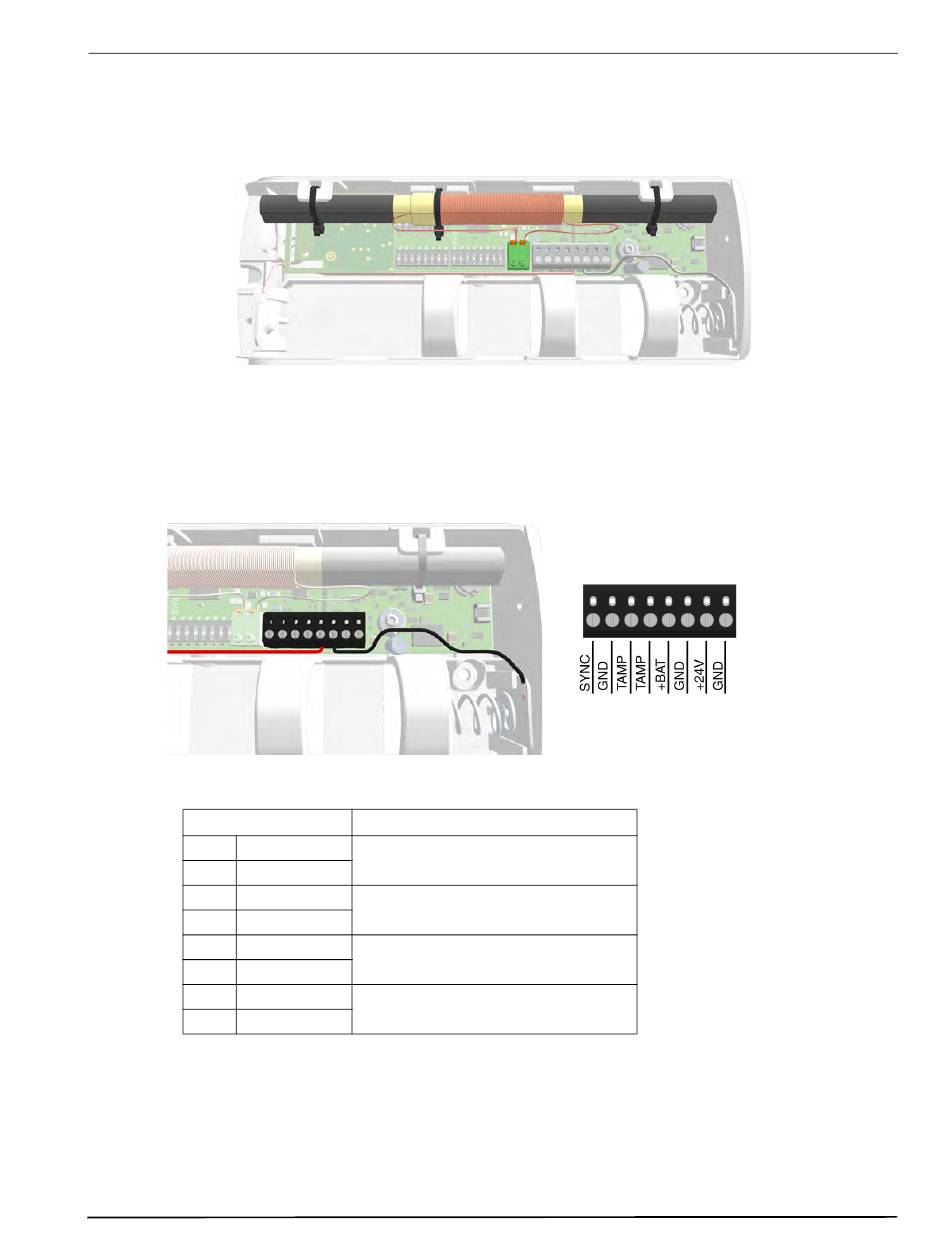

Figure 238. NILF internal antenna connected
Figure 239. External connections - J2
Master / Slave interconnection
SYNC
Beacon synchronization
GND
TAMP
Tamper alarm relay output
TAMP
(galvanically separated)
Battery connection
+BAT
GND
+24V
External 24Vdc power supply
GND
connection
see "Master / Slave Beacon Interconnection" on page
see "Tamper Alarm" on page
Description
TD 93021US
182.
184.
179
