6.13.1 Duty Selector Electrical Connections

The duty selector is an "active peripheral" therefore it must be connected to one of the four room buses
of a teleCARE IP room controller by the 4-pole room bus connector. It has the fixed room bus address of
5 and this address cannot be changed.
Note: The 4-pole connector terminals required for the room bus and the inputs are not
supplied with the duty selector. They are available as accessories and must be ordered
separately.
17 July 2017 / Ver. PF3
4-Pole
Connector
for Room
Bus
Test
LED

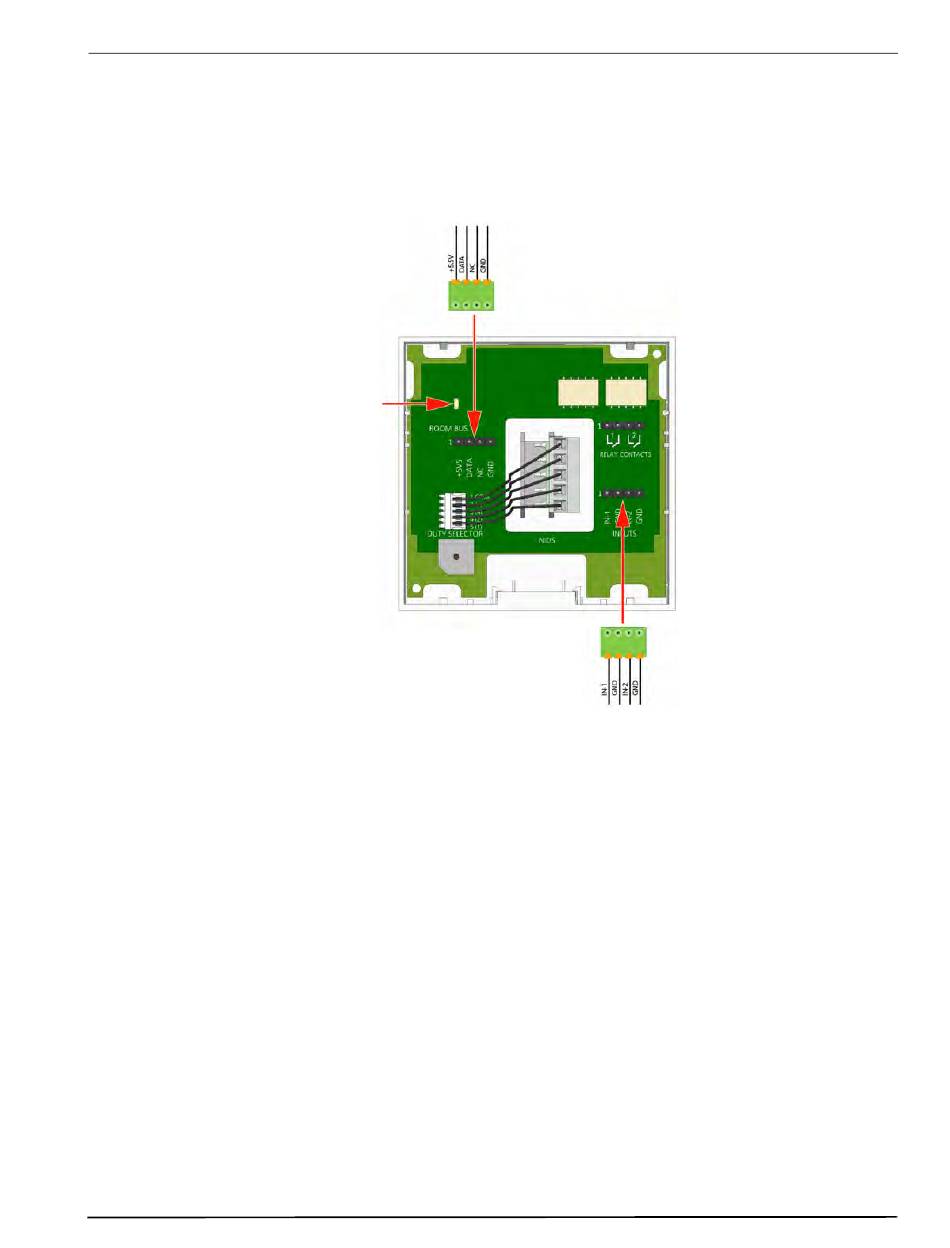

Figure 129. Duty selector electrical connections
Auxiliary
Inputs
1 & 2
