8.7.5 NIRX teleCARE IP Transceiver

The NIRX transceiver is a printed circuit module which is piggy back mounted on the NIRC3 room
controller and the NIFX fixed transceiver. The NIRX will adds wireless call functionality to the NIRC3 room
controller and the fixed transceiver. Optionally the NIRX can also be mounted on the NILF location beacon
for actively monitoring the state of the NILF, such as tamper and low battery alarm conditions.

8.7.6 Connecting the Transceiver Module

The NIRX is piggyback mounted on the NIRC3 room controller, on the NIFX fixed transceiver and on the
NILF low frequency beacon printed circuit boards:
Figure 201. Piggyback mounting of the transceiver module on the NIRC3 and NIFX
Note: The NIFX is delivered with an NIRX mounted from the factory.
17 July 2017 / Ver. PF3
DRAFT

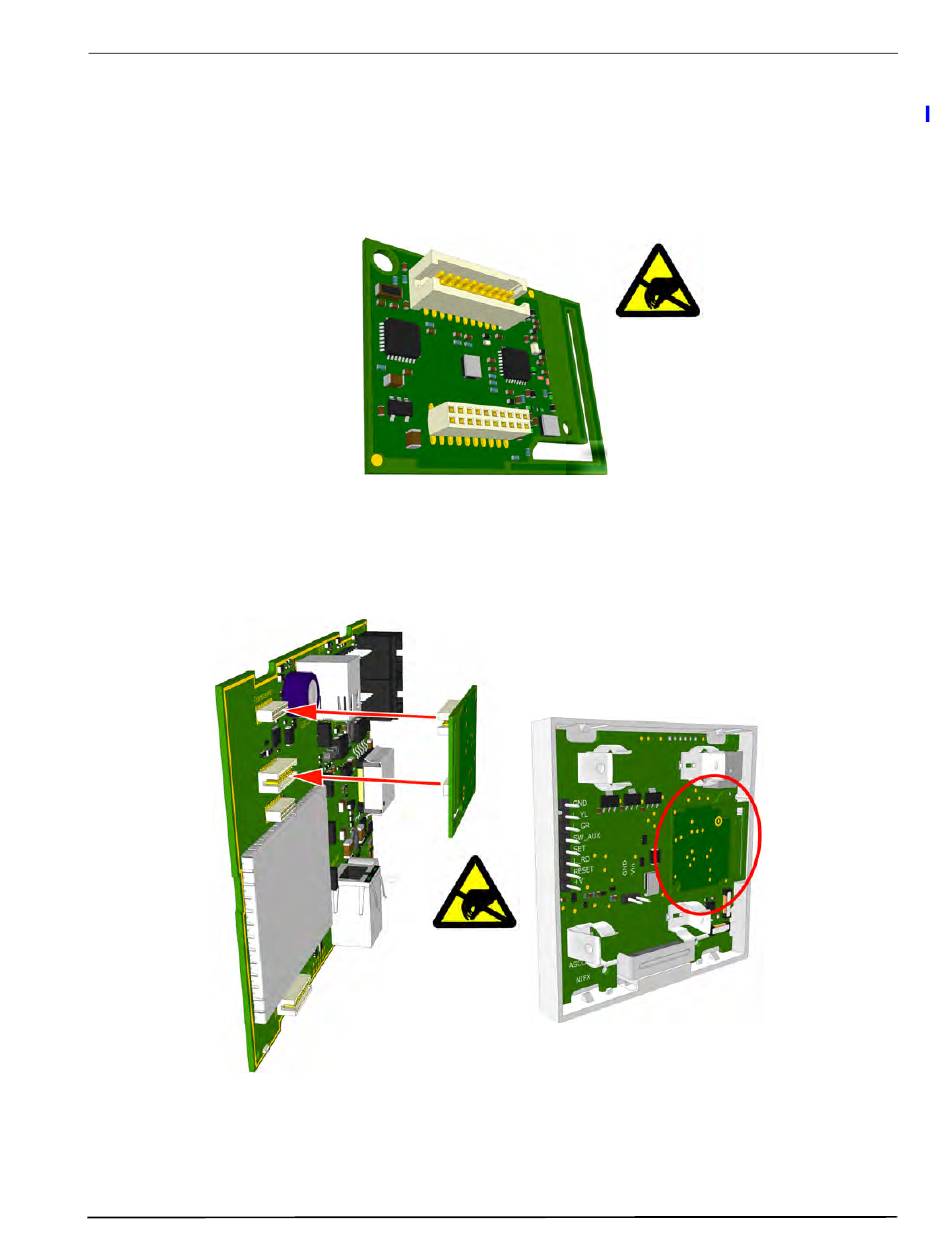

Figure 200. Transceiver piggyback module (NIRX)
