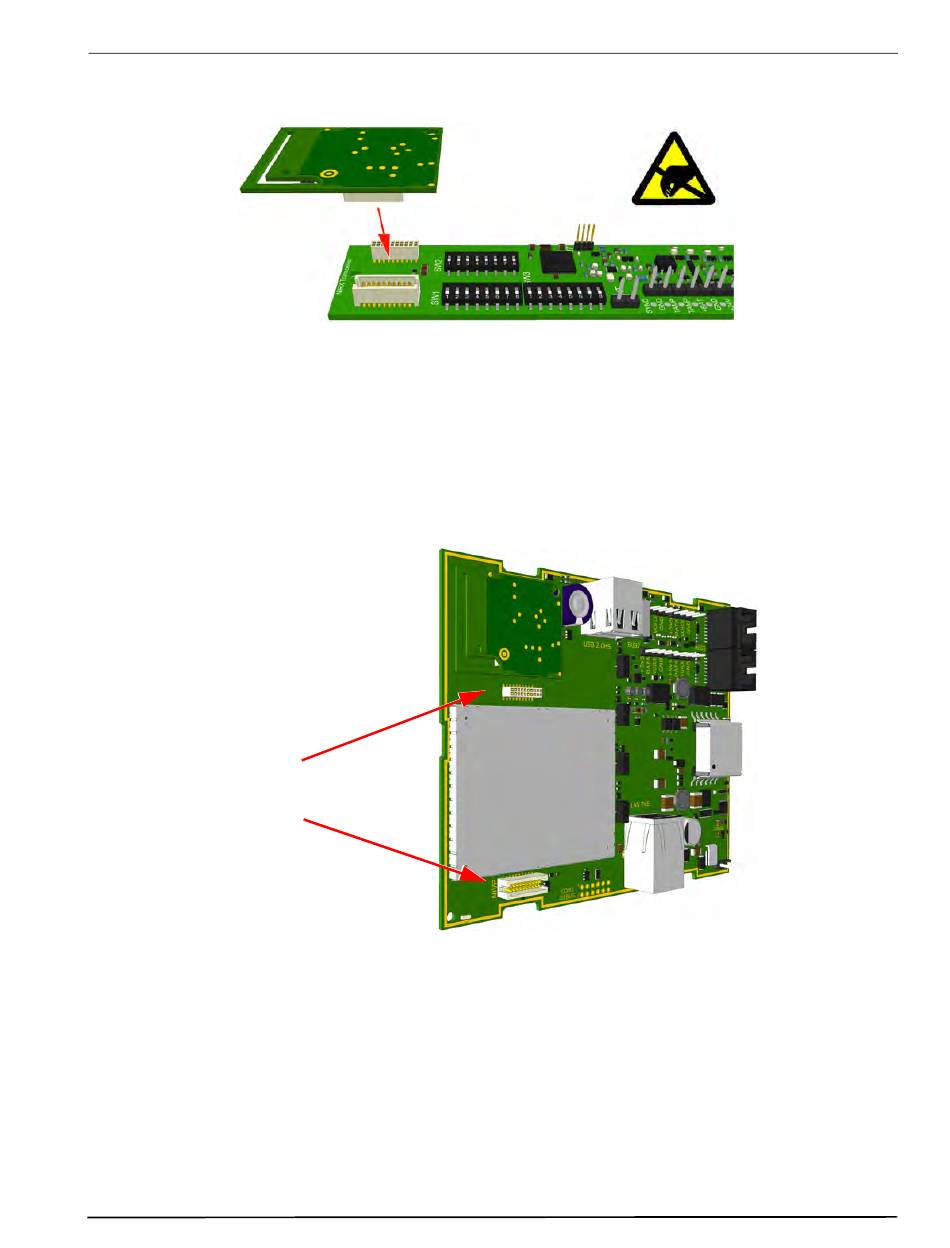

Figure 202. Piggyback mounting the transceiver module on the NILF
8.7.7 NIVP Voice Piggyback Module
The NIRC3 can be extended with an optional voice piggyback module (NIVP) to include speech and with
an optional transceiver module (NIRX) for wireless functionality.
Connecting the NIVP Module
The NIVP is piggyback mounted on the NIRC3 room controller, plugging into the two connectors:
Voice piggyback (NIVP)
extension connectors
17 July 2017 / Ver. PF3
DRAFT
NILF
NIRC3
Figure 203. Voice piggyback (NIVP) extension connectors
Optional
TD 93021US
155
