Installation Guide
teleCARE IP

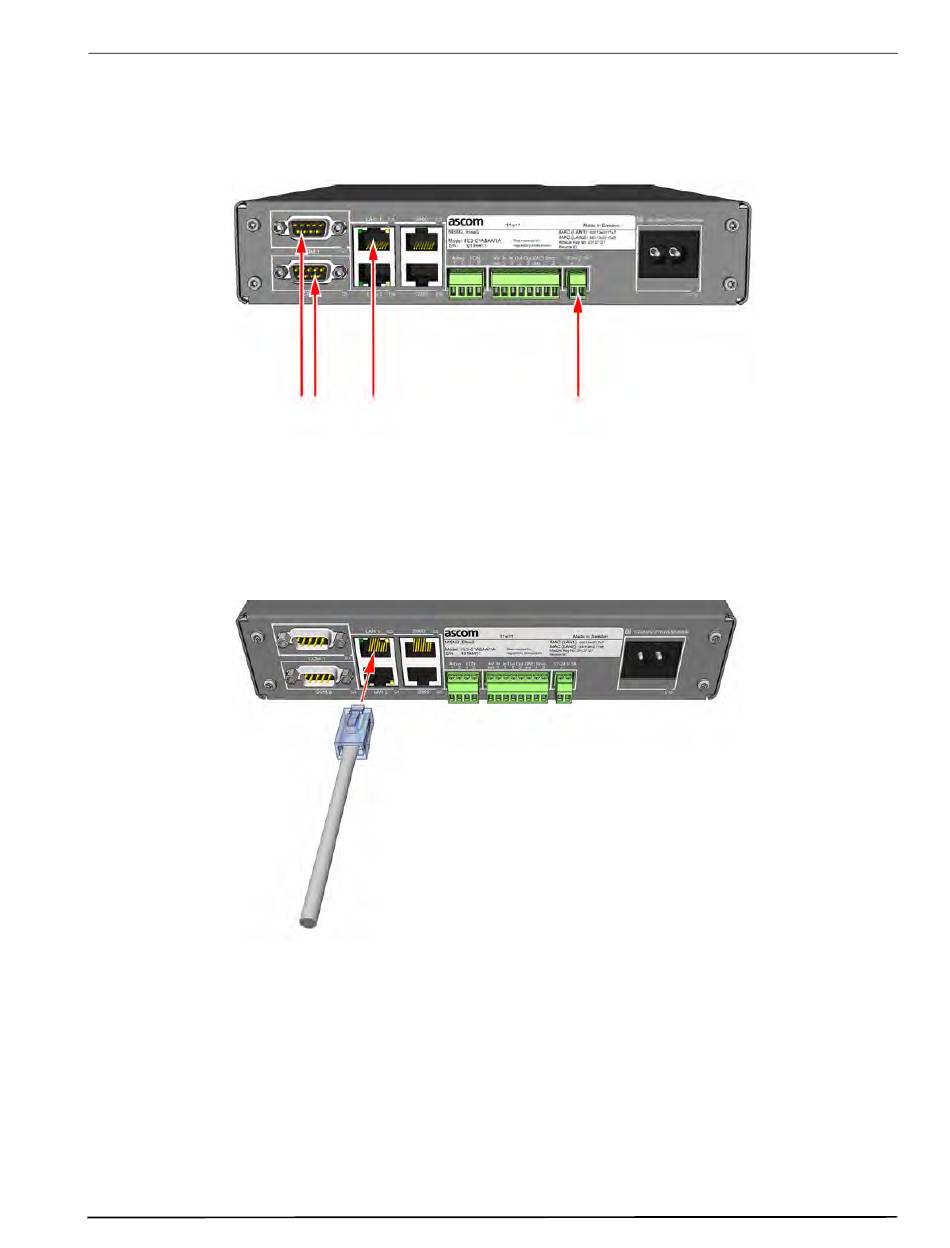

5.9.1 NISM2 Electrical Connections
The following illustration shows the appropriate electrical connections for teleCARE IP applications:
Note: All other connections are not used in teleCARE IP applications.
5.9.2 Ethernet LAN Cable
Connect the Ethernet LAN cable to the "LAN 1" port.
17 July 2017 / Ver. PF3
COM
Ethernet
Ports
LAN
Figure 68. NISM electrical connections
10baseT/100base T
Ethernet LAN
Connection
Figure 69. Connecting the Ethernet LAN cable
External Power
TD 93021US
52
