8.7.3 Wireless Gateway

The wireless gateway (NIRC3 + NUREP) is the interface between the wireless infrastructure and the
teleCARE IP central equipment (system manager). The wireless gateway is the central receiver receiving
the RF signals of the repeaters and the RF signals of the wireless devices that are in the direct vicinity of
the wireless gateway.

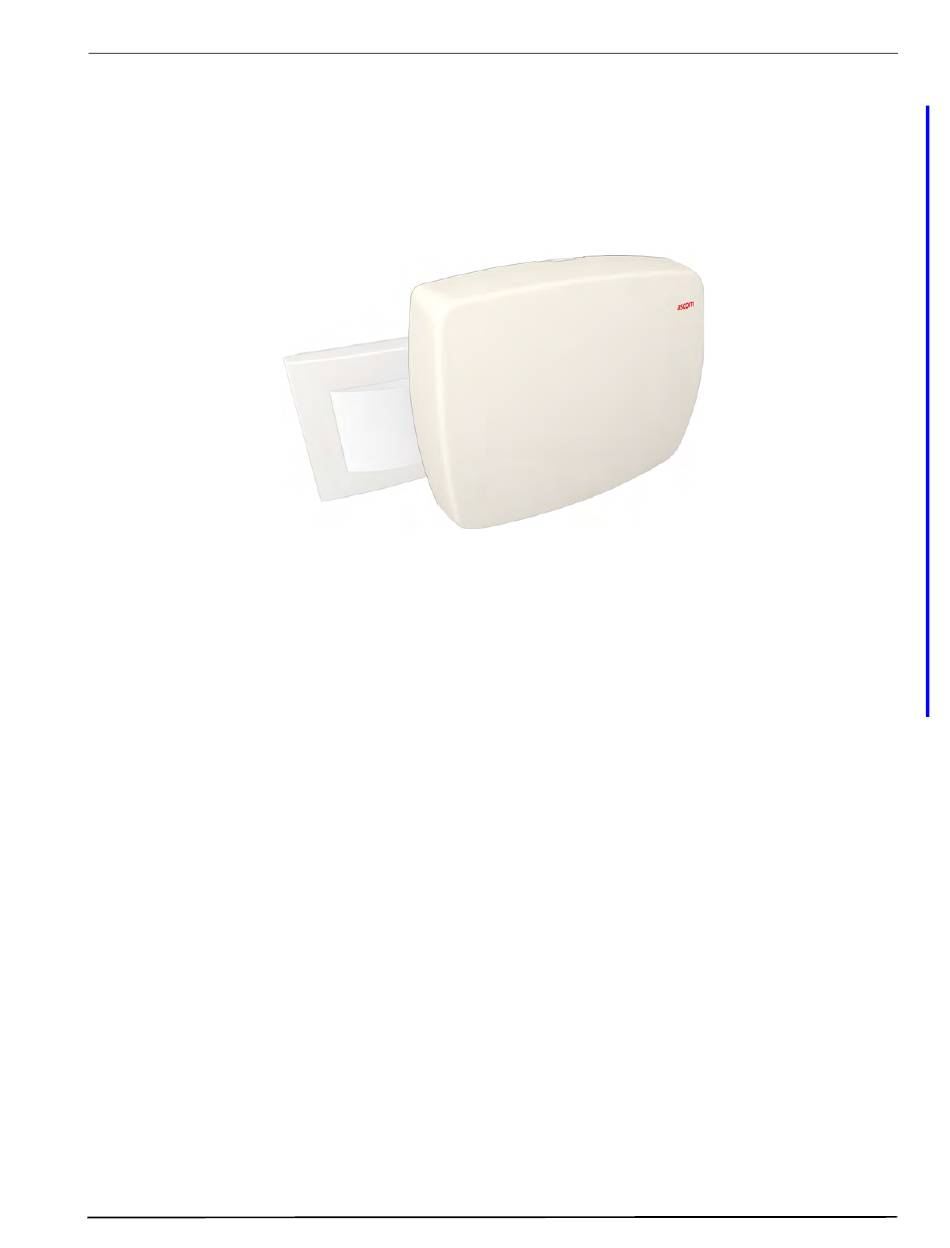

Figure 187. Wireless repeater consisting of an NIRC3 and a NUREP
The wireless gateway is a combination of two products:
• The repeater (NUREP). To receive the RF signals from the repeaters.
• A room controller (NIRC3) to relay the signals from the repeater to the local area network and the
system manager (NISM).
